Recall - Power Mirror Switch: Overview
No.: 717February, 1997
To: All Chrysler-Plymouth Dealers
Subject:
Safety Recall # 717 -- Power Mirror Switch
Models:
1996 Model Year Chrysler Sebring Convertible (JX) Vehicles Equipped With Power Mirrors Built Through June 20, 1996 (MDH 062007)
The power mirror switch electrical contacts on the above listed vehicles, may corrode due to water intrusion. This could result in an electrical short and possibly cause a fire. To correct this condition, the power mirror switch must be replaced.
IMPORTANT:
Some of the involved vehicles may be in dealer new vehicle inventory. Federal law requires you to complete this recall service on these vehicles before retail delivery. Dealers should also consider this requirement to apply to used vehicle inventory. and should perform this recall on vehicles in for service as determined by using DIAL System Function 70.
Details of this service action are explained in the following sections.
Service Procedure Videotape
No videotape of the service procedure for this recall will be provided.
Dealer Notification & Vehicle List
Involved dealers:
Each dealer to whom involved vehicles were invoiced (or the current dealer at the same street address) will receive a copy of this dealer recall notification letter and a list of the involved vehicles by first class mail.
The Vehicle List is arranged in Vehicle Identification Number (VIN) sequence. Owners known to Chrysler are also listed. The lists are for dealer reference in arranging for service of involved vehicles.
All other dealers:
Each Chrysler-Plymouth dealer who does not receive a Vehicle List will receive a copy of this dealer recall notification letter by first class mail.
DIAL System Functions 53, 70 and VIP
All involved vehicles will be entered to DIAL System Functions 53, 70 and VIP at the time of recall implementation for dealer inquiry as needed.
Parts
Important:
A quantity of parts will be distributed initially and billed to all involved dealers. This quantity will cover a portion of the total vehicles involved. Additional parts may be ordered as needed to support customer demand.
Each involved dealer, to whom vehicles in the recall were invoiced (or the current dealer at the same street address), will receive enough of each Switch Package to service about 25% of those vehicles.
Dealers should determine which parts package is required for each vehicle at the time appointments are scheduled to assure that the correct parts package is available when the customer arrives. The appropriate power mirror switch for the vehicle to be serviced may be determined by:

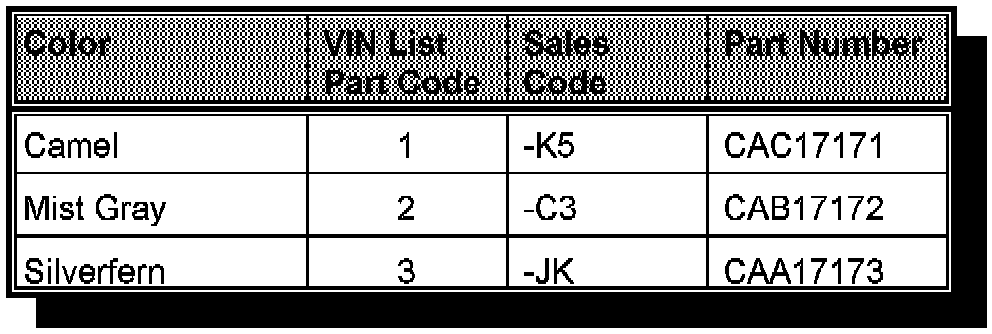

^ Using the part code in the third column of the VIN list along with the table above (involved dealers),
^ Using VIN lists electronically transmitted to DIAL System Function 53 (involved dealers) or
^ Entering the VIN to DIAL System Function 69 or VIP (sales code information) along with the table (all dealers).
Each parts package contains the following components:
Quantity Description
1 Switch, Power Mirror
1 Instruction Sheet
Owner Notification and Service Scheduling
All involved vehicle owners known to Chrysler are being notified of the service requirement by first class mail. They are requested to schedule appointments for the service with their dealers. A copy of the owner notification letter is included.
Enclosed with each owner notification is an Owner Notification Form. The involved vehicle and recall are identified on the form for owner or dealer reference as needed.
