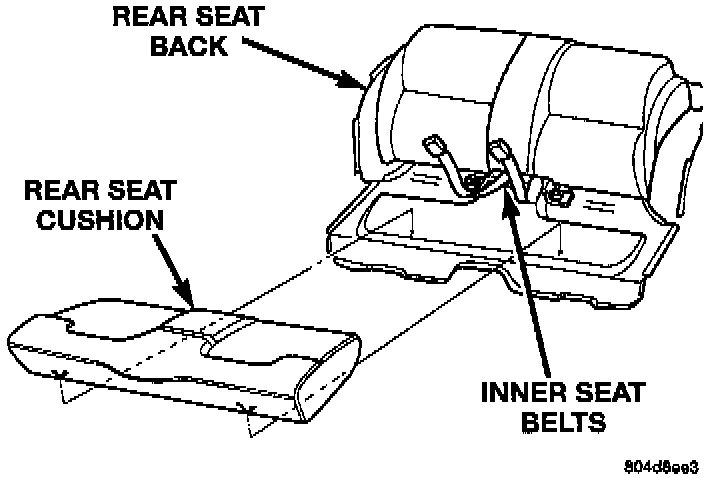

Rear Seat Cushion

NOTE: Special care should be taken when removing rear seat cushion to prevent damage to the cushion frame. Remove cushion at attachment areas, not at wing area.

Rear Seat Cushion:

REMOVAL
1. Push firmly rearward and upward at one attachment point and disengage wire loops from retainers in floor pan.
2. Repeat for other attachment point.
3. Separate rear seat cushion from vehicle.

INSTALLATION
1. Position rear seat cushion in vehicle.
2. Place inner seat belts on top of seat cushion.
3. Push seat cushion rearward and align wire loops to retainers in floor pan.
4. Push rear seat cushion firmly downward and engage wire loops to retainers in floor pan.
