Convertible Top Storage

RIGHT OR LEFT REMOVAL
1. Raise and secure convertible top.
2. Remove tack strip trim panel as necessary to access slots in convertible top storage area.

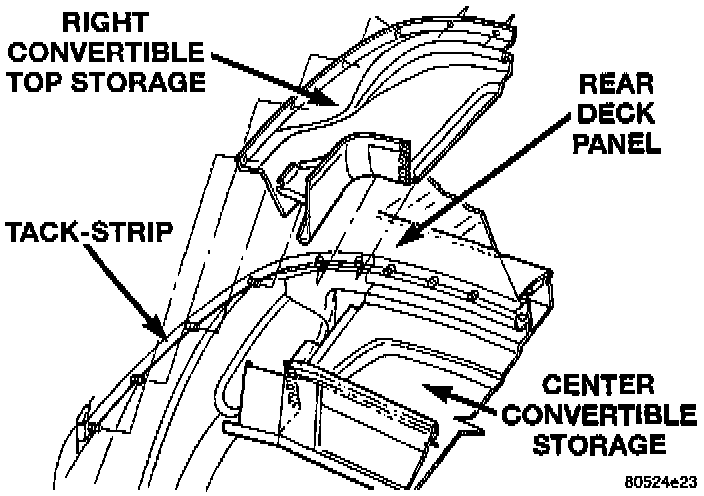

Right/Left Convertible Top Storage:

3. Disengage slots in right/left convertible top storage area from studs along tackstrip.
4. Separate right/left storage area from vehicle.

INSTALLATION
1. Position right/left convertible top storage area in vehicle.
2. Engage slot in right/left storage area to studs along tackstrip.
3. Install tack strip trim panel.

CENTER REMOVAL
1. Raise and secure convertible top.
2. Remove tack strip trim panel as necessary
3. Remove right and left convertible top storage area sections.

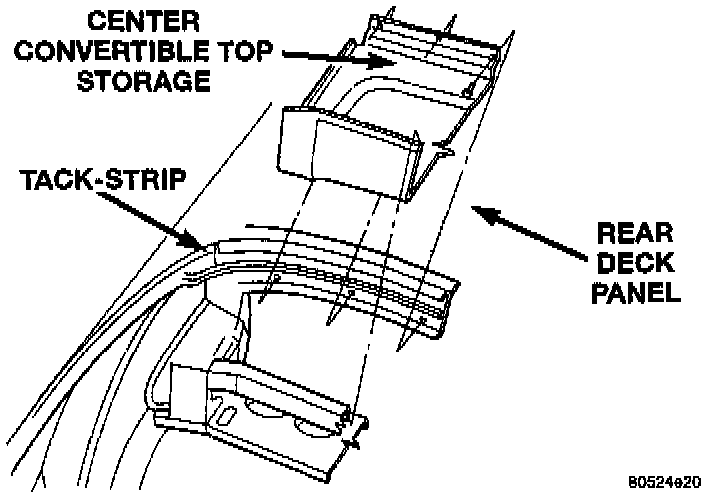

Center Convertible Top Storage:

4. Remove push-in fasteners holding center convertible top storage section to rear of storage area.
5. Pull rear of center storage area upward and disengage front of center storage area from beauty bar.
6. Separate center storage area from vehicle.

INSTALLATION
1. Position center convertible top storage area in vehicle.
2. Engage front of center storage area under beauty bar and push rear of center storage area downward into position.
3. Install push-in fasteners holding center convertible top storage section to rear of storage area.
4. Install right and left convertible top storage area sections.
5. Install tack strip trim panel.
