Electrical Diagrams

Power Top (Part 1 Of 3):




Power Top (Part 2 Of 3):

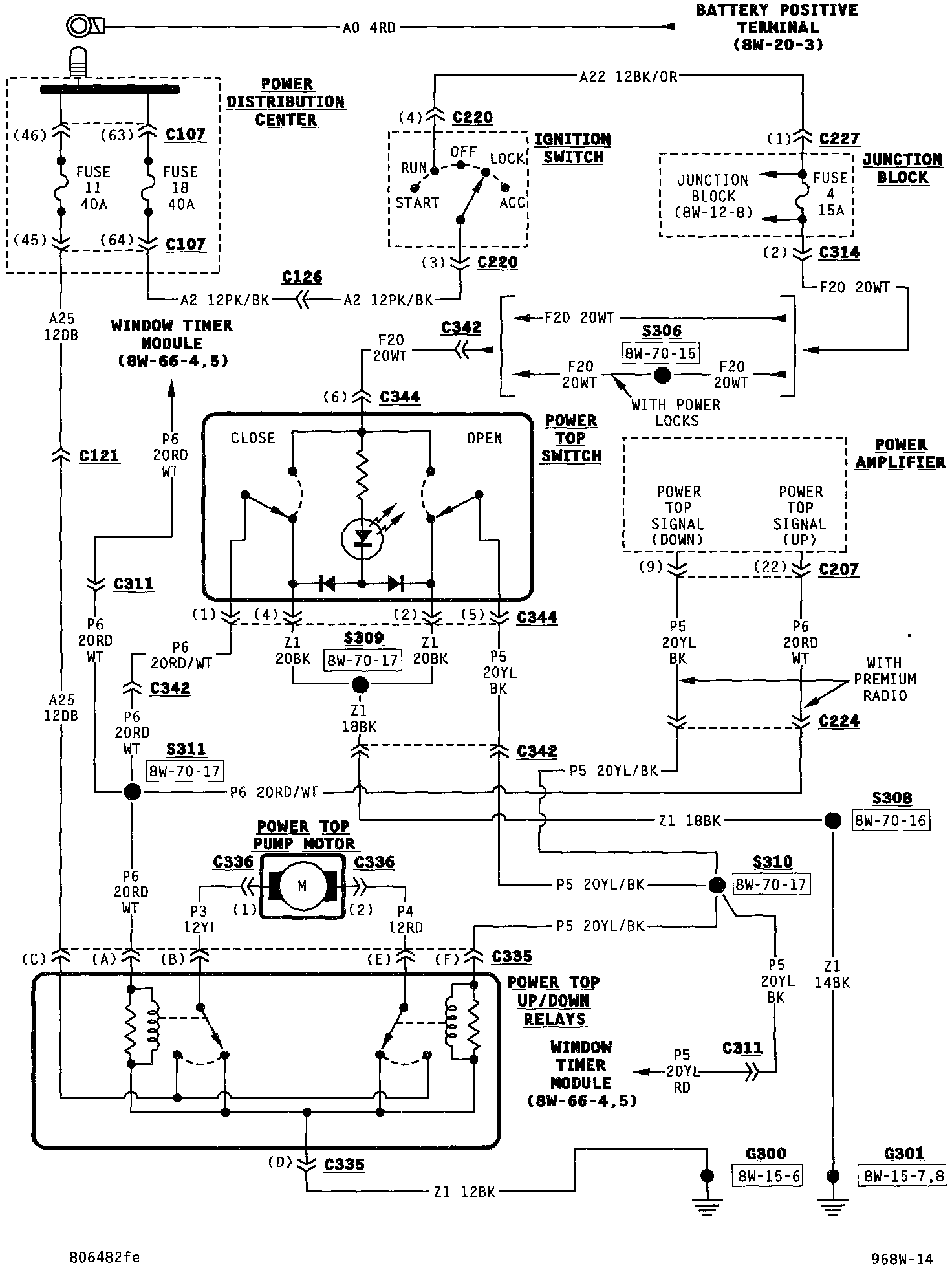

Power Top (Part 3 Of 3):






NOTE: To view sheets referred to in these diagrams, see Diagram Information and Instructions/Complete Body and Chassis Diagrams.
