Outside Rear View Mirror

SIDE VIEW MIRROR REMOVAL

Side View Mirror Cover:

1. Remove side view mirror cover.
2. If vehicle is equipped with power mirrors, remove the door trim panel.
3. Disengage power window mirror motor wire connector, if so equipped.
4. Disengage wire harness grommet from mirror flag, if so equipped.

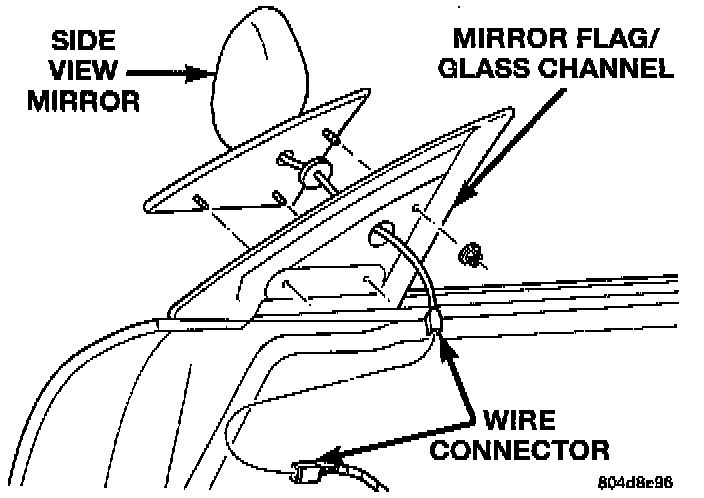

Side View Mirror:

5. Remove nuts holding side view mirror to mirror flag.
6. Separate side view mirror from vehicle.

INSTALLATION
1. Feed power mirror wire harness through hole in mirror flag and seat grommet. Do not pull on wire harness to seat grommet.
2. Position side view mirror to vehicle.
3. Install nuts holding side view mirror to mirror flag.
4. Engage push-in fastener holding power mirror wire connector to inner door panel, if so equipped.
5. Engage power mirror motor wire connector, if so equipped.
6. Install side view mirror cover.

SIDE VIEW MIRROR FLAG/DOOR GLASS CHANNEL REMOVAL
1. Remove side view mirror.
2. Remove door trim panel.
3. Remove door glass.
4. Remove door outer belt weatherstrip.

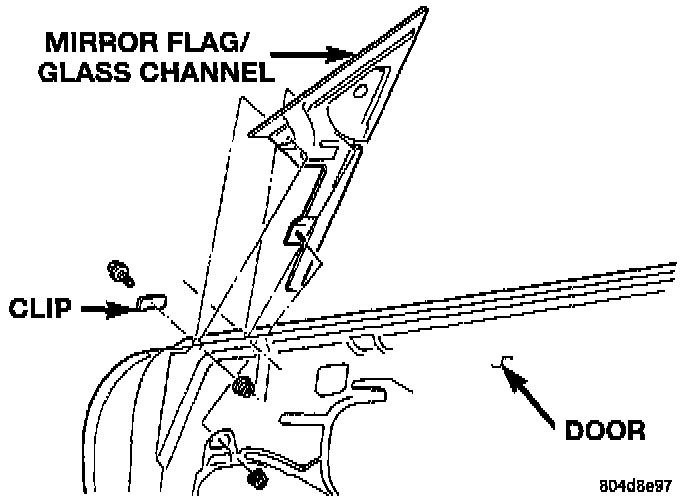

Side View Mirror Flag/Door Glass Channel:

5. Remove screws holding mirror flag/door glass channel to outer door panel.
6. Remove nut holding top of mirror flag/door glass channel to inner door panel.
7. Using a suitable allen-wrench, hold jack screw stationary while removing nut holding bottom of mirror flag/door glass channel to inner door panel.
8. Separate from vehicle and remove through opening in top of door.

INSTALLATION
1. If installing a new mirror flag/door glass channel, preset jack-screw using old flag/channel as a reference.
2. Position mirror flag/door glass channel on vehicle.
3. Using a suitable allen-wrench, hold jack screw stationary while installing nut holding bottom of mirror flag/door glass channel to inner door panel.
4. Install nut holding top of mirror flag/door glass channel to inner door panel.
5. Install screws holding mirror flag/door glass channel to outer door panel.
6. Install door outer belt weatherstrip.
7. Install door glass.
8. Install side view mirror.
9. Verify glass fit and operation. Adjust door glass as necessary
10. Install door trim panel.
