Door Lock Cylinder: Service and Repair

Door Lock Cylinder:

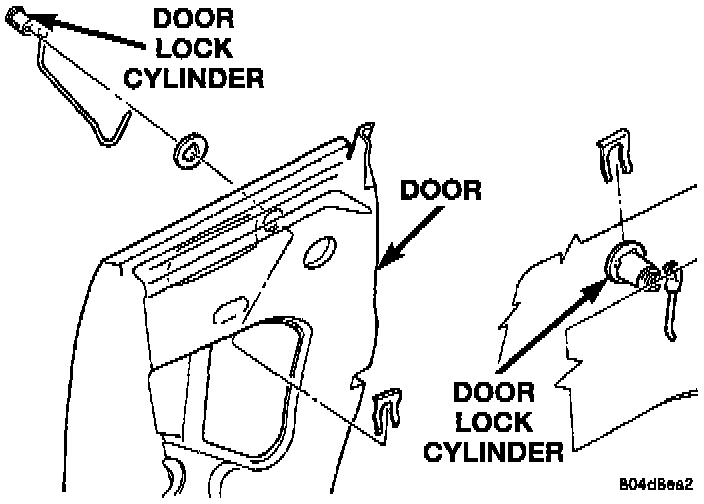

REMOVAL
1. Remove outside door handle.
2. Remove clip holding lock cylinder to outside door panel.
3. Disengage clip holding link to key cylinder.
4. Separate lock cylinder from outer door panel.

INSTALLATION
1. Position lock cylinder and gasket in door outer panel.
2. Install clip holding lock cylinder to outside door panel.
3. Engage link to key cylinder.
4. Install outside door handle.
