Sun Visor: Service and Repair

REMOVAL
1. Disengage sun visor from sun visor support.
2. Remove screws holding sun visor to header panel.
3. Disconnect lighted vanity mirror and universal garage door opener wiring, if so equipped.

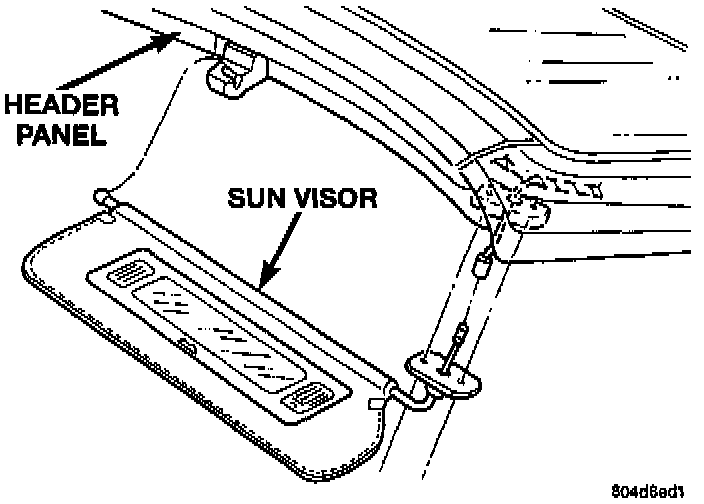

Sun Visor:

4. Separate sun visor from vehicle.

INSTALLATION
1. Position sun visor to vehicle.
2. Connect lighted vanity mirror and universal garage door opener wiring, if so equipped.
3. Install screws holding sun visor to header panel.
4. Engage sun visor to sun visor support
