Forward Instrument Panel Console

REMOVAL
1. Remove floor console.
2. Remove instrument panel (IP) cluster hood.
3. Remove instrument panel center bezel.
4. Remove left knee bolster.
5. Release glove box door catches and allow to hang downward.

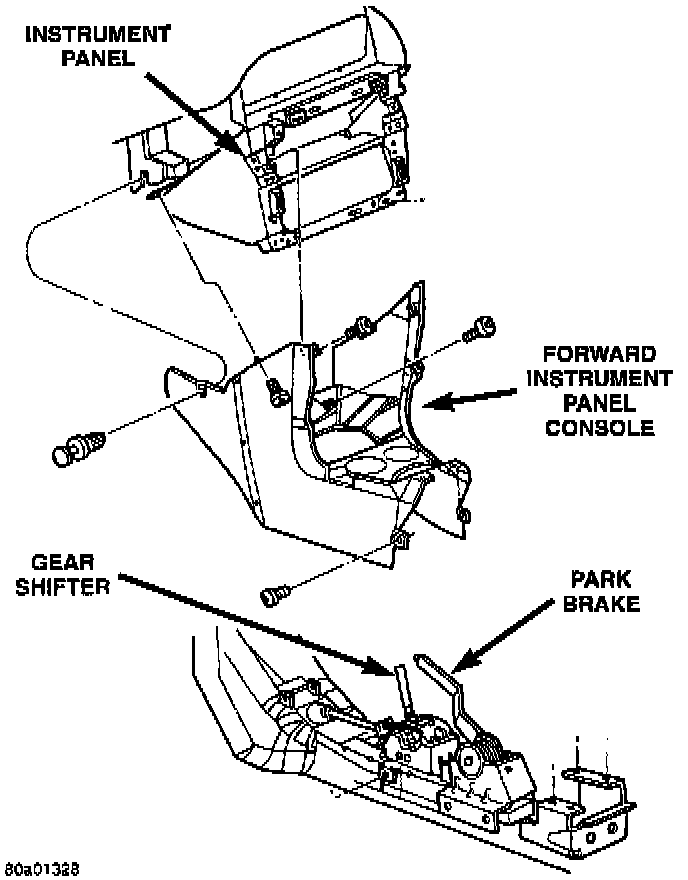

Forward Instrument Panel Console:

6. Remove screws holding storage bin to forward IP console.
7. Remove storage bin from forward IP console.
8. Remove screws holding forward IP console to shifter mounting bracket.
9. Remove screws holding forward IP console to instrument panel at sides of storage bin area.
10. Remove screws holding forward IP console to instrument panel support braces.
11. Separate forward IP console from vehicle.

INSTALLATION
1. Position forward IP console to vehicle.
2. Install screws holding forward IP console to instrument panel support braces.
3. Install screws holding forward IP console to instrument panel at sides of storage bin area.
4. Install screws holding forward IP console to shifter mounting bracket.
5. Install storage bin from forward IP console.
6. Install screws holding storage bin to forward IP console.
7. Release glove box door catches and allow to hang downward.
8. Install left knee bolster.
9. Install instrument panel center bezel.
10. Install instrument panel cluster hood.
11. Install floor console.
