Floor Console

REMOVAL
1. Raise parking brake lever as high as possible.
2. Move transmission shifter to neutral position.
3. Loosen set screw on front of shifter knob and remove shift lever knob.
4. Remove plastic plunger rod from shifter lever.
5. Remove cap covering screw head near shifter lever.

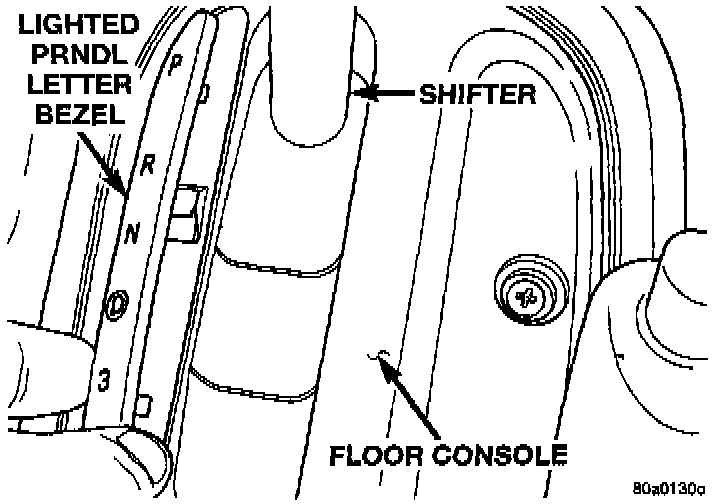

Lighted PRNDL Letter Bezel:

6. Remove lighted PRNDL letter bezel.
7. Remove screws, next to floor shifter and in console storage compartment, holding floor console to brackets on floor pan.
8. Disconnect wire connector for floor console accessories at floor pan.
9. Separate console from vehicle.

NOTE: The grip portion of the parking brake lever will only fit through the wider lower portion of the slot in the floor console.

INSTALLATION
1. Position console in vehicle.
2. Verify that the rear locator pin on the bottom of the storage bin is engaged to the slot in the body bracket.
3. Connect wire connector for floor console accessories at floor pan.
4. Install screws, next to floor shifter and in console storage compartment, holding floor console to brackets on floor pan.
5. Install lighted PRNDL letter bezel.
6. Install cap to cover screw head near shifter lever.
7. Install plastic plunger rod to shifter lever.
8. Install shift lever knob and tighten set screw on front of shifter knob.
