Carpet: Service and Repair

REMOVAL
1. Lower convertible top to full down position.
2. Remove front seats.
3. Remove rear seat cushion.
4. Remove floor console and forward instrument panel console.
5. Remove door sill trim panels.
6. Remove cowl trim panels.
7. Remove quarter trim panels.
8. Remove amplifier on passenger side of floor pan, if so equipped.
9. Remove wiring troughs holding carpet at outboard ends of rear seat crossmember.

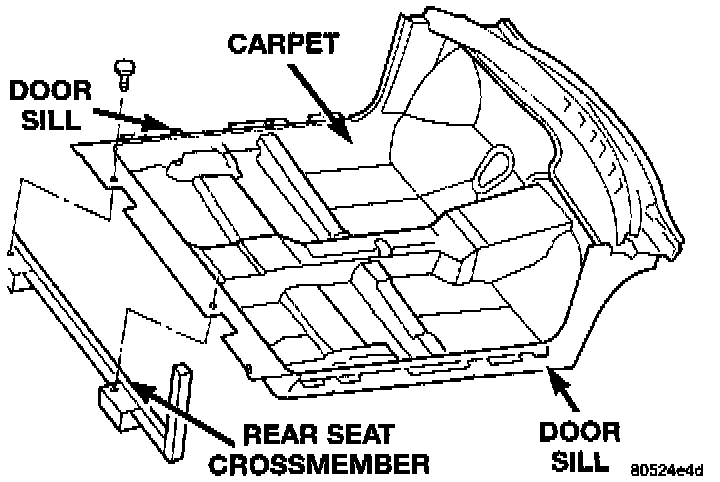

Carpet Fasteners:

10. Remove push-in fasteners from rear of carpet holding carpet to rear seat crossmember.
11. Remove plastic sill retainers from metal clips along door sill panel.

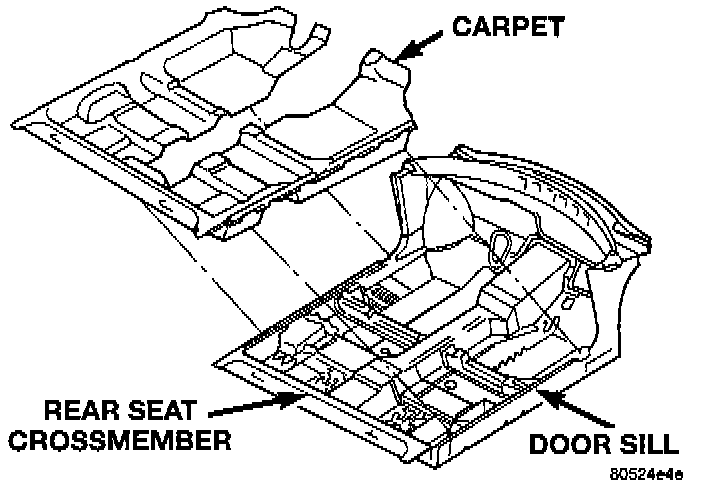

Carpet:

12. Separate carpet from vehicle.

INSTALLATION
1. Separate carpet from vehicle.
2. Install push-in fasteners from rear of carpet holding carpet to rear seat crossmember.
3. Install plastic sill retainers to metal clips along door sill panel.
4. Install wiring troughs holding carpet at outboard ends of rear seat crossmember.
5. Install amplifier on passenger side of floor pan if so equipped.
6. Install quarter trim panels.
7. Install cowl trim panels.
8. Install door sill trim panels.
9. Install floor console and forward instrument panel console.
10. Install rear seat cushion.
11. Install front seats.
12. Raise and secure convertible top.
