Hood Latch: Service and Repair

REMOVAL
1. Release hood latch and open hood.
2. Support hood on prop rod.

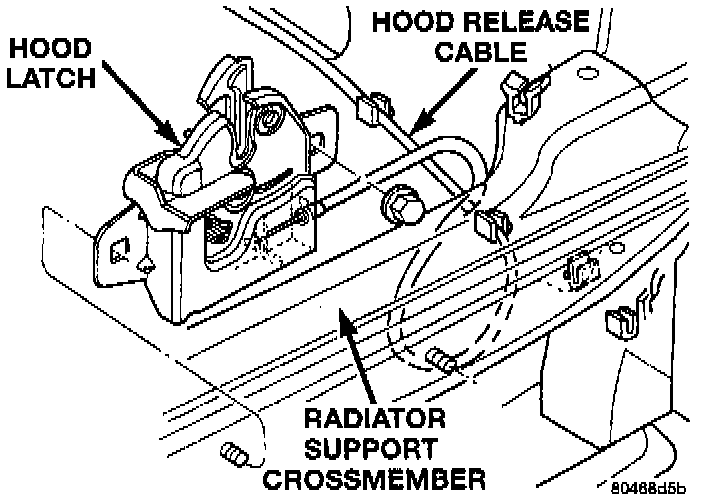

Hood Latch:

3. Remove nuts holding hood latch to upper radiator support crossmember.
4. Separate hood latch from vehicle.

Hood Latch Release Cable:

5. Disengage remote release cable from hood latch.

INSTALLATION
1. Engage remote release cable into hood latch.
2. Position hood latch on vehicle.
3. Install nuts holding hood latch onto upper radiator support crossmember.
4. Verify operation. Adjust as necessary.
