Hood Latch Release Cable: Service and Repair

REMOVAL
1. Remove hood latch.
2. Remove left front cowl trim panel.

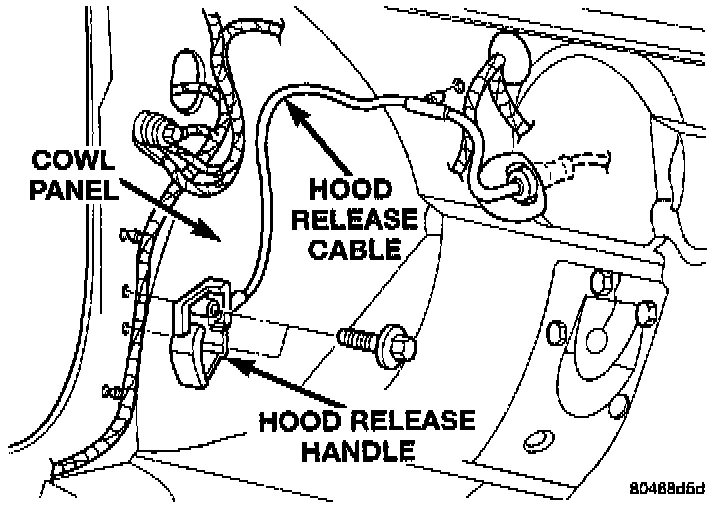

Hood Release Cable Handle:

3. Remove screws holding hood release handle to inner cowl panel.

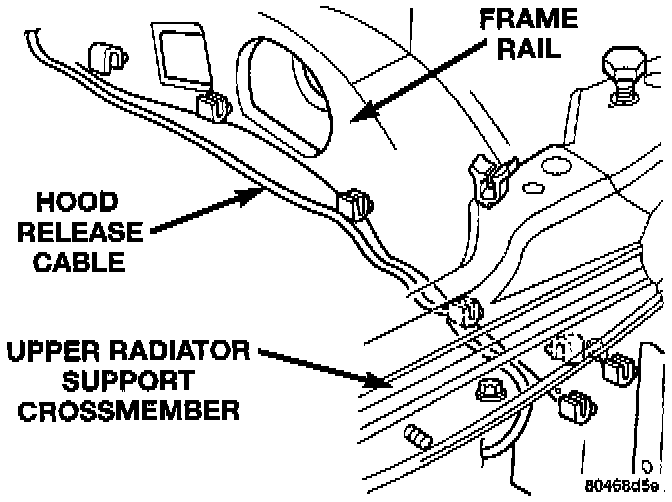

Hood Release Cable Routing:

4. Release clips holding hood release cable to left inner frame rail.
5. Disengage rubber grommet at lower dash panel.
6. Disengage push-in fastener holding hood release cable to dash panel.
7. Separate hood release cable from vehicle.

INSTALLATION
1. Route hood release cable through hole in lower dash panel and along inner frame rail.
