Front Door Striker: Service and Repair

REMOVAL
1. Mark outline of door latch striker on B-pillar to aid in installation.

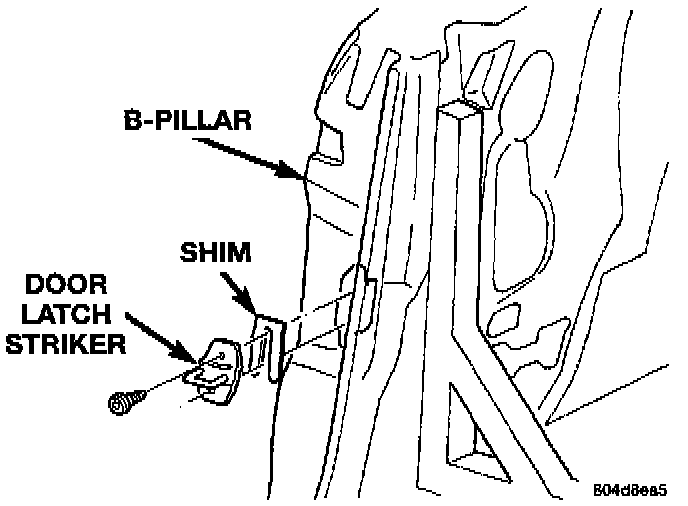

Door Latch Striker:

2. Remove screws holding door latch striker to B-pillar.
3. Separate latch striker from vehicle.

NOTE: Be sure to check for any shims between door latch striker and B-pillar. If any shims are found, they must be re-installed with the new door latch striker to maintain proper door operation.

INSTALLATION
1. Position door latch striker and any shims on vehicle.
2. Loosely install screws holding latch striker to B-pillar.
3. Align latch striker to marks on B-pillar made previously
4. Tighten all fasteners.
5. Verify door fit and operation. Adjust door latch striker as necessary.
