Front Door Handle: Service and Repair

REMOVAL
1. Remove door trim panel.
2. Raise door glass.
3. Remove watershield as necessary to gain access.
4. Disconnect latch rod at door latch.

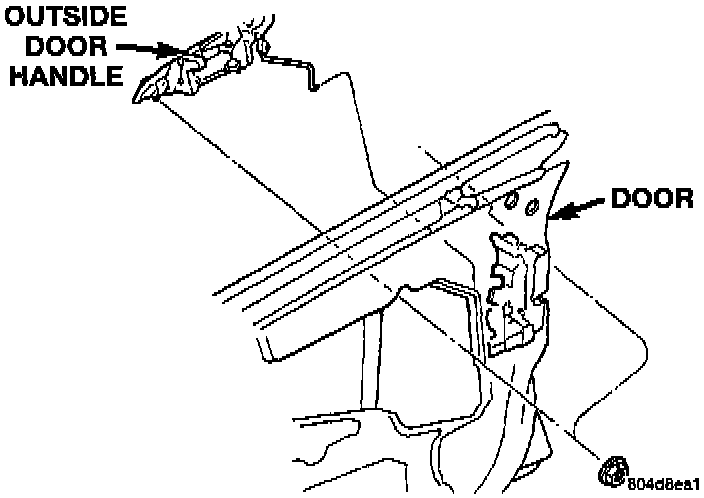

Outside Door Handle:

5. Remove nuts holding door handle to outer door panel.
6. Separate outside door handle from door

INSTALLATION
1. Position outside door handle on door.
2. Install nuts holding door handle to outer door panel.
3. Connect latch rod at door latch.
4. Install watershield.
5. Install door trim panel.
6. Verify door handle operation. Adjust door latch as necessary.
