Charging System Verification Tests
Charging System Verification Tests
Fig. 59 Test VER-1A: No Start Verification:
Fig. 60 Test VER-2A: Road Test Verification:

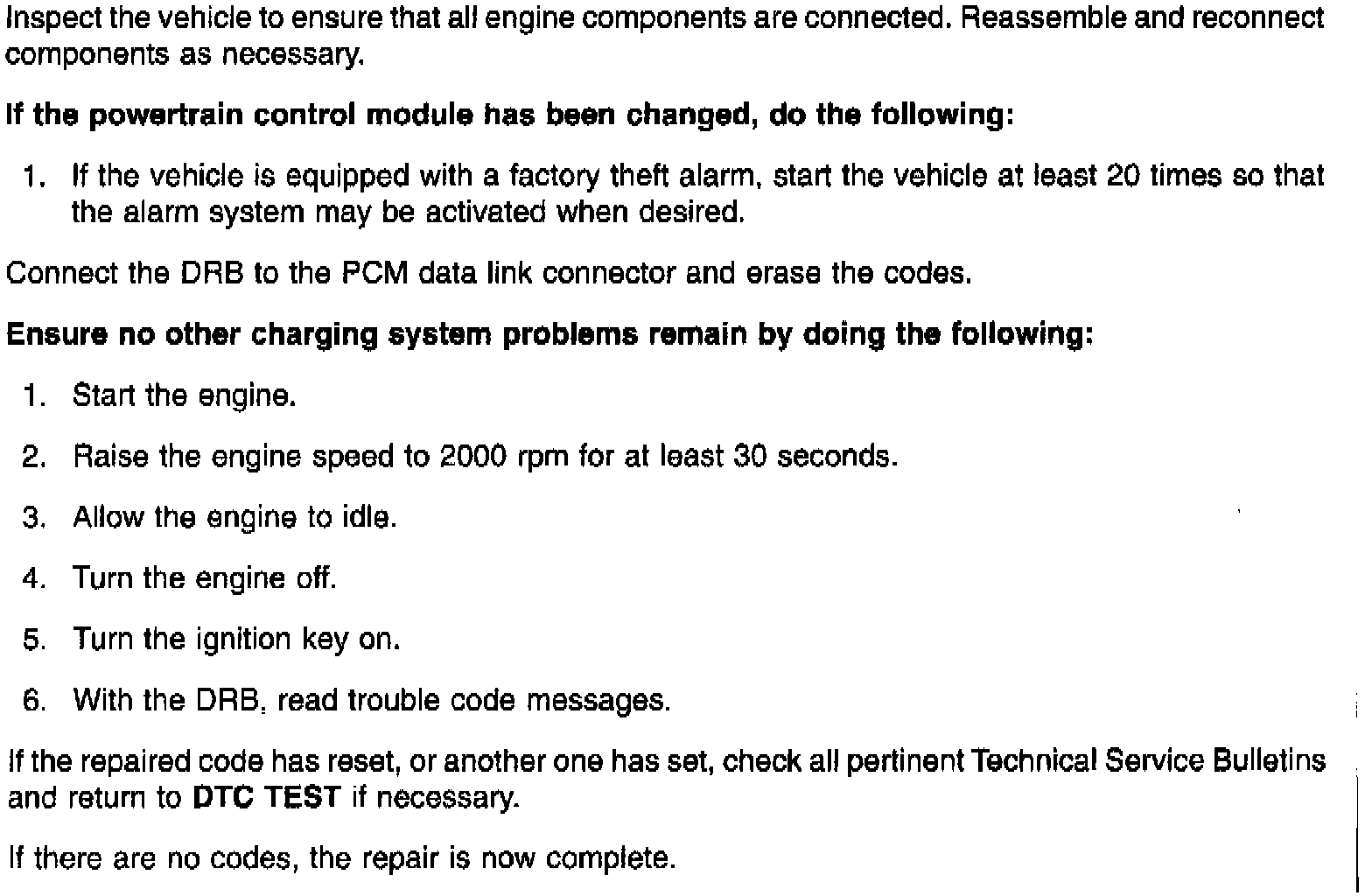

Fig. 61 Test VER-3A: Charging Verification:
