TC-43A Ignition Coil #1 Primary Circuit
TC-43A Ignition Coil #1 Primary Circuit

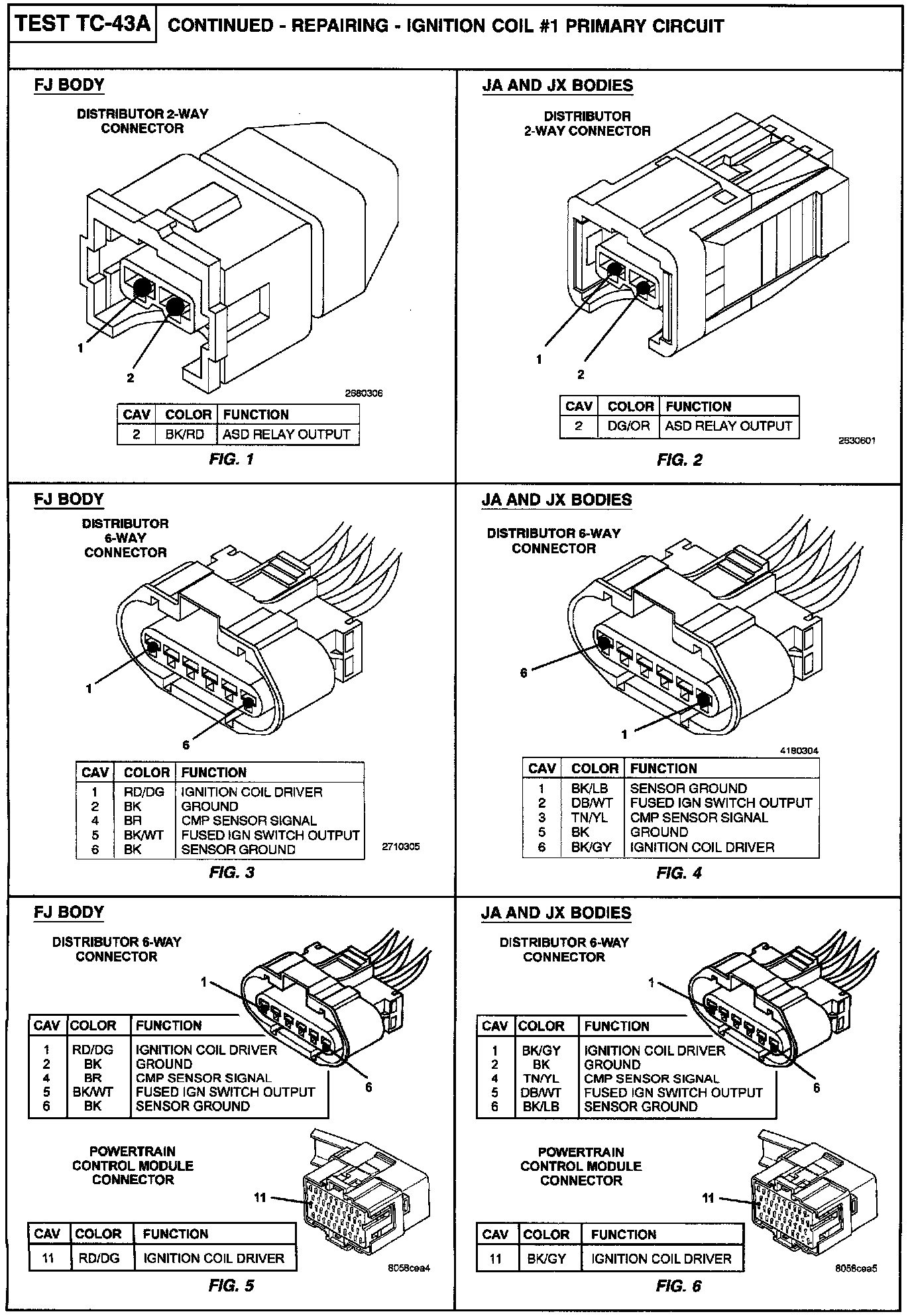

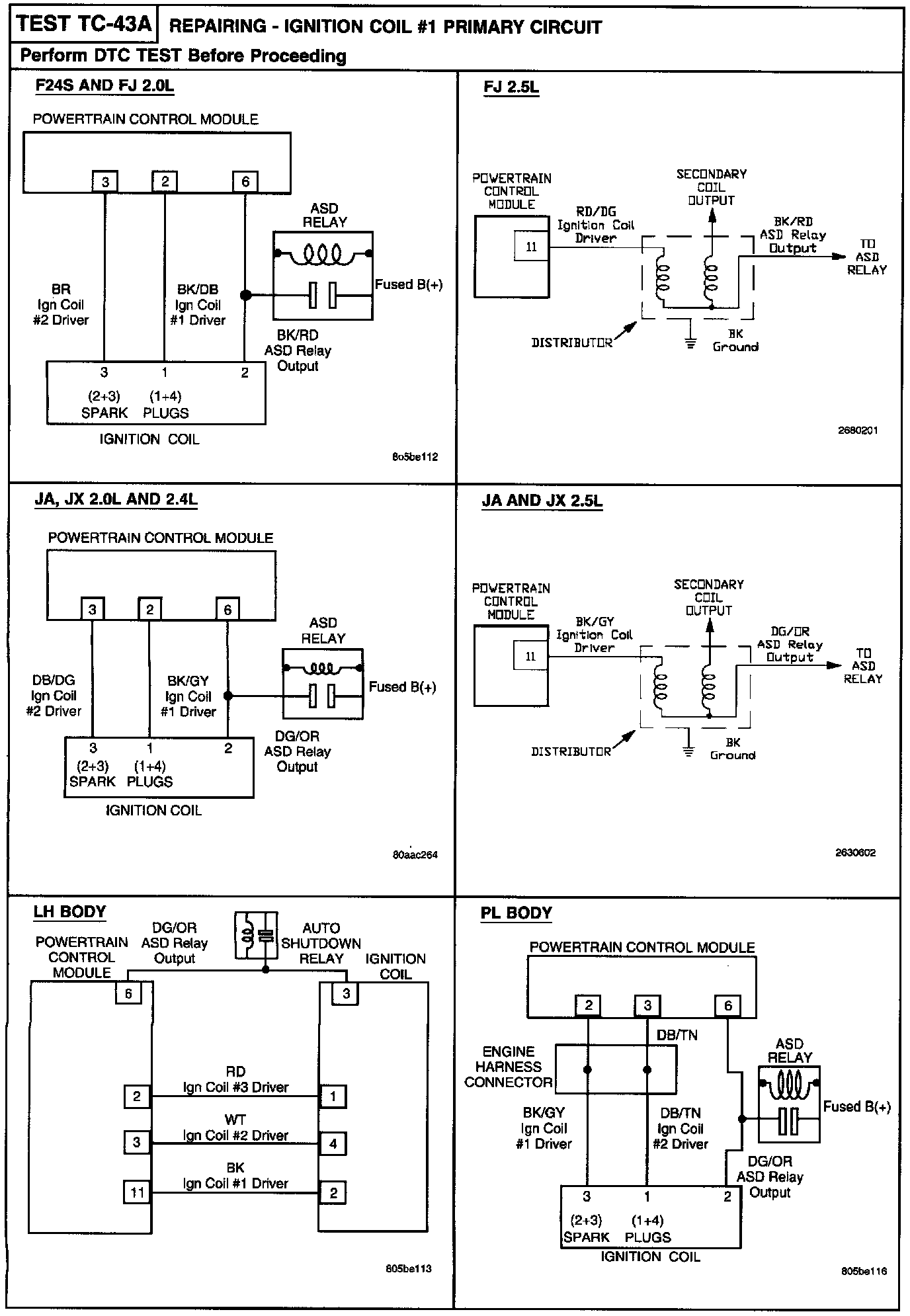

Related Images:

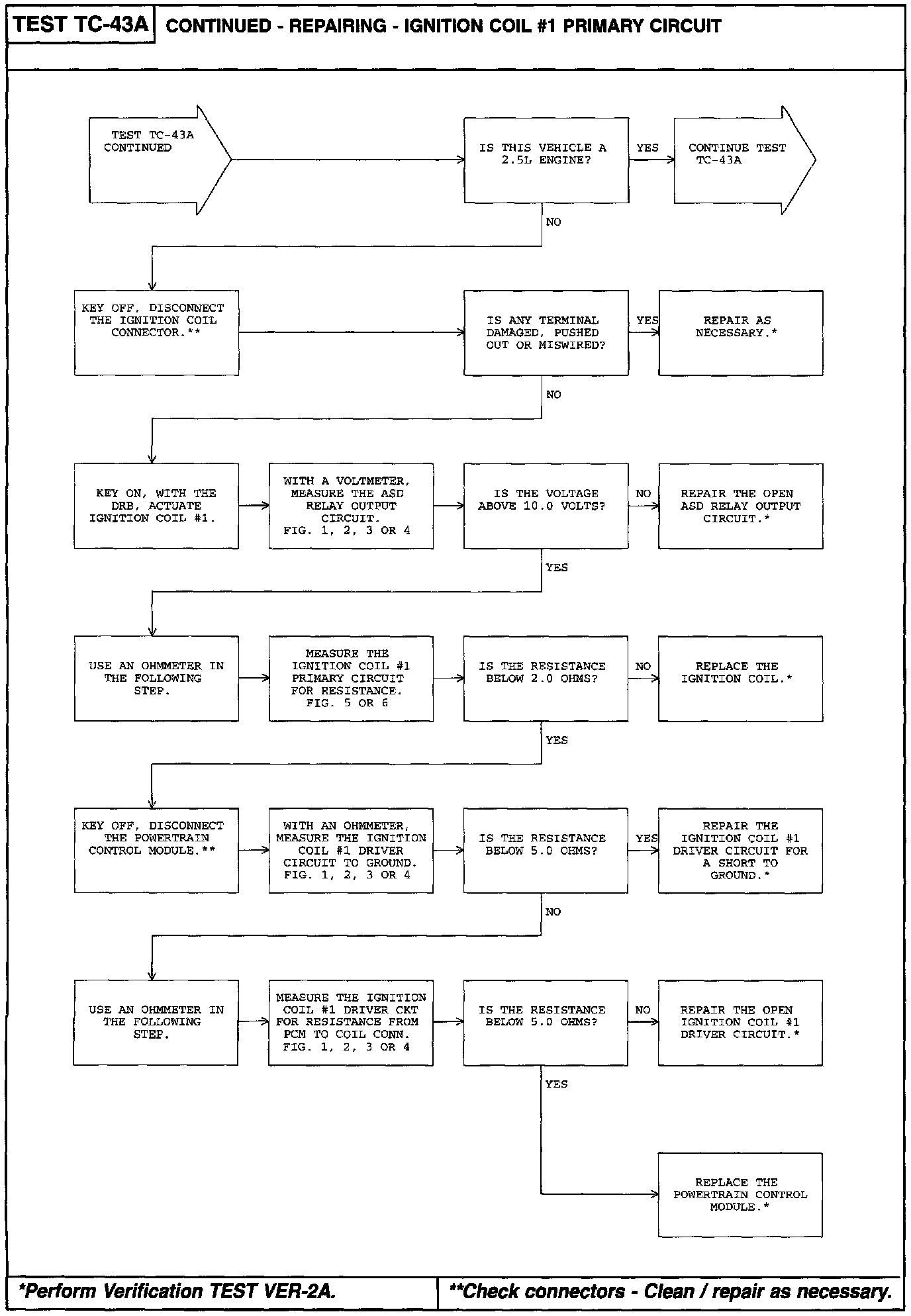

Flow Chart:
Related Images:

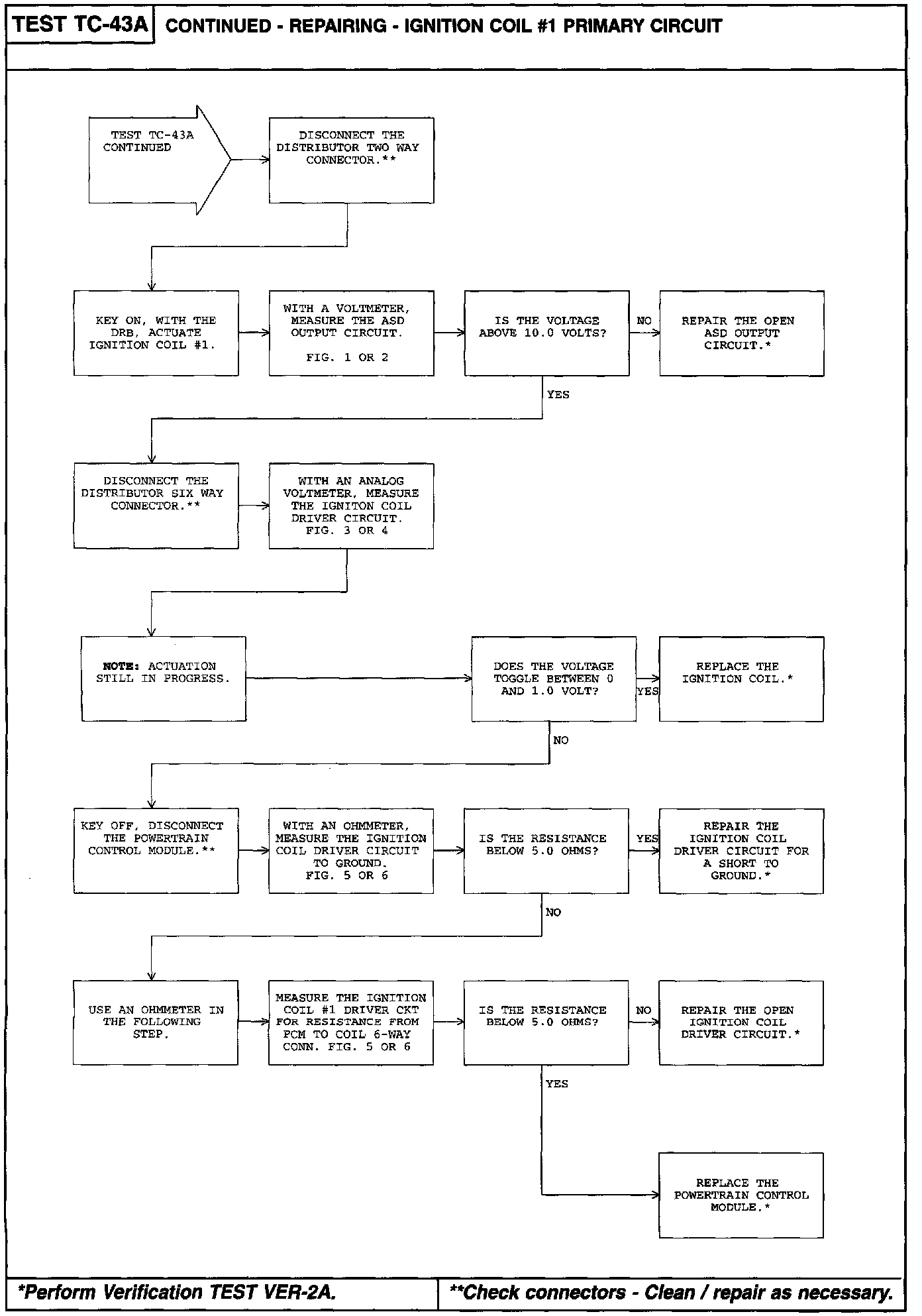

Flow Chart:

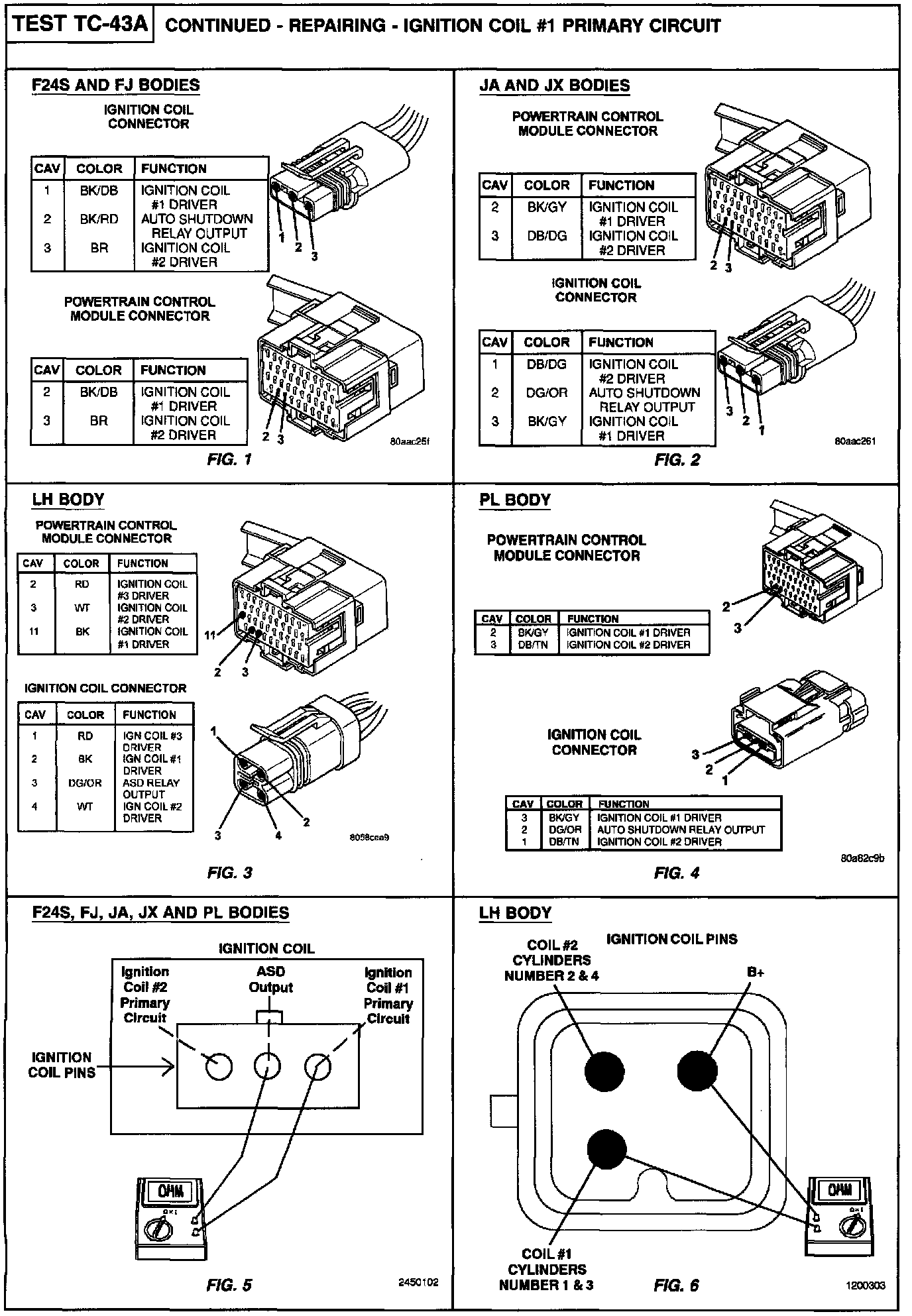

Related Images:
Flow Chart:
