Home >> Chrysler >> 1996 >> Sebring Convertible L4-2.4L DOHC >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Trouble Code (TC) Tests >> TC-193A Slow O2S 2/1 During Catalyst Monitor

TC-193A Slow O2S 2/1 During Catalyst Monitor

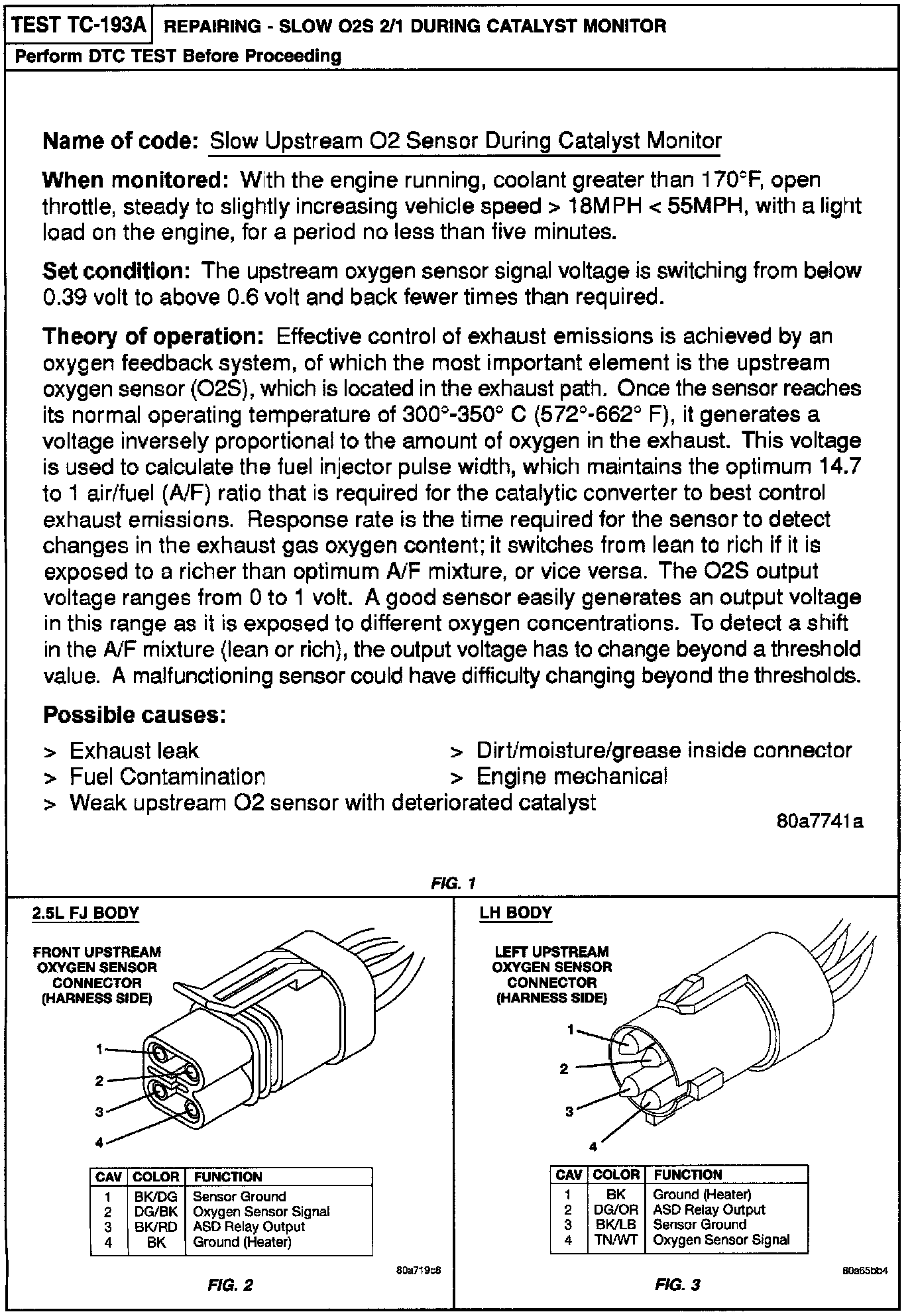

Related Images:

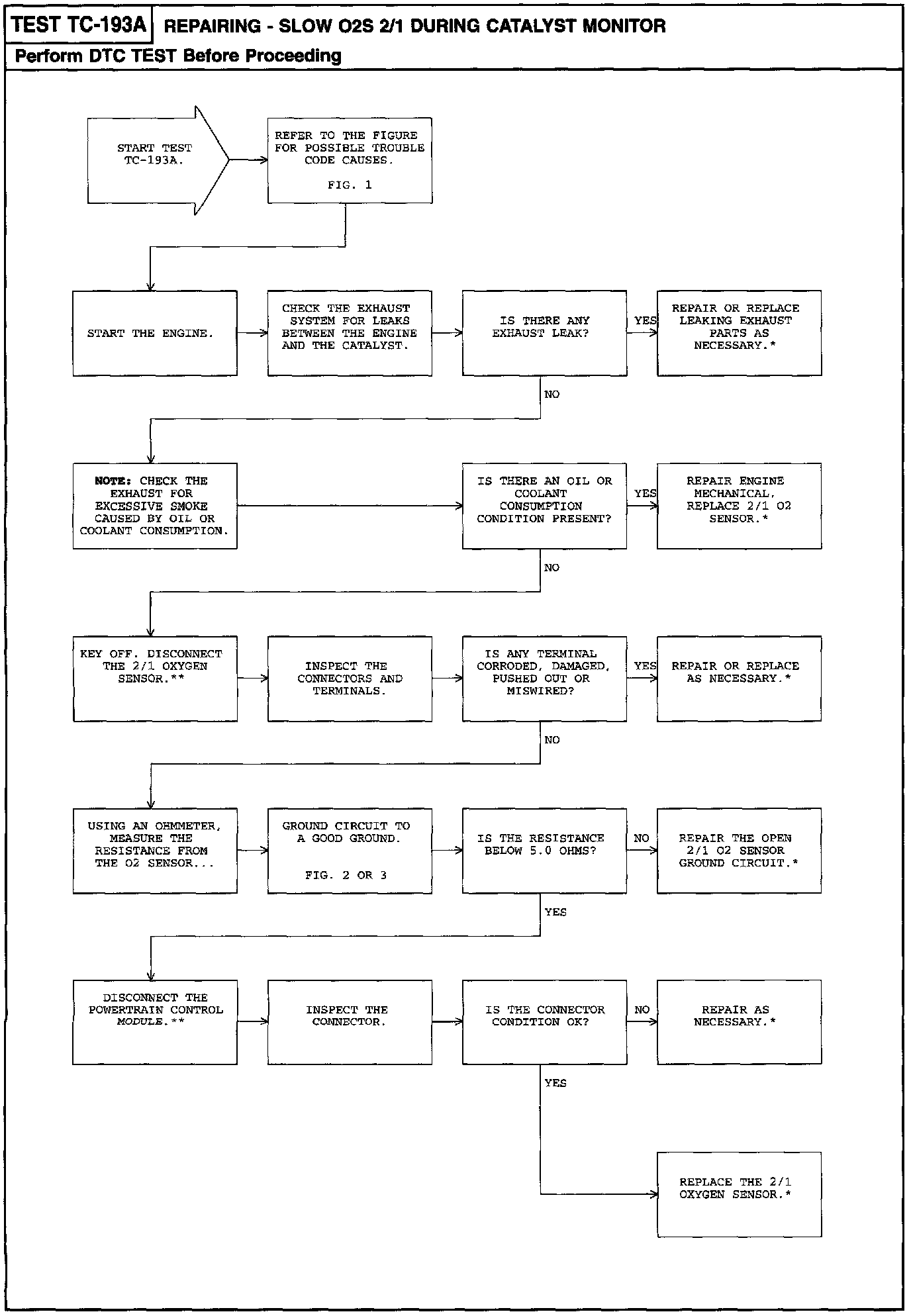

Flow Chart:
