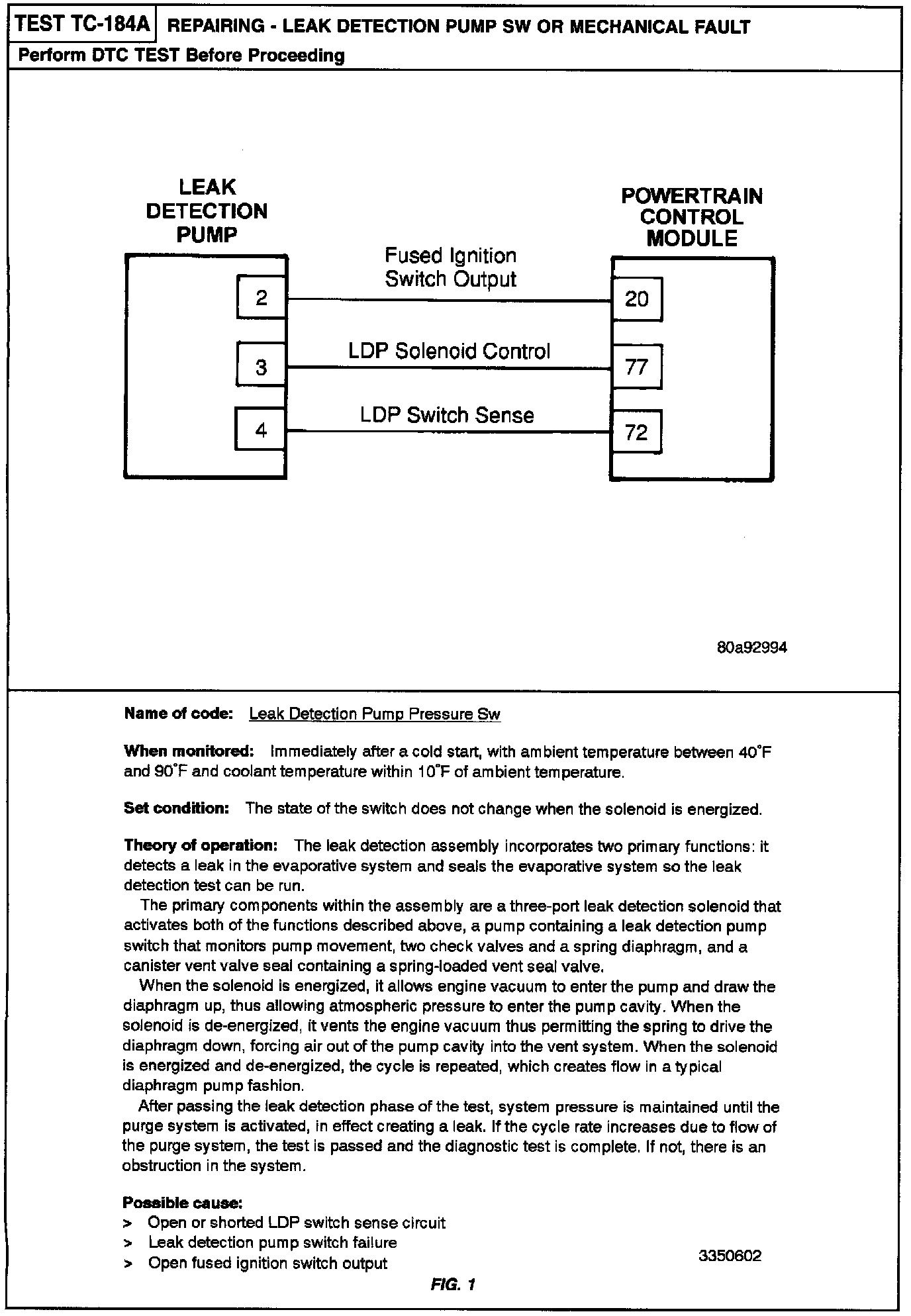

TC-184A Leak Detection Pump Switch or Mechanical Fault

Related Images:

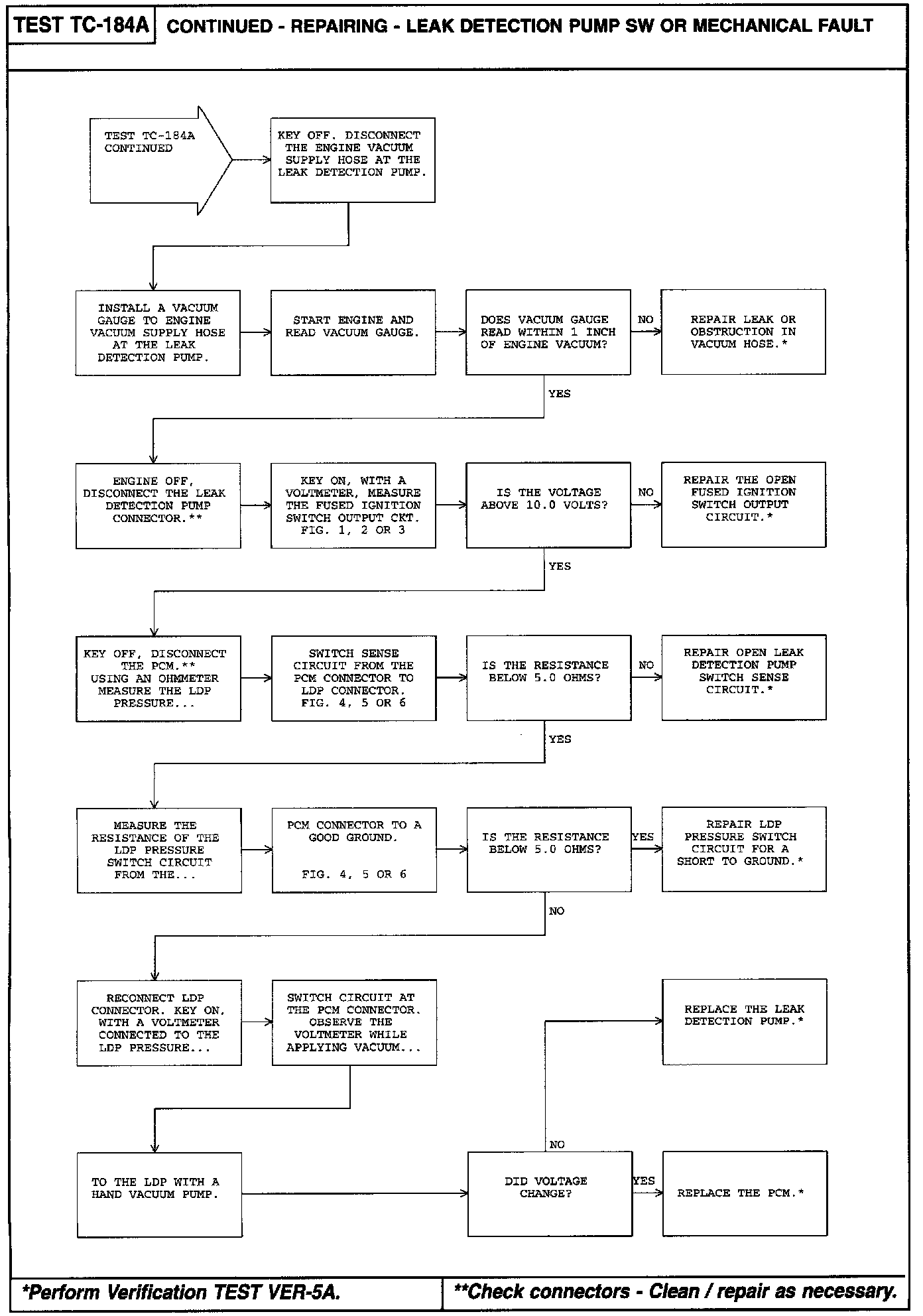

Flow Chart:

Related Images:

Flow Chart:
