TC-16A A/C Clutch Relay Circuit

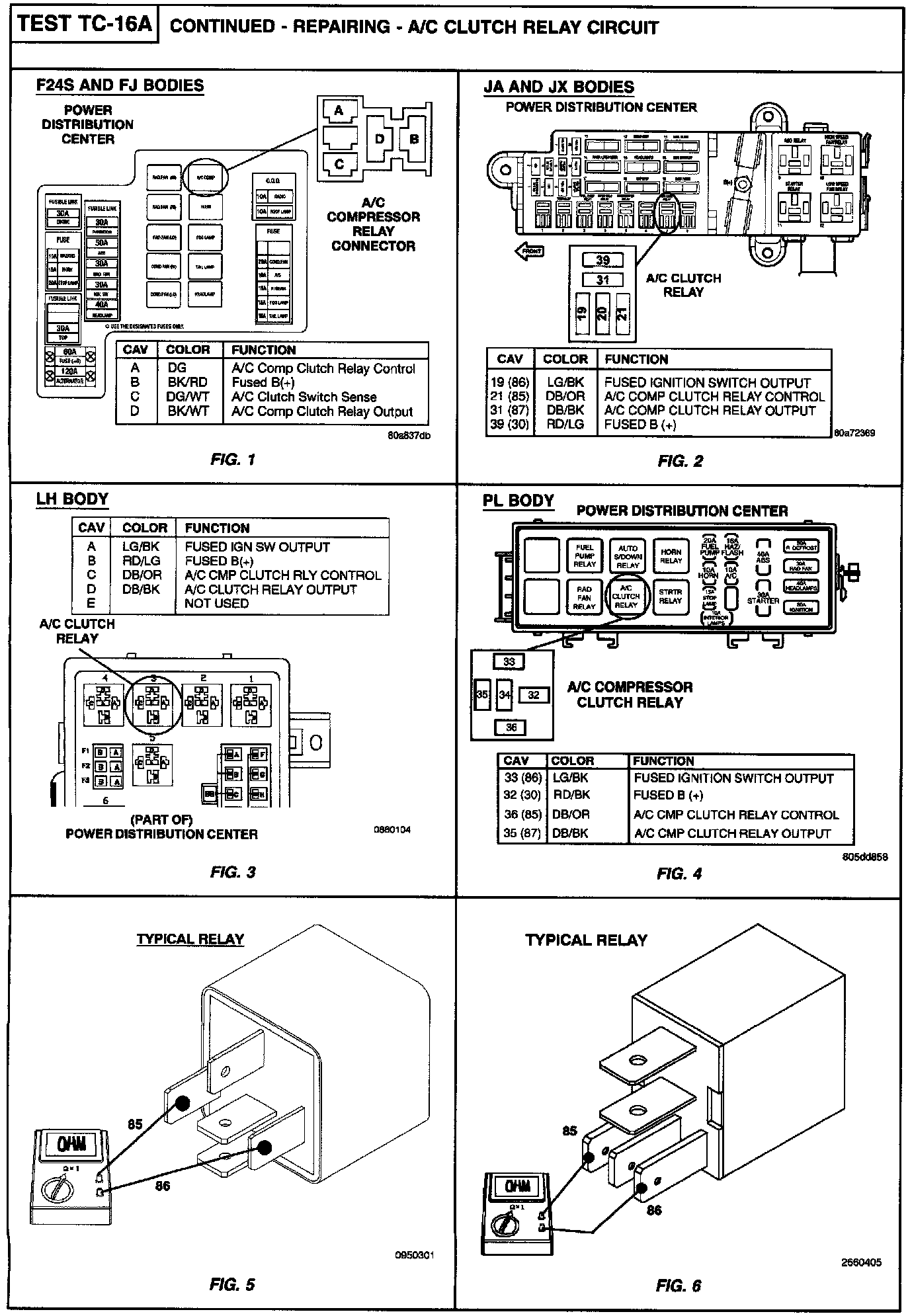

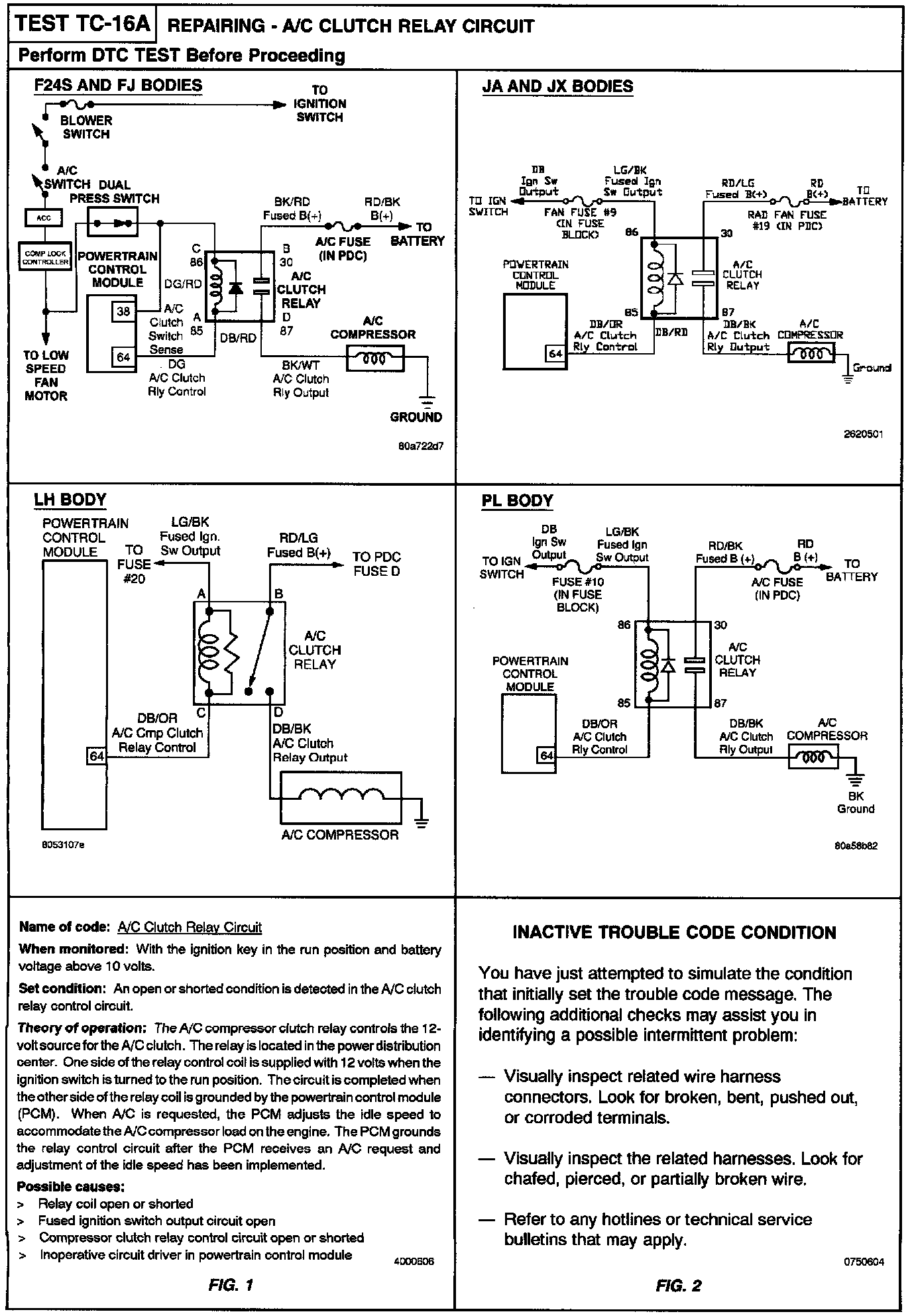

Related Images:

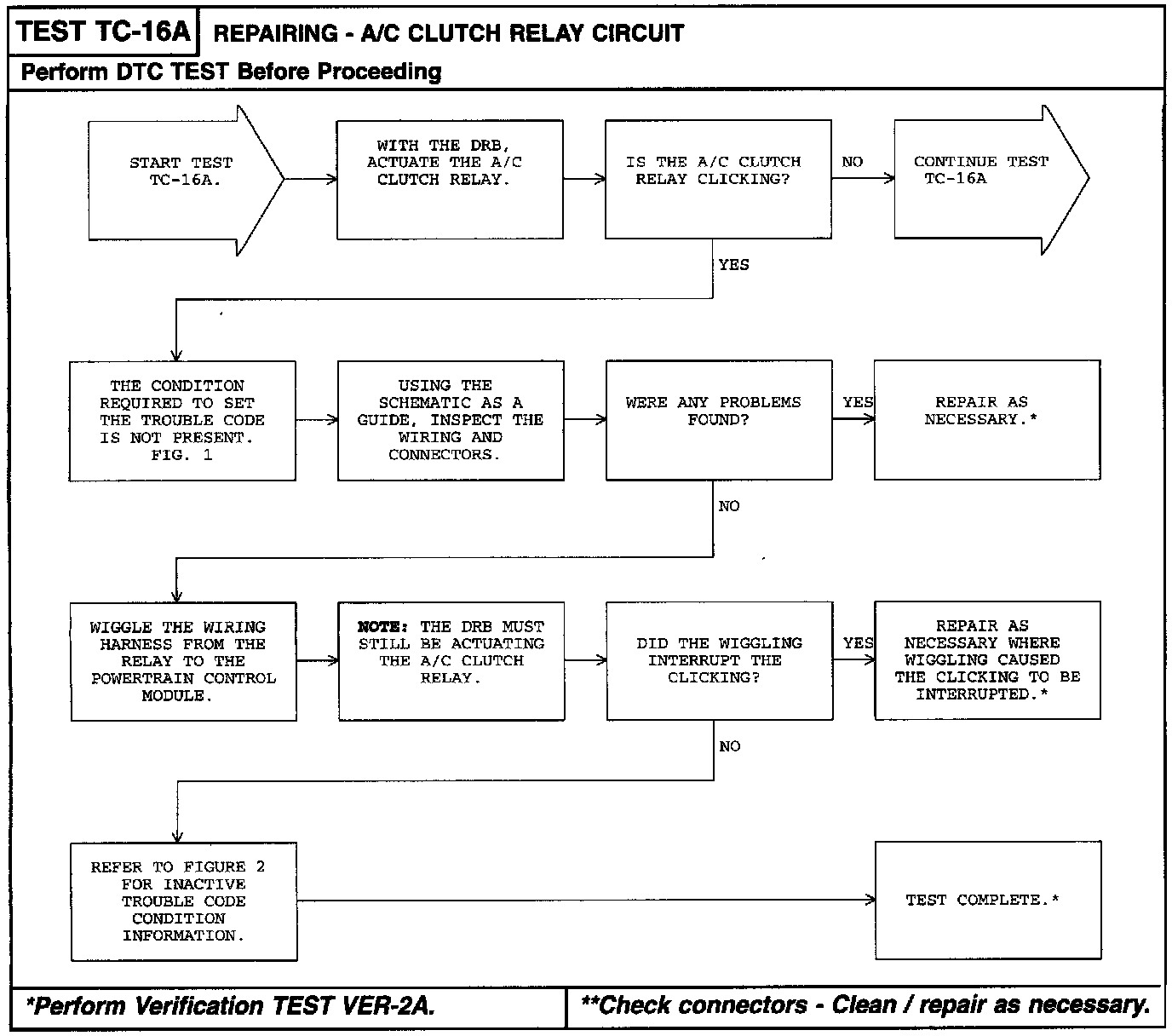

Flow Chart:

Related Images:

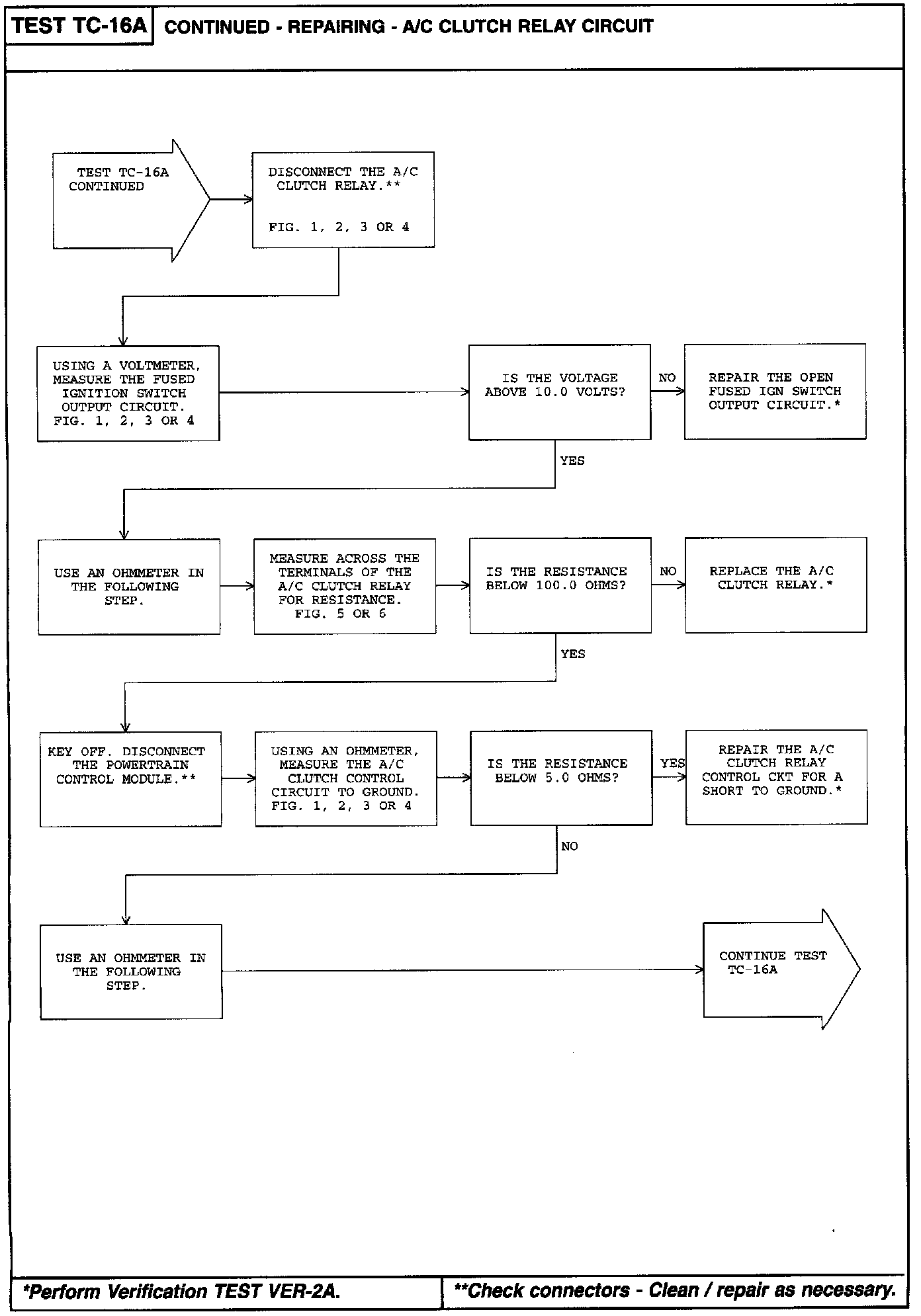

Flow Chart:

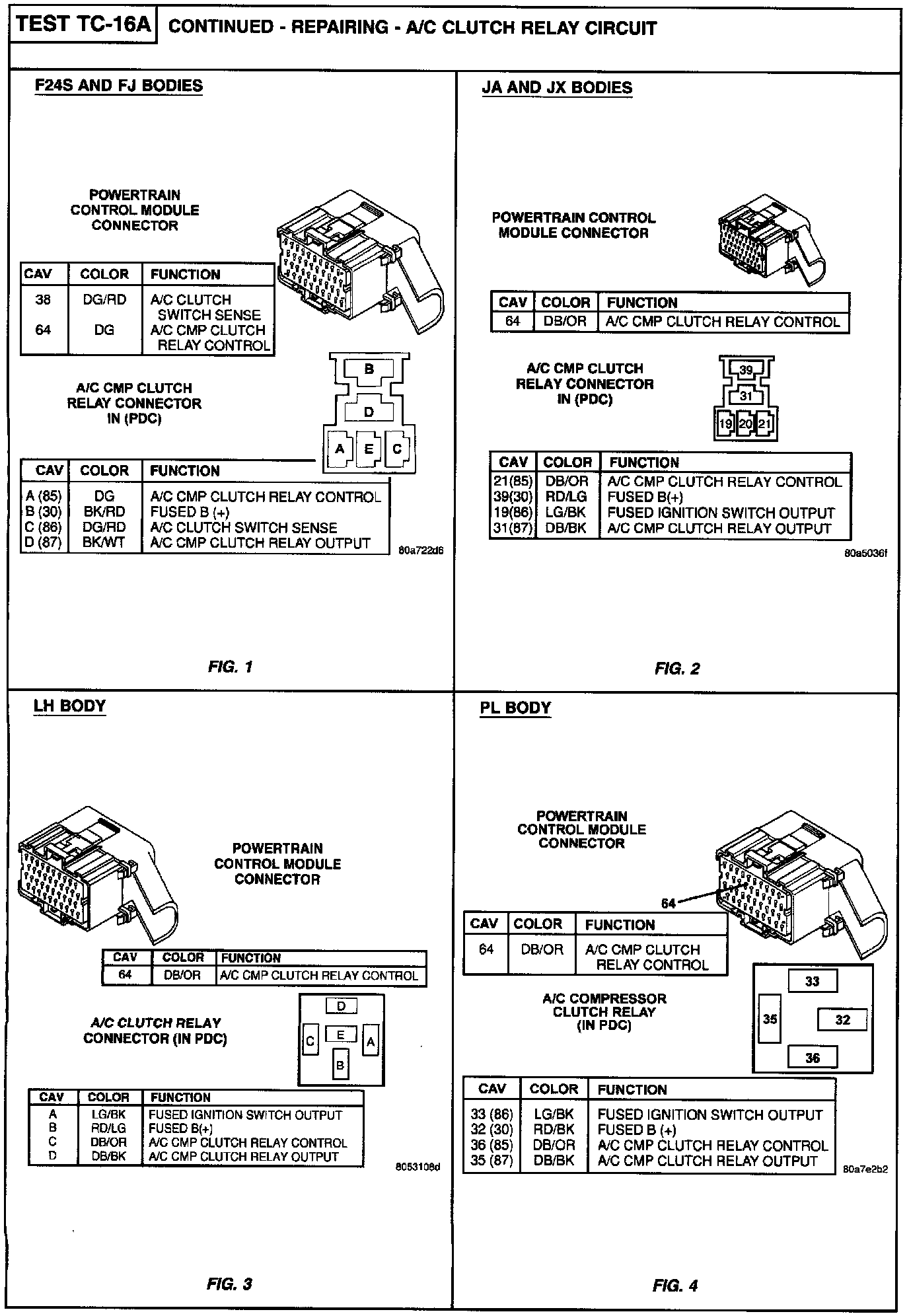

Related Images:

Flow Chart:
