FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Chrysler
>>
1996
>>
Sebring Convertible L4-2.4L DOHC
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Trouble Code (TC) Tests
>>

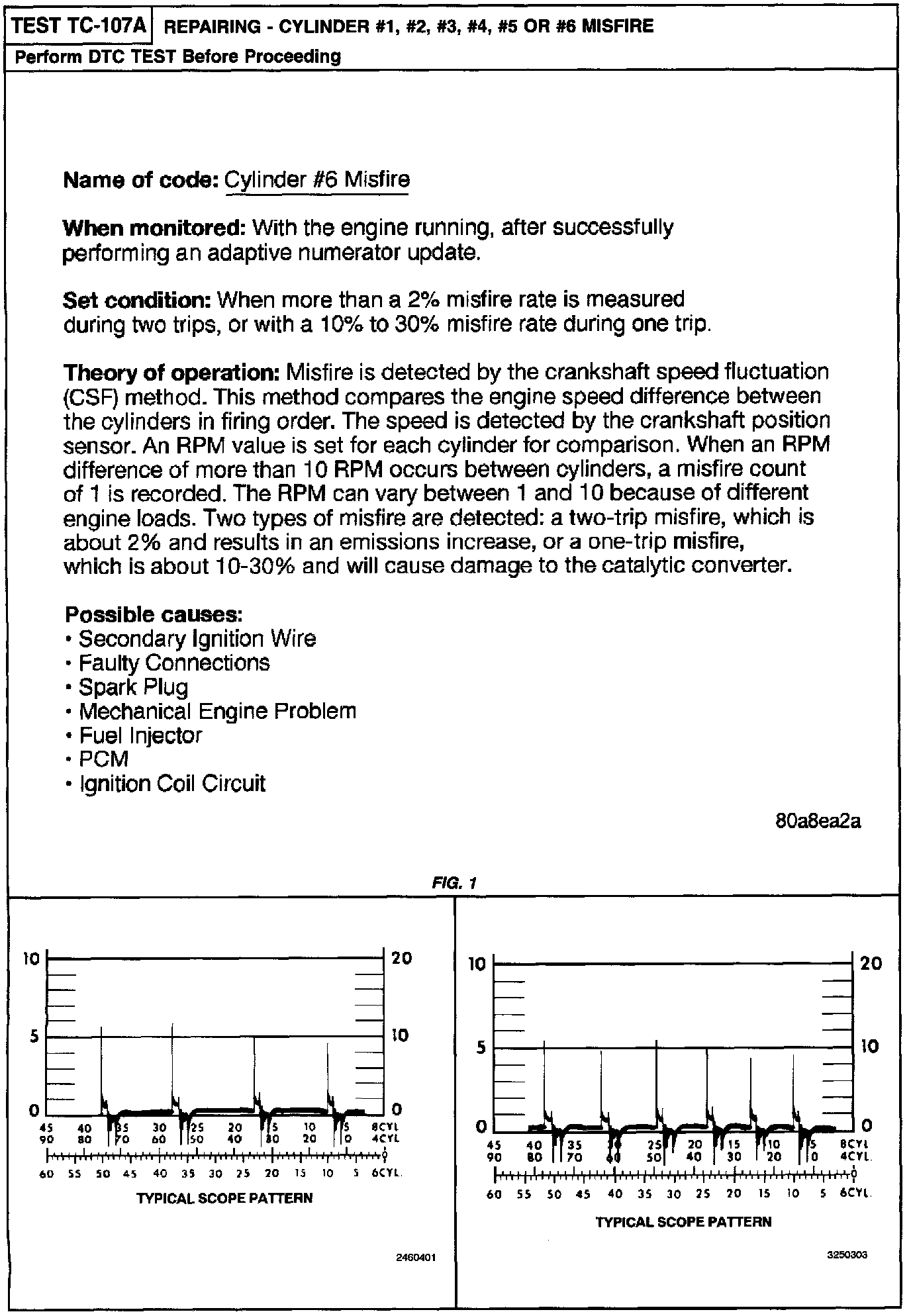

TC-107A Cylinder #1,#2,#3,#4,#5 or #6 Misfire
TC-107A Cylinder #1,#2,#3,#4,#5 or #6 Misfire

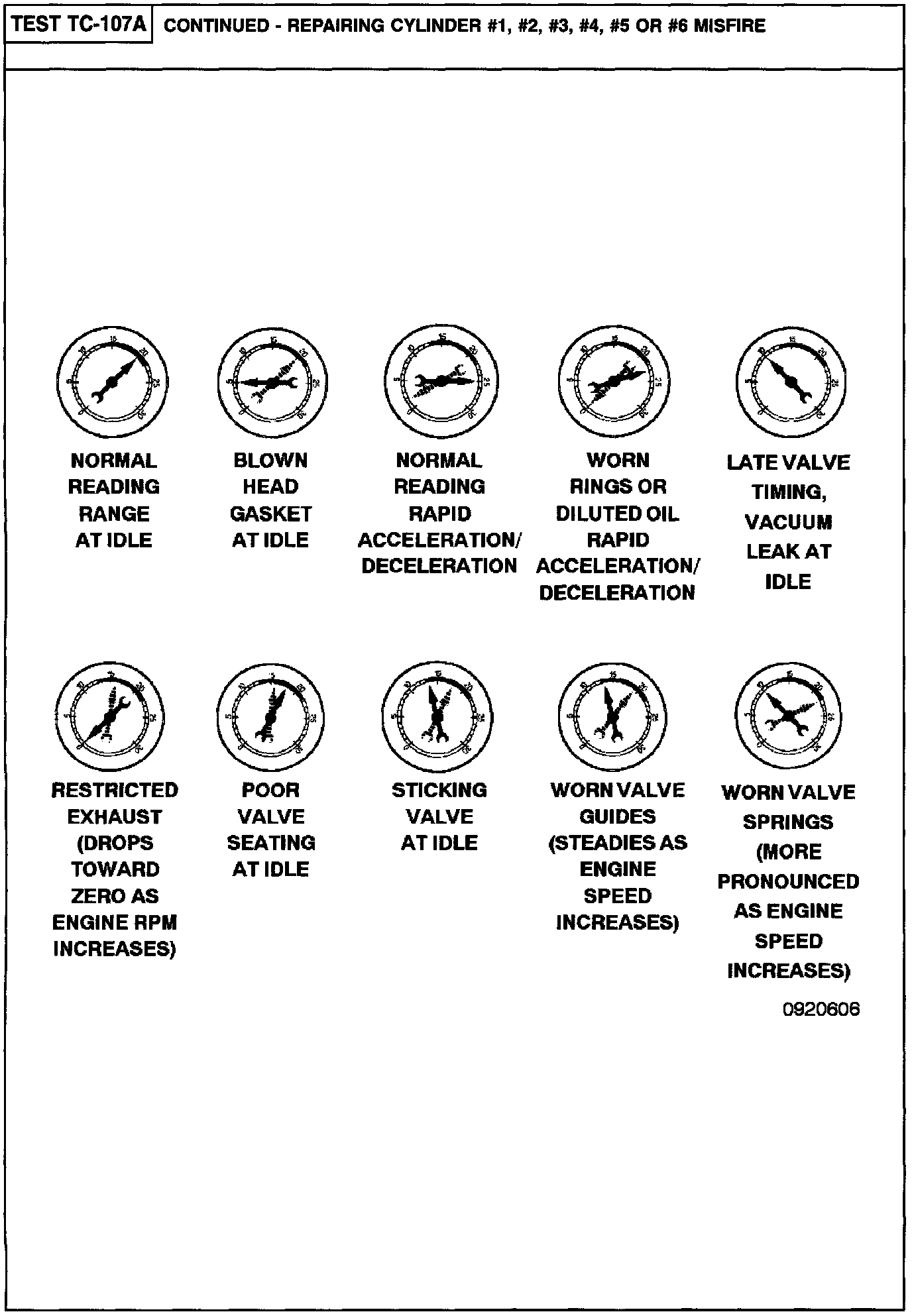

Related Images:

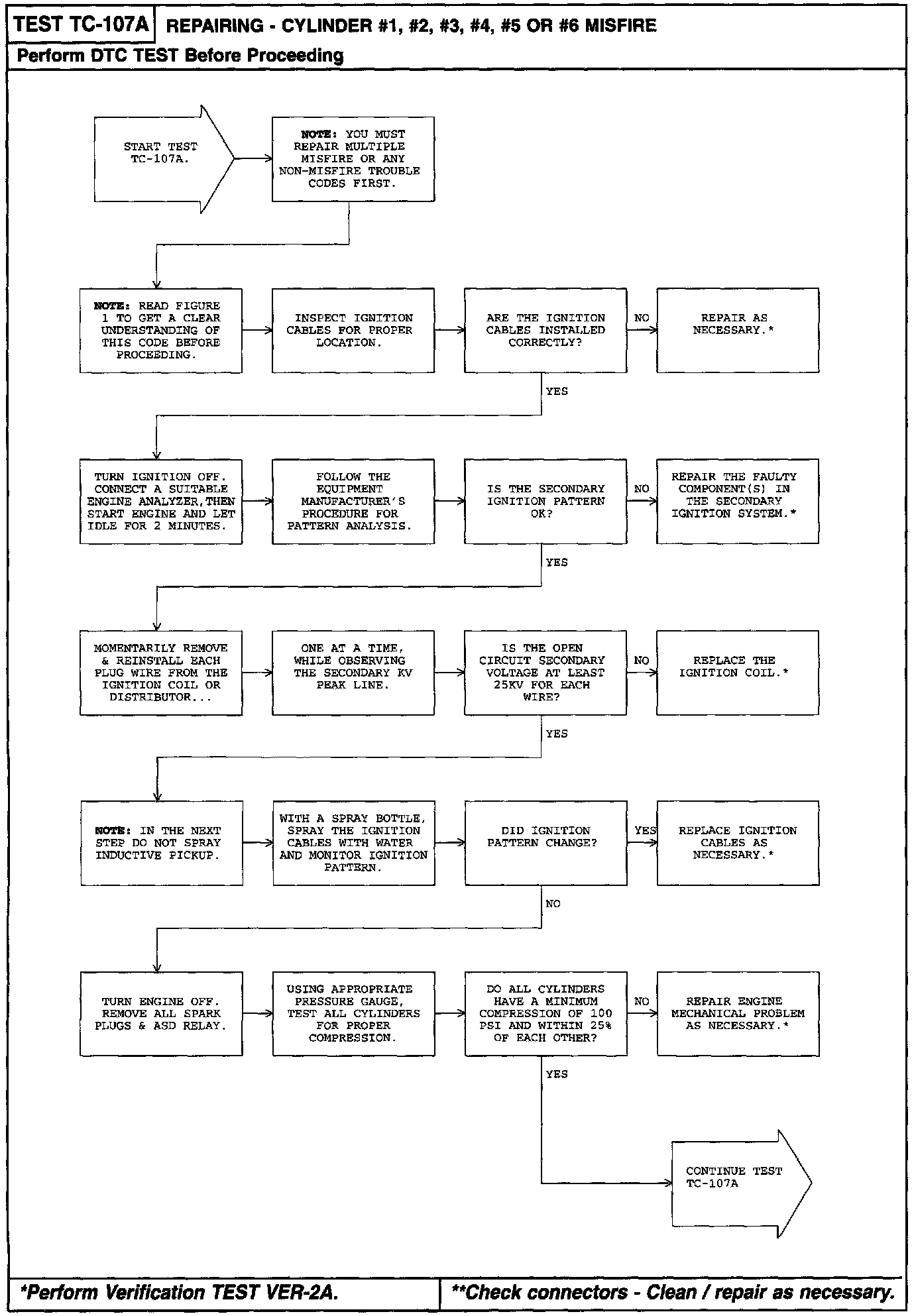

Flow Chart:
Related Images:

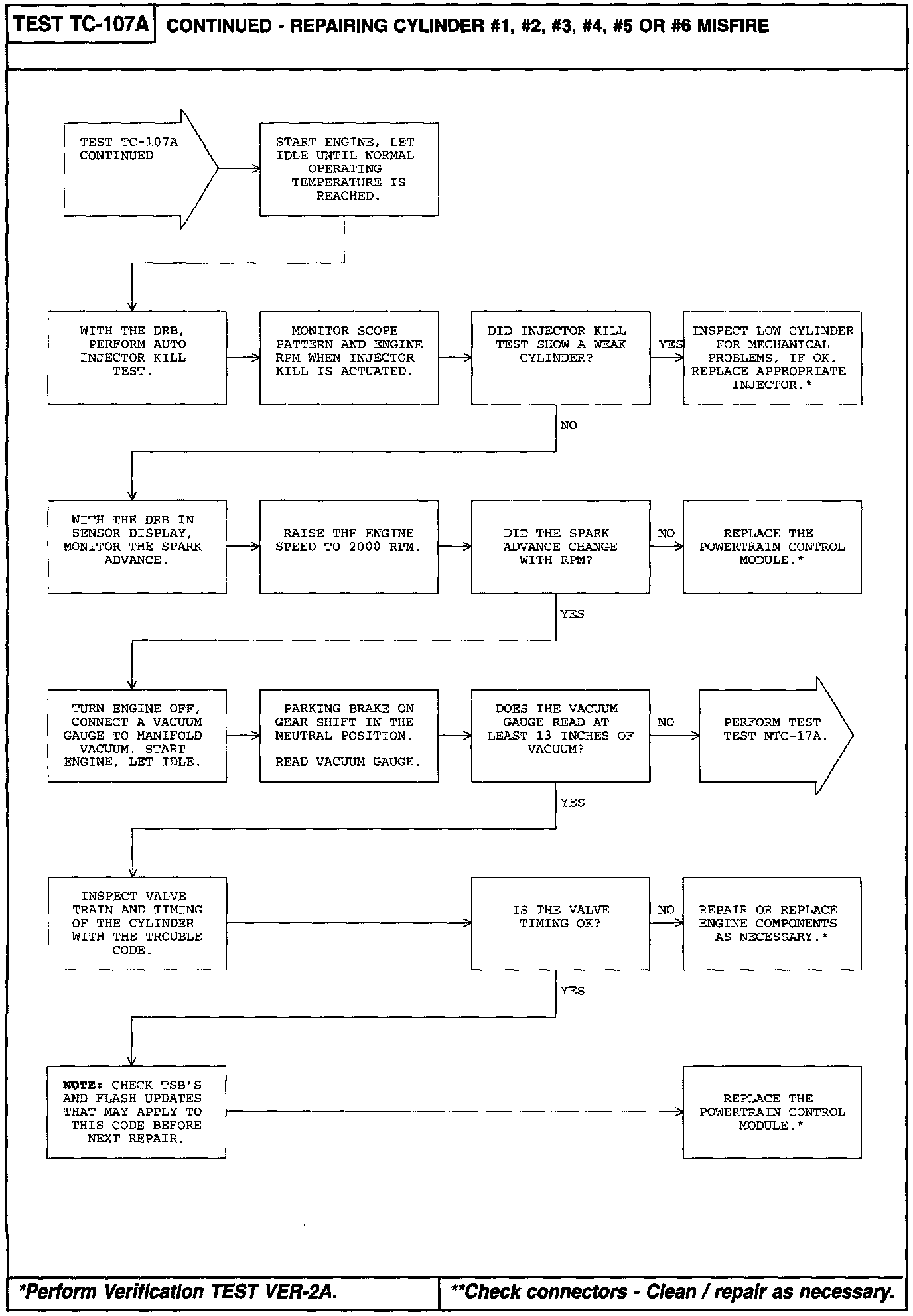

Flow Chart:
