2 Entering 41TE/AE Diagnostic Tests




Note: Chrysler does not provide P-code information for the Transmission Control System on this vehicle. If using a generic scan tool, refer to scan tool documentation for code descriptions.

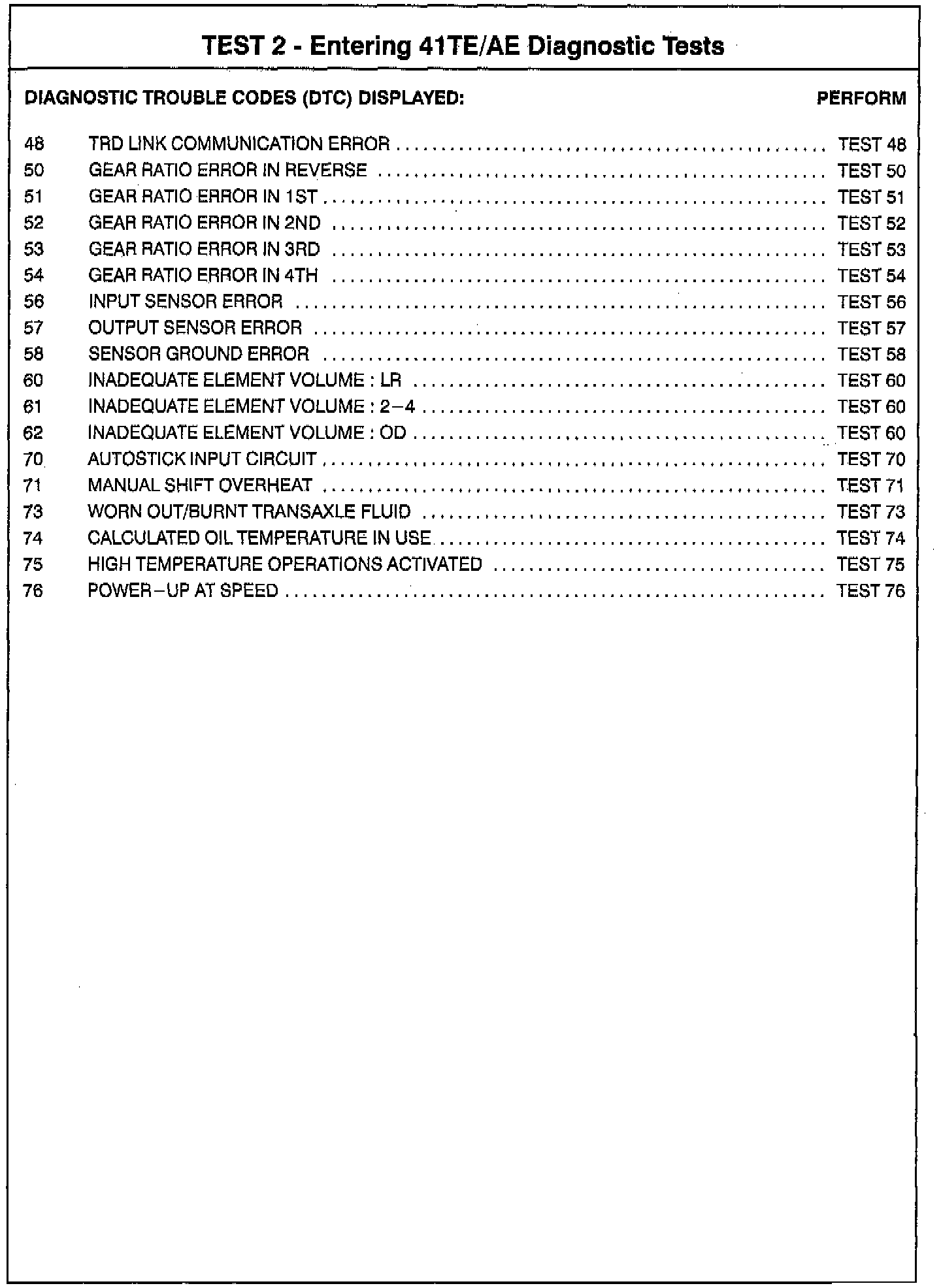

TEST 2 Entering 41TE/AE Diagnostic Tests 1 Of 2:






TEST 2 Entering 41TE/AE Diagnostic Tests 2 Of 2:
