SC-9A Park/Neutral Position Switch Inspection

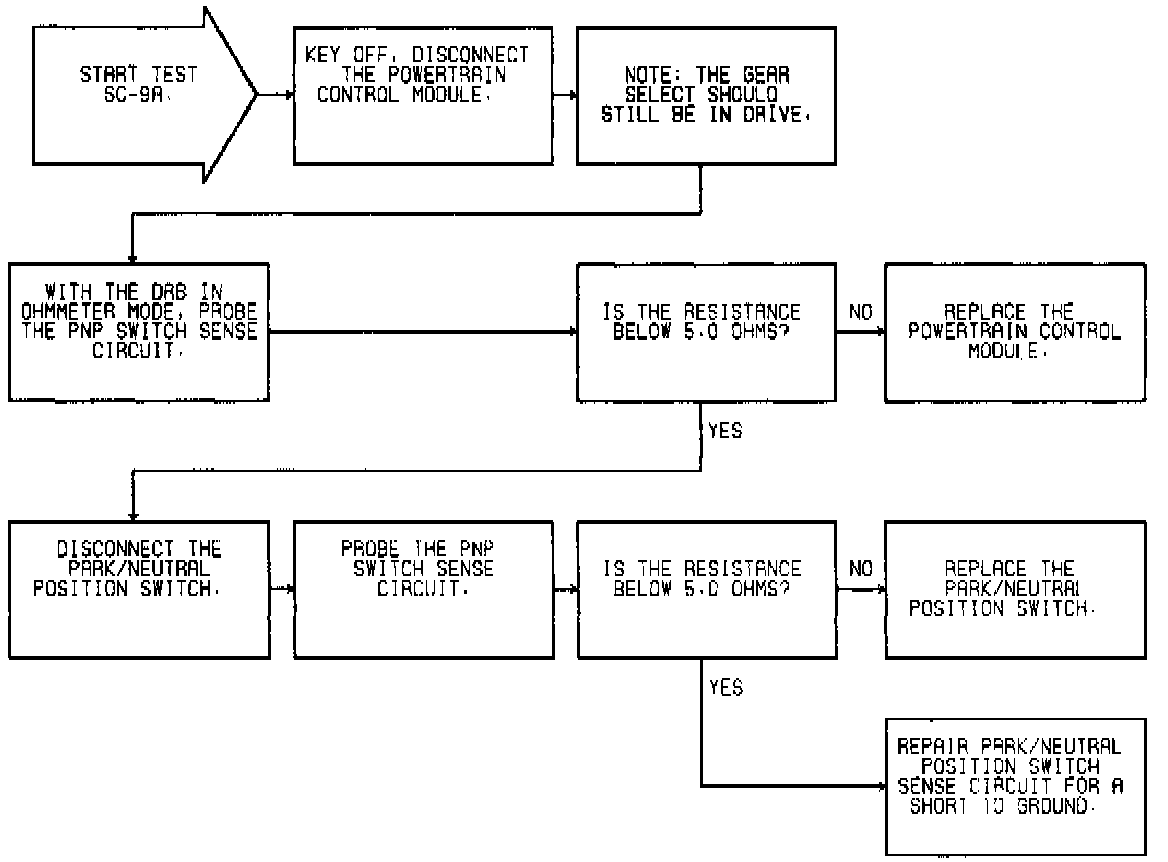

Fig. 71 Test SC-9A: Park/Neutral Position Switch Inspection:
