SC-8A Speed Control Brake Switch Output Inspection

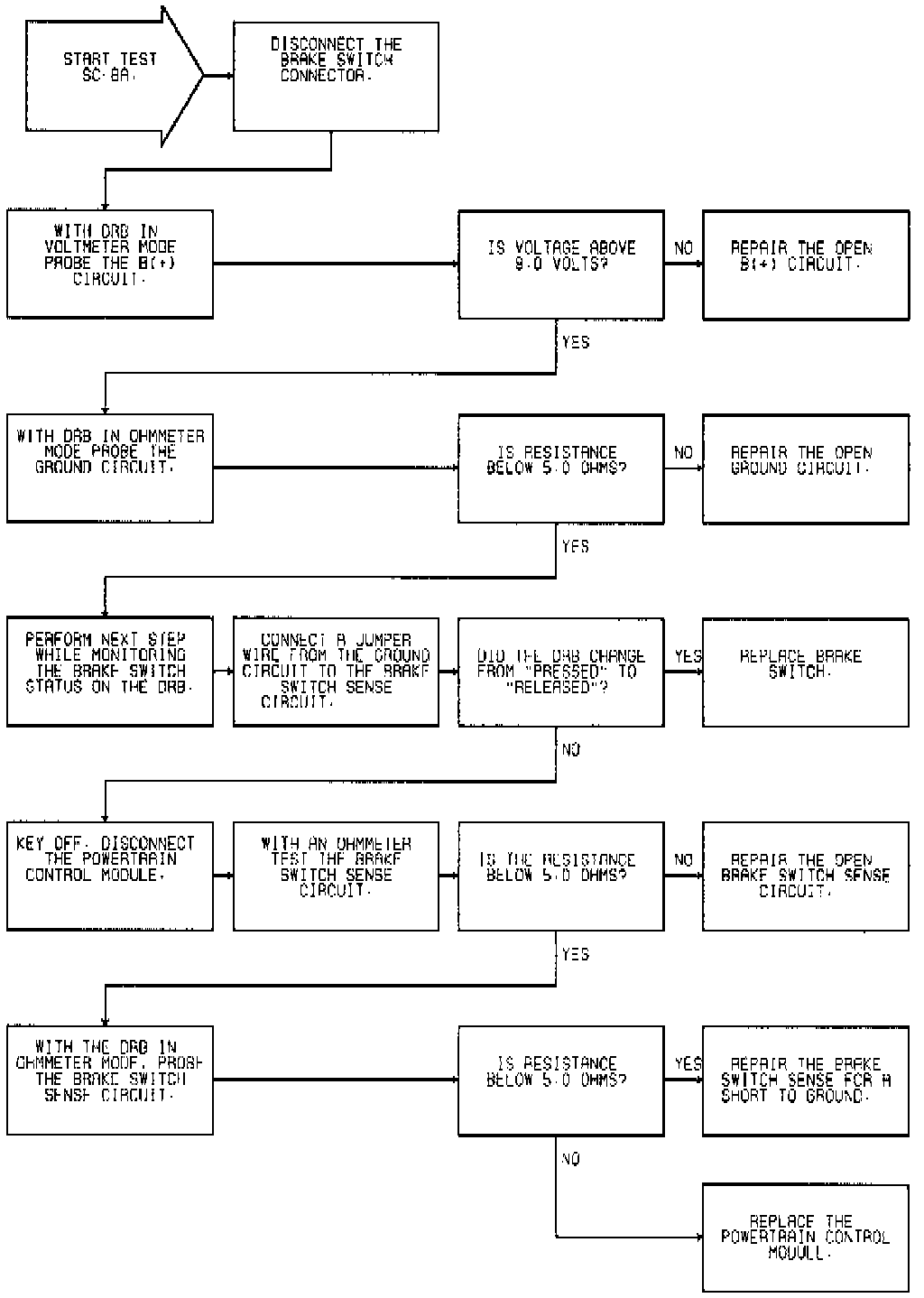

Fig. 70 Test SC-8A: Speed Control Brake Switch Output Inspection:
