Sebring Convertible L4-2.4L DOHC
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Speed Control (SC) Tests
>>
SC-8A Checking Speed Control ON/OFF Switch
SC-8A Checking Speed Control ON/OFF Switch

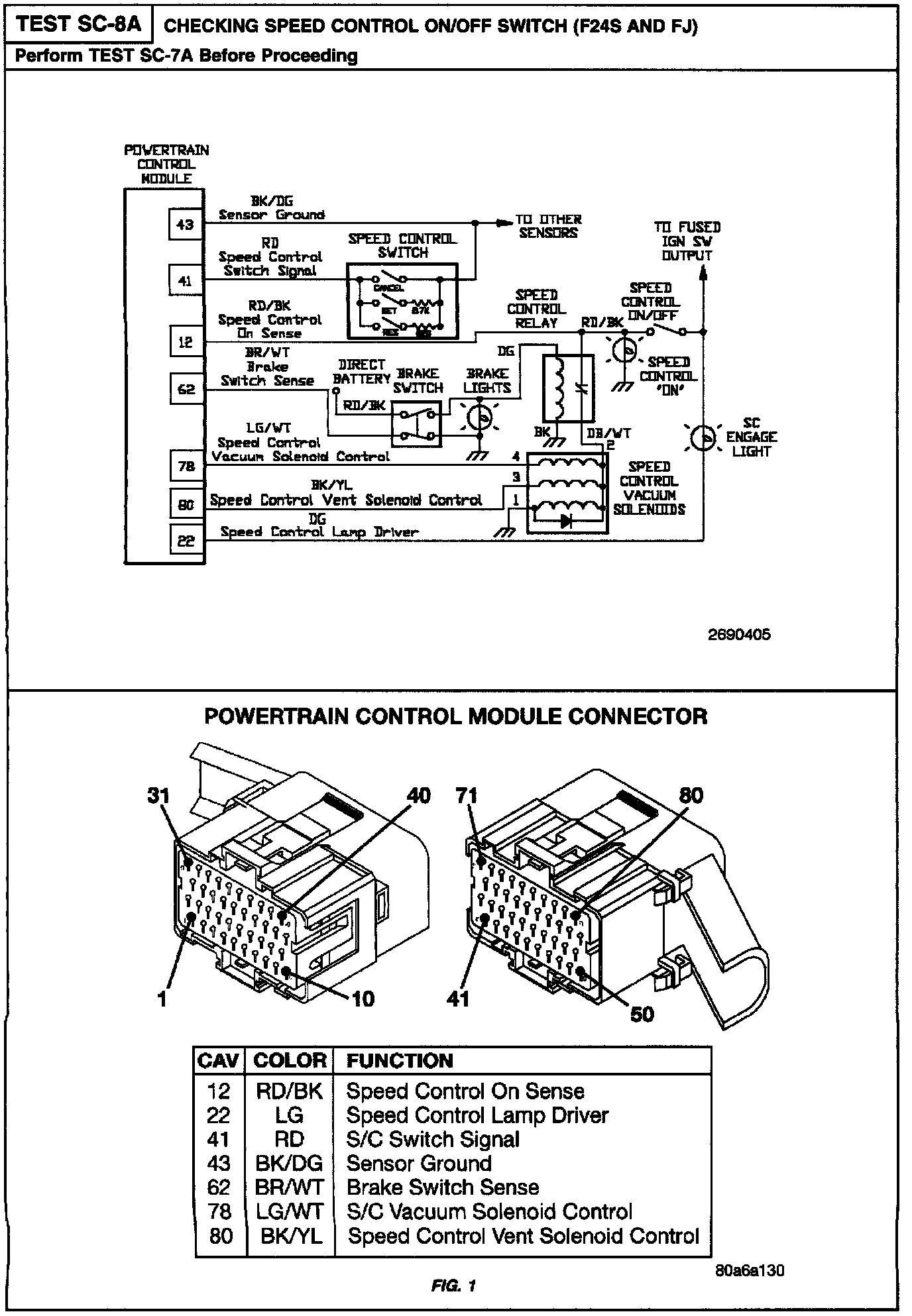

Related Images:

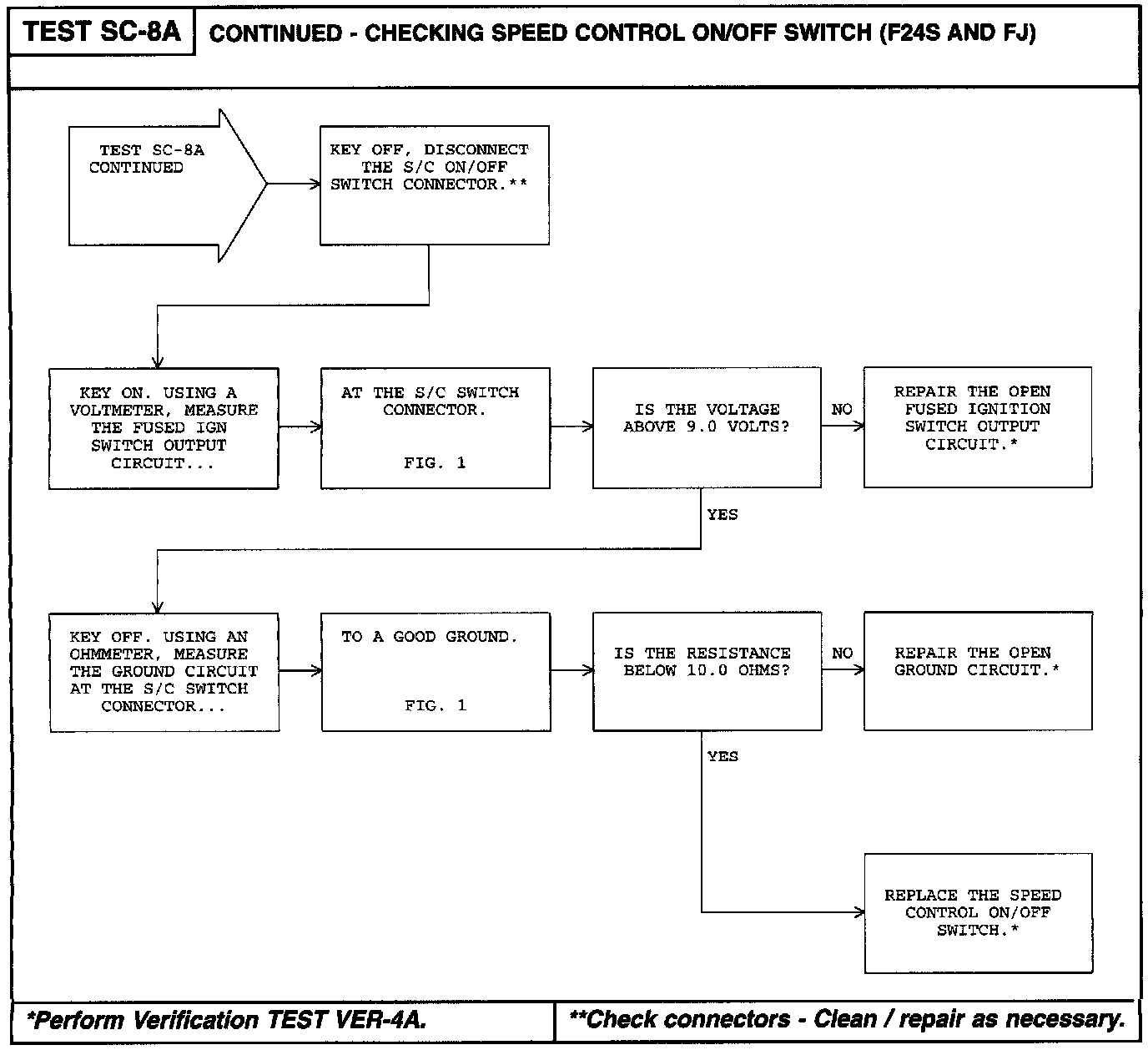

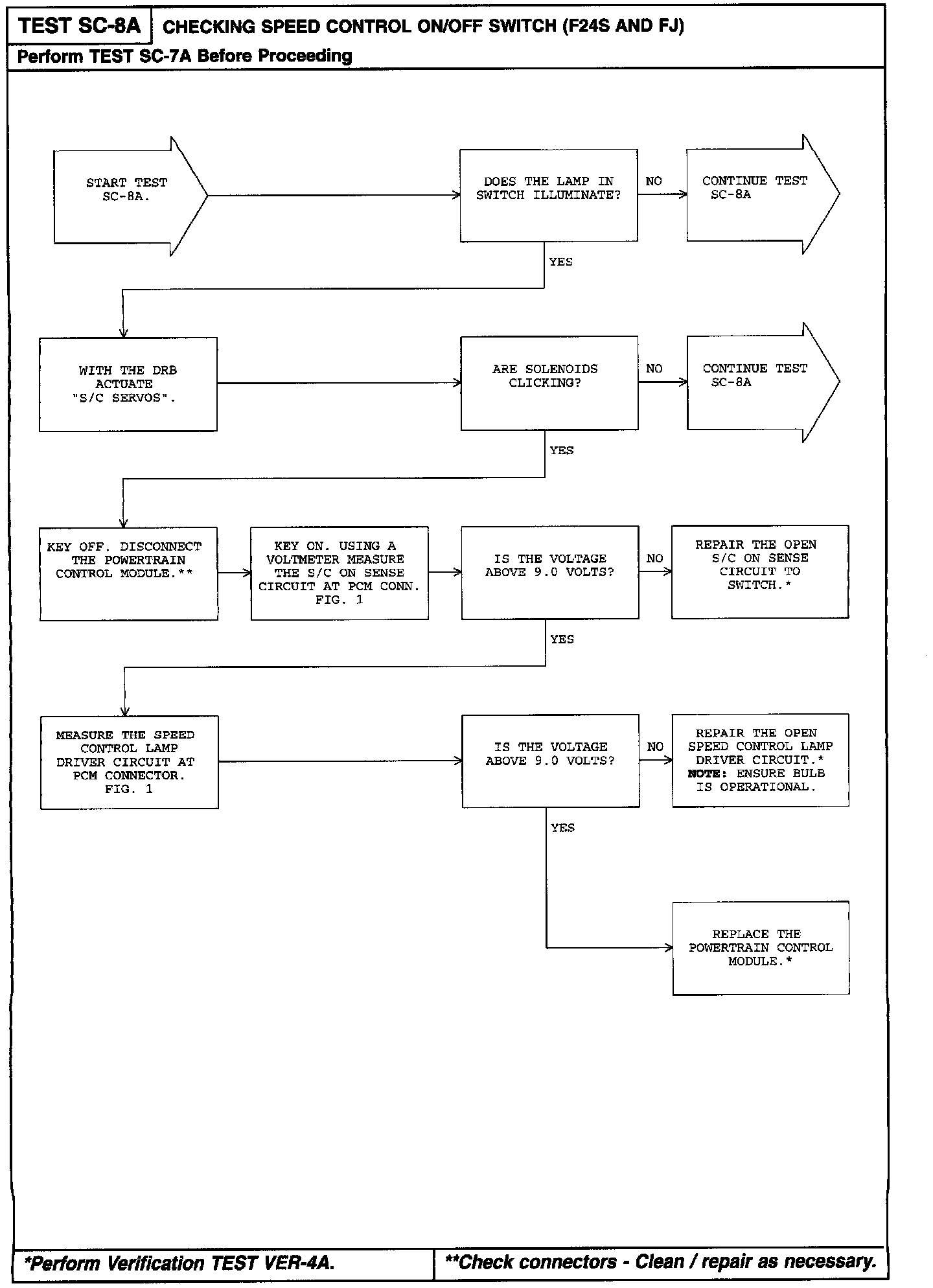

Flow Chart:
Related Images:
Flow Chart:
