Sebring Convertible L4-2.4L DOHC
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Speed Control (SC) Tests
>>
SC-7A Speed Control On/Off Switch Inspection
SC-7A Speed Control On/Off Switch Inspection

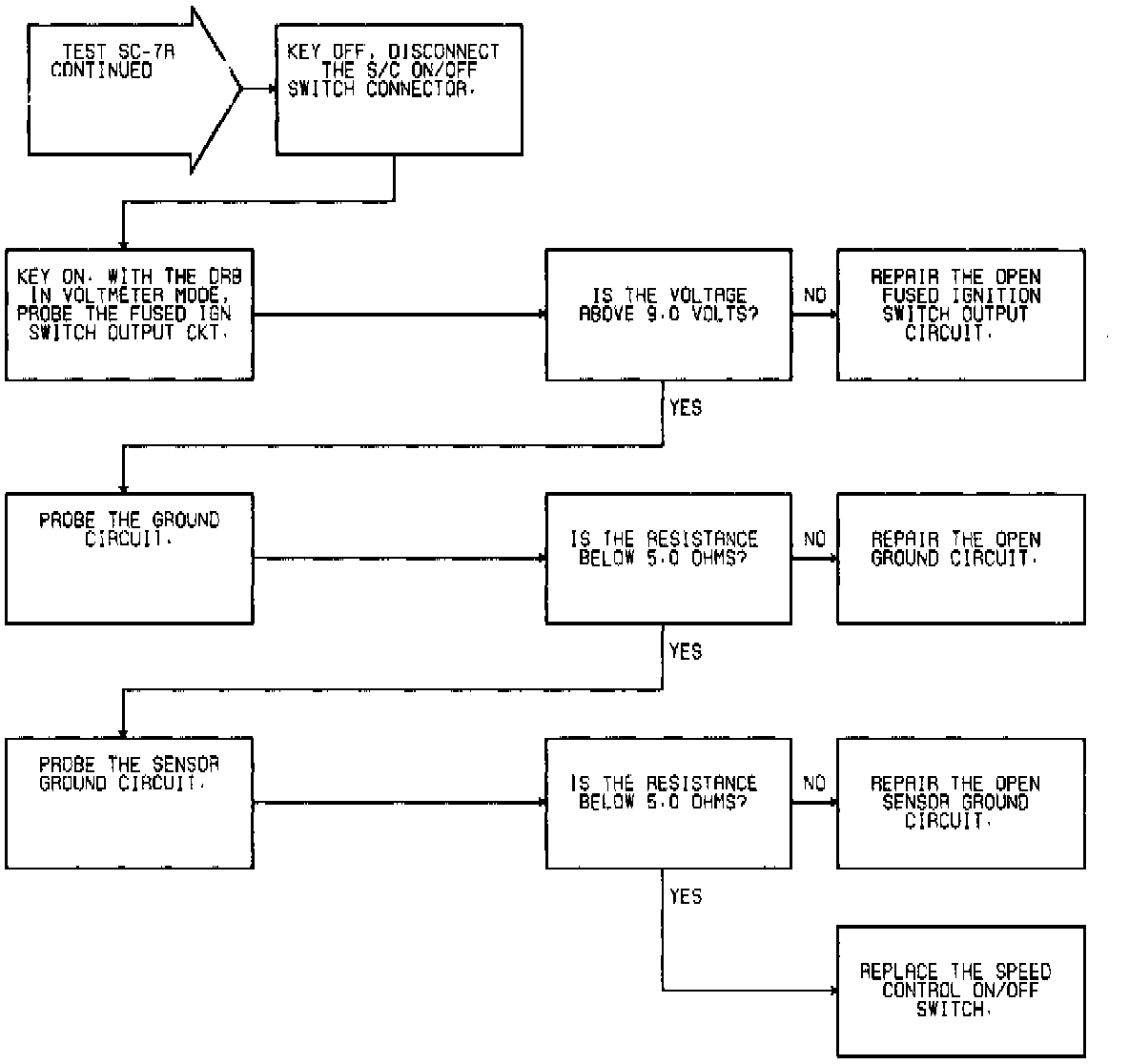

Fig. 69 Test SC-7A: Speed Control On/Off Switch Inspection (Part 2 Of 2):

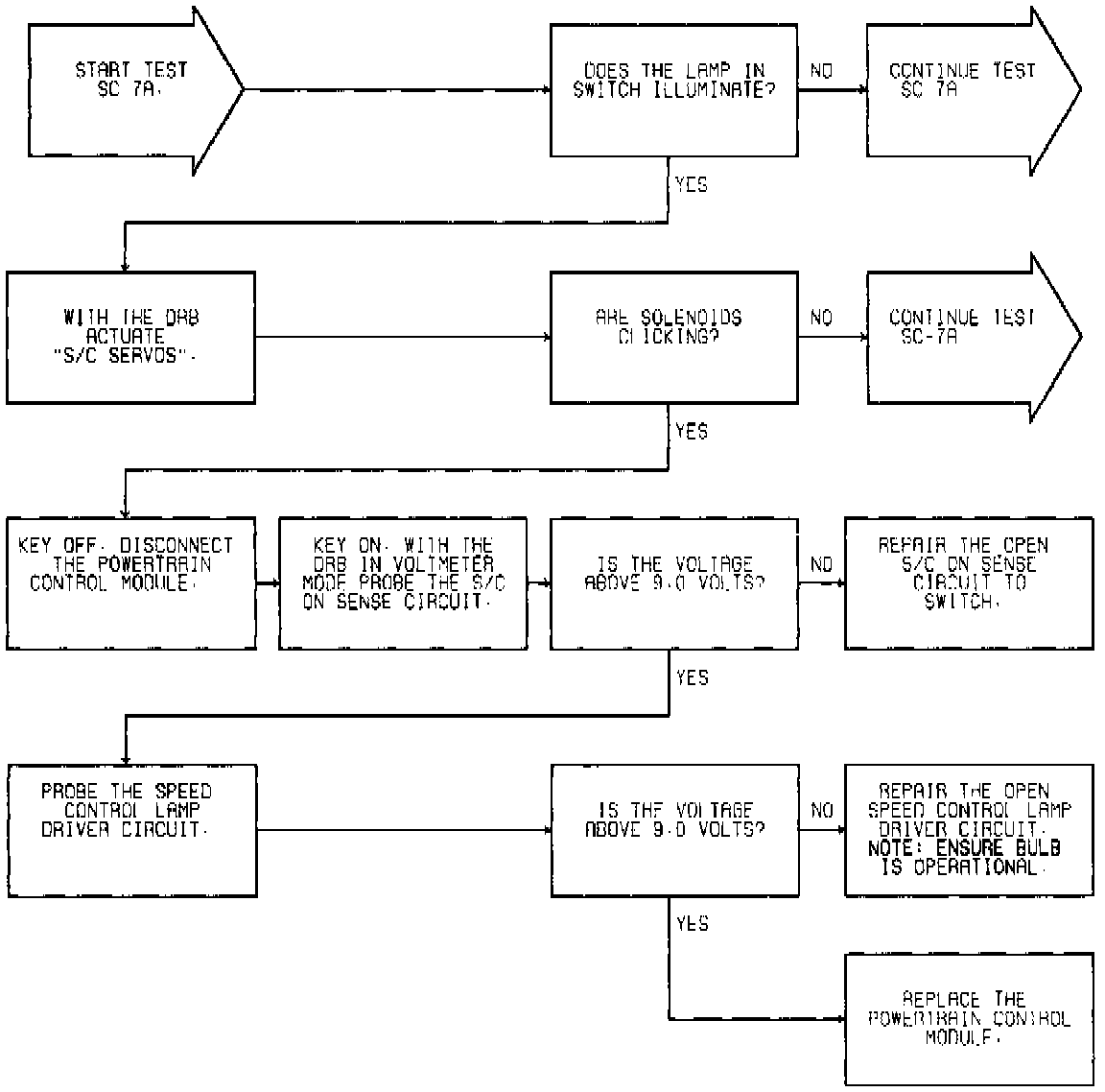

Fig. 69 Test SC-7A: Speed Control On/Off Switch Inspection (Part 1 Of 2):
