Home >> Chrysler >> 1996 >> Sebring Convertible L4-2.4L DOHC >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Speed Control (SC) Tests >> SC-6B Speed Control Operation Inspection

SC-6B Speed Control Operation Inspection

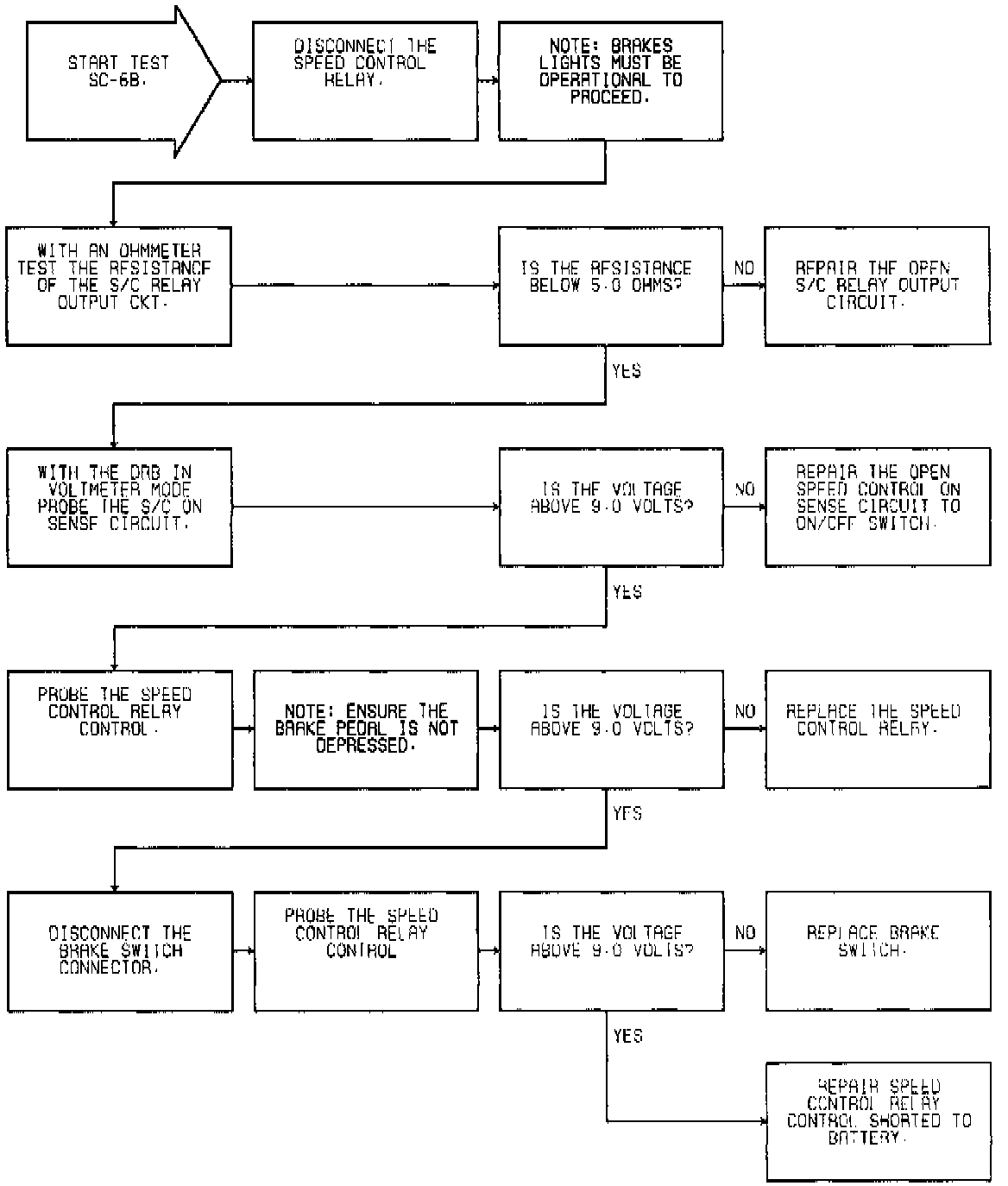

Fig. 67 Test SC-6B: Speed Control Operation Inspection:
