SC-3A Brake Switch Sense Inspection
SC-3A Brake Switch Sense Inspection

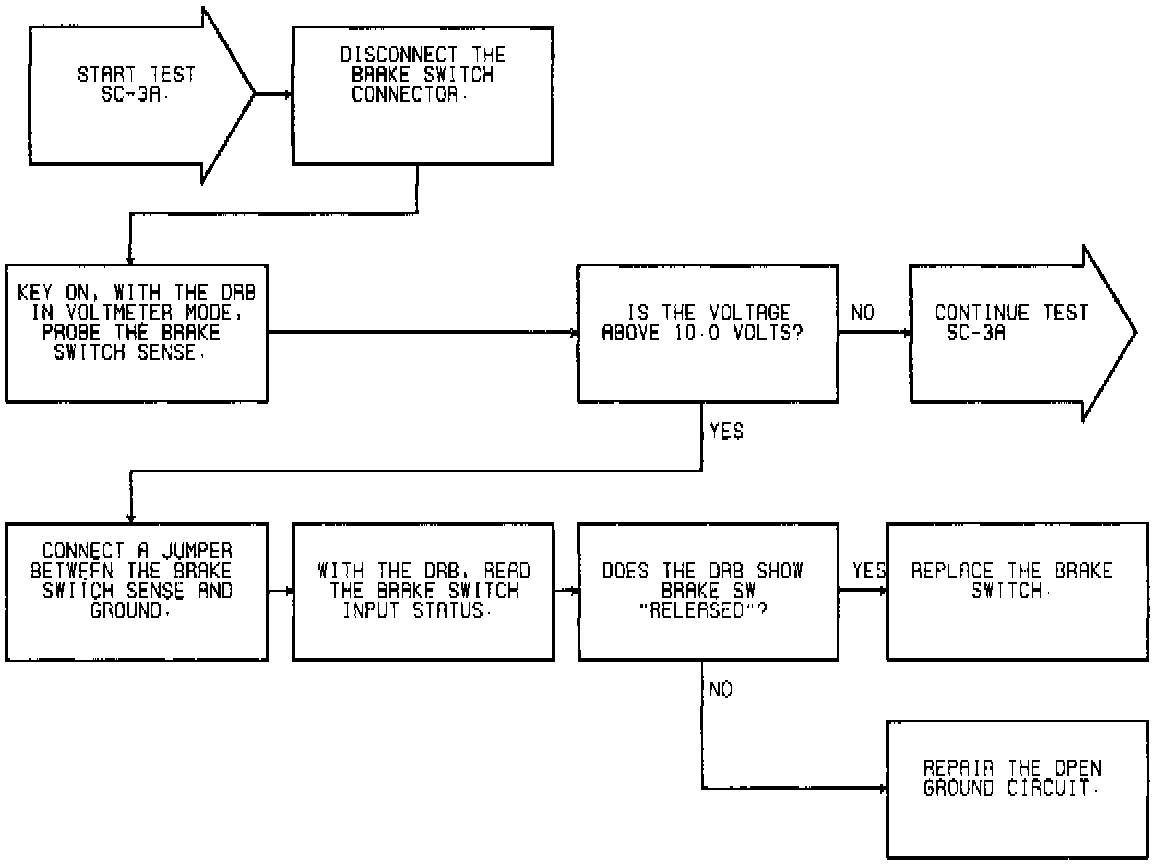

Fig. 62 Test SC-3A: Speed Control Brake Switch Output Inspection (Part 1 Of 2):

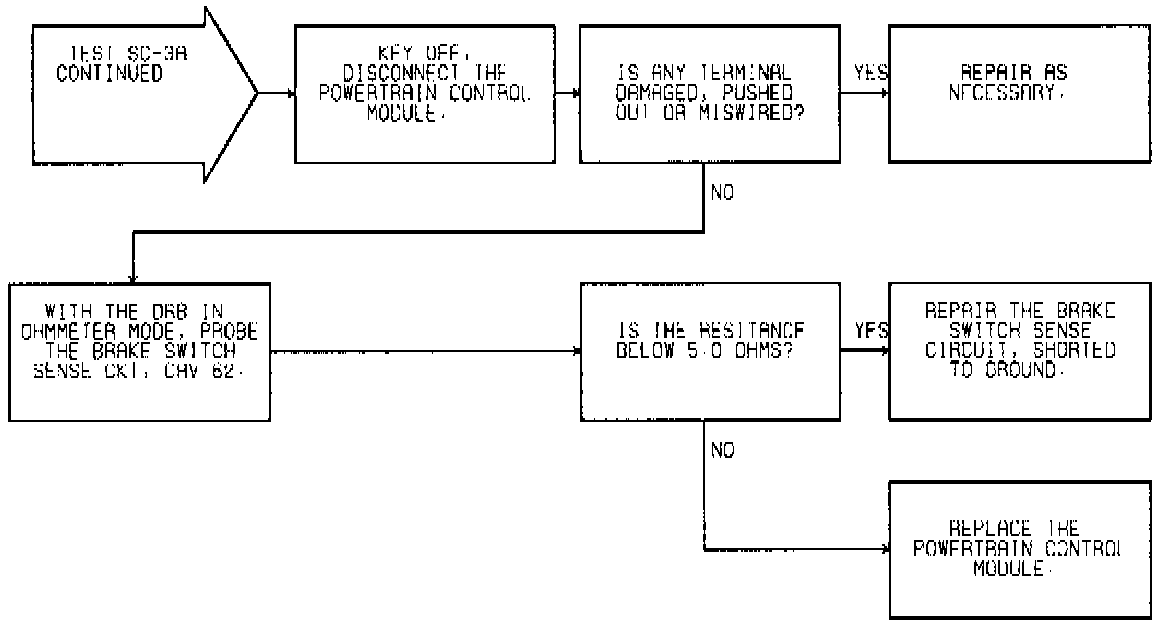

Fig. 62 Test SC-3A: Speed Control Brake Switch Output Inspection (Part 2 Of 2):
