Home >> Chrysler >> 1996 >> Sebring Convertible L4-2.4L DOHC >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Speed Control (SC) Tests >> SC-2A Checking Speed Control On/Off Switch

SC-2A Checking Speed Control On/Off Switch

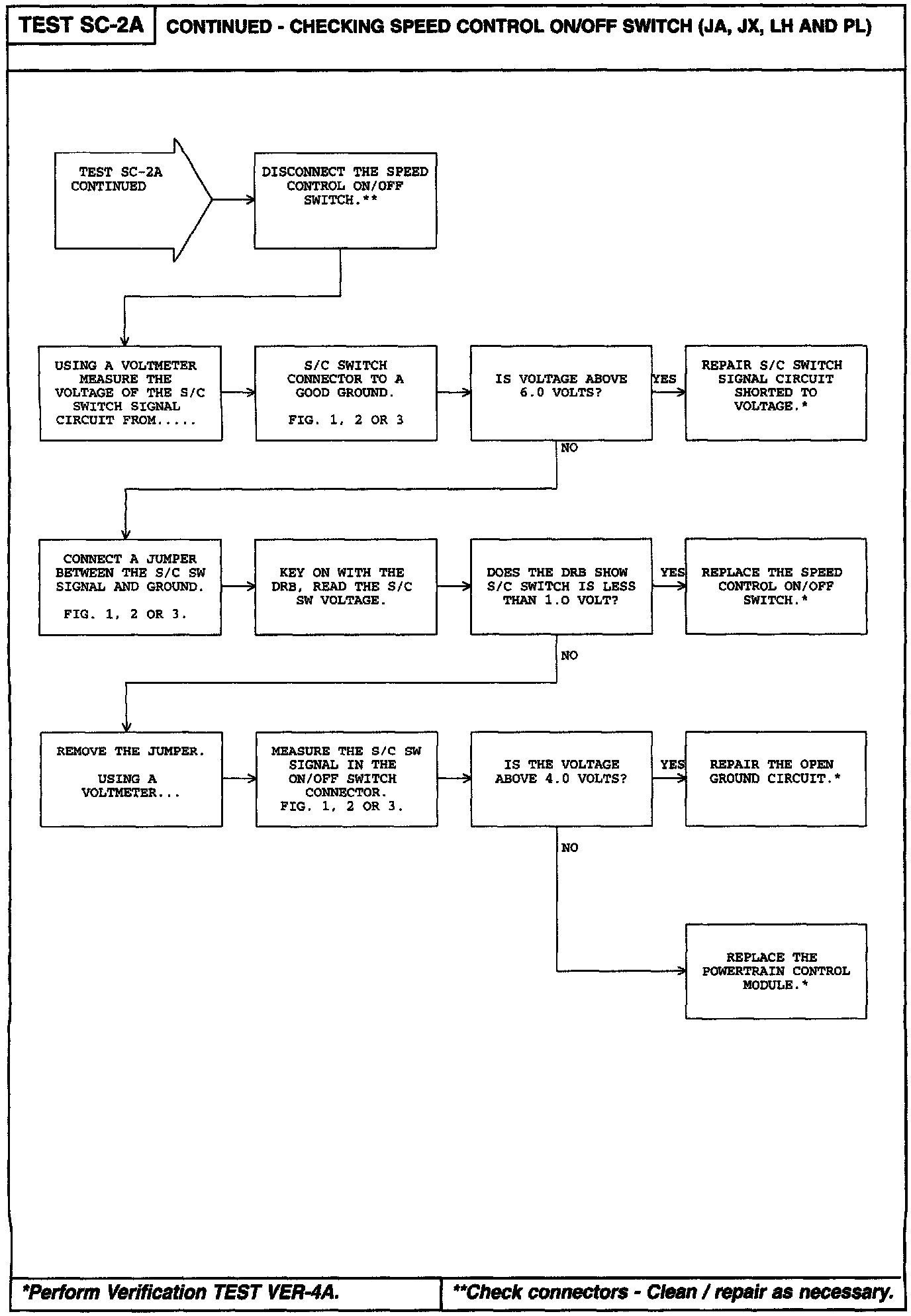

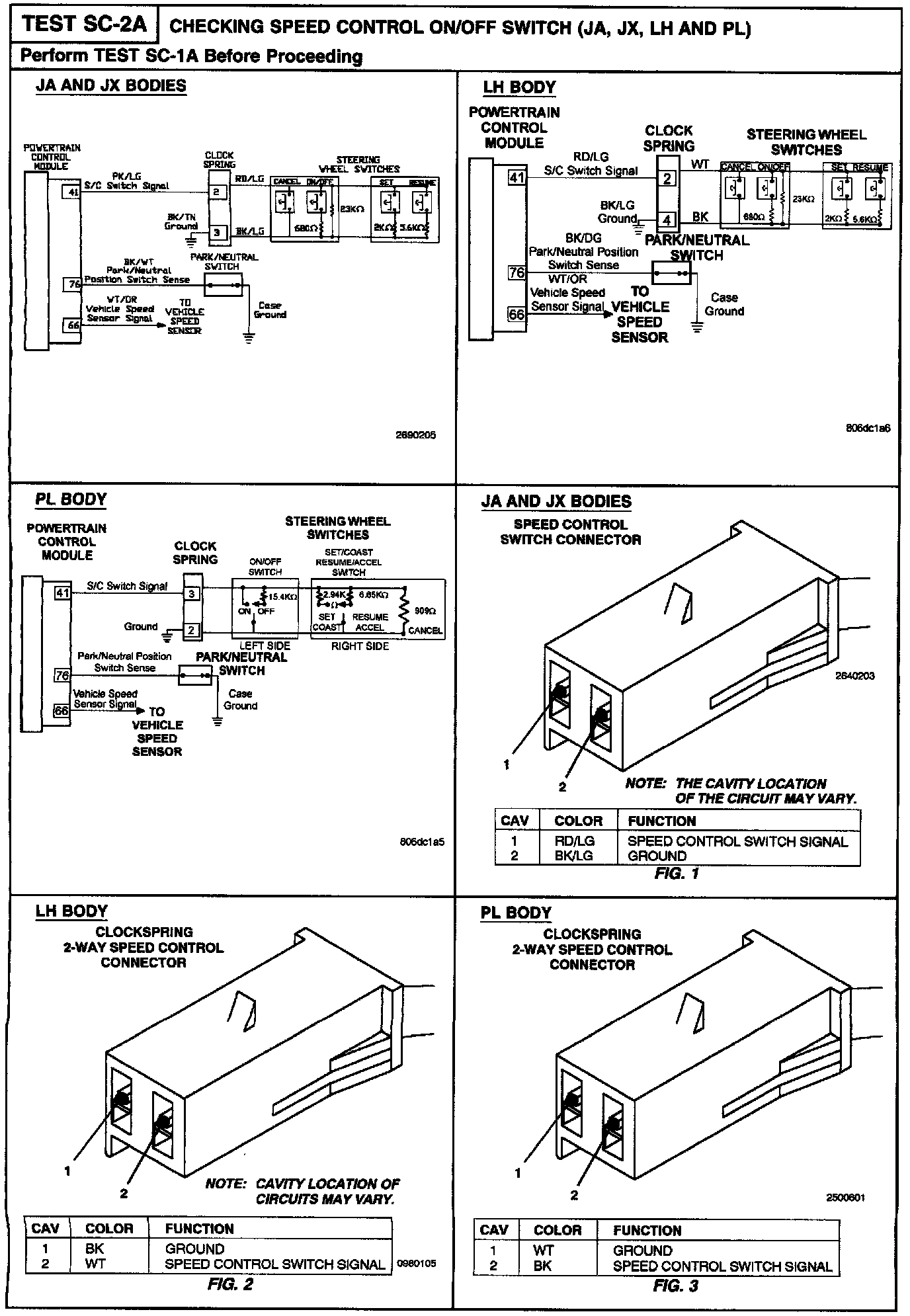

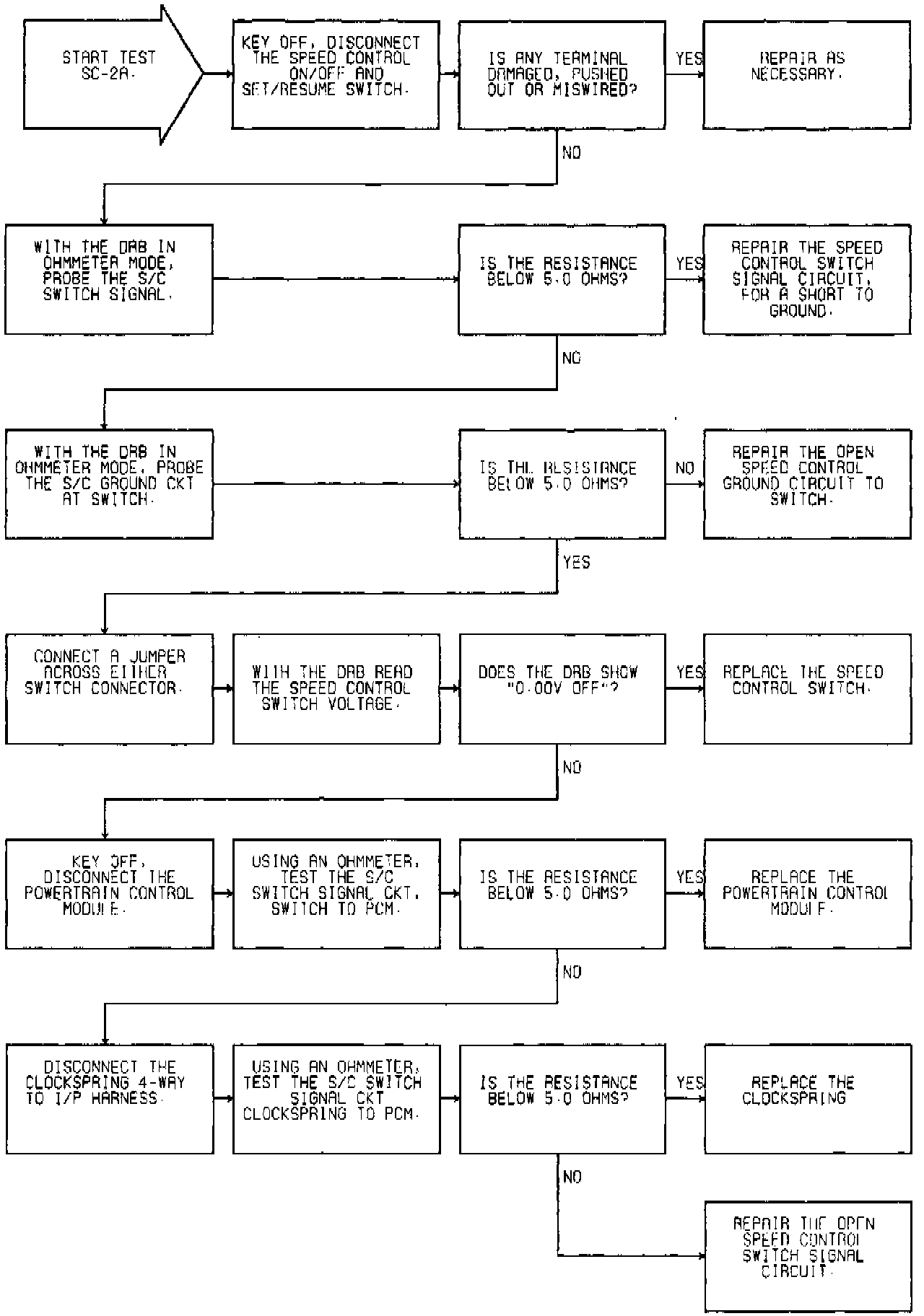

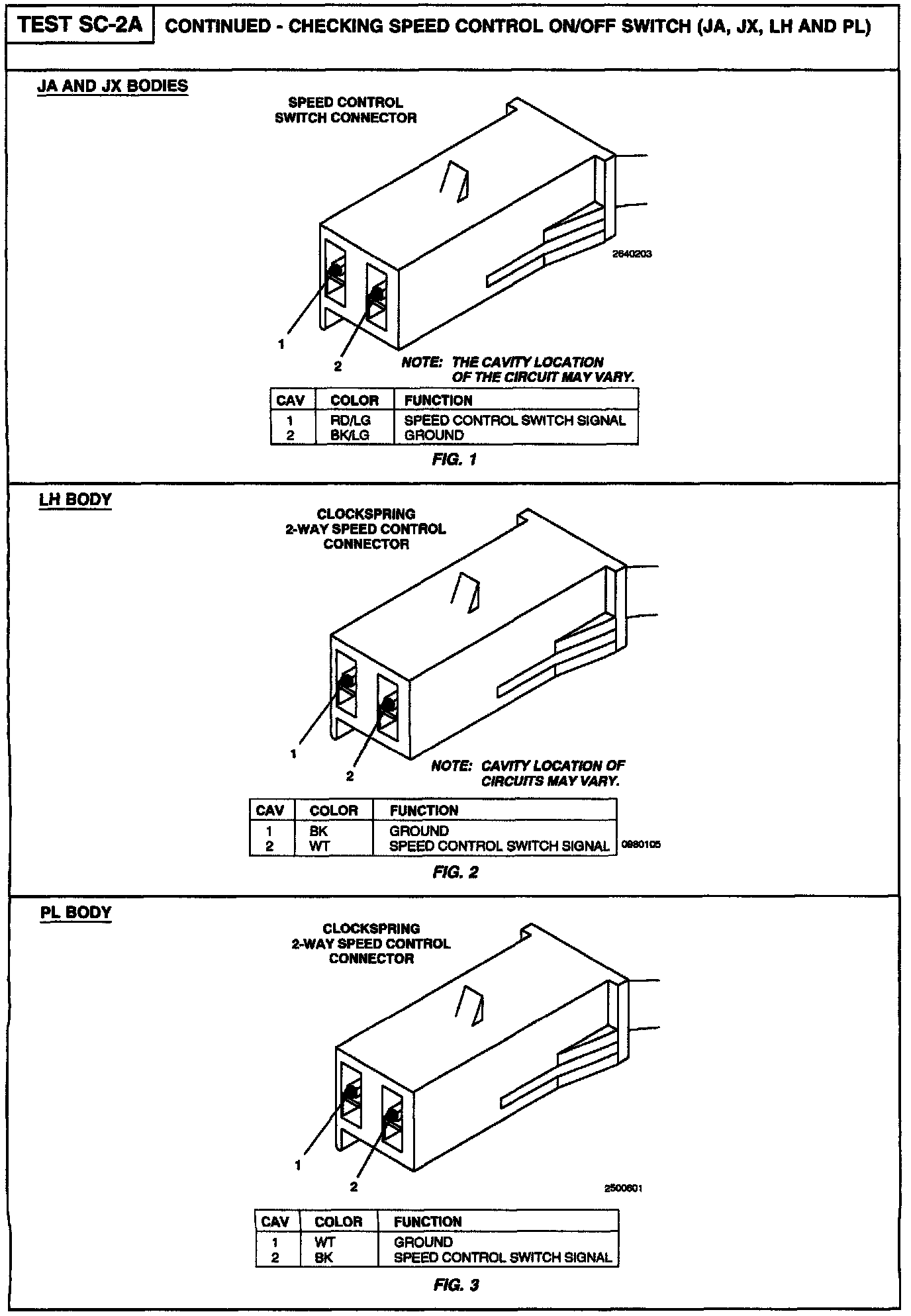

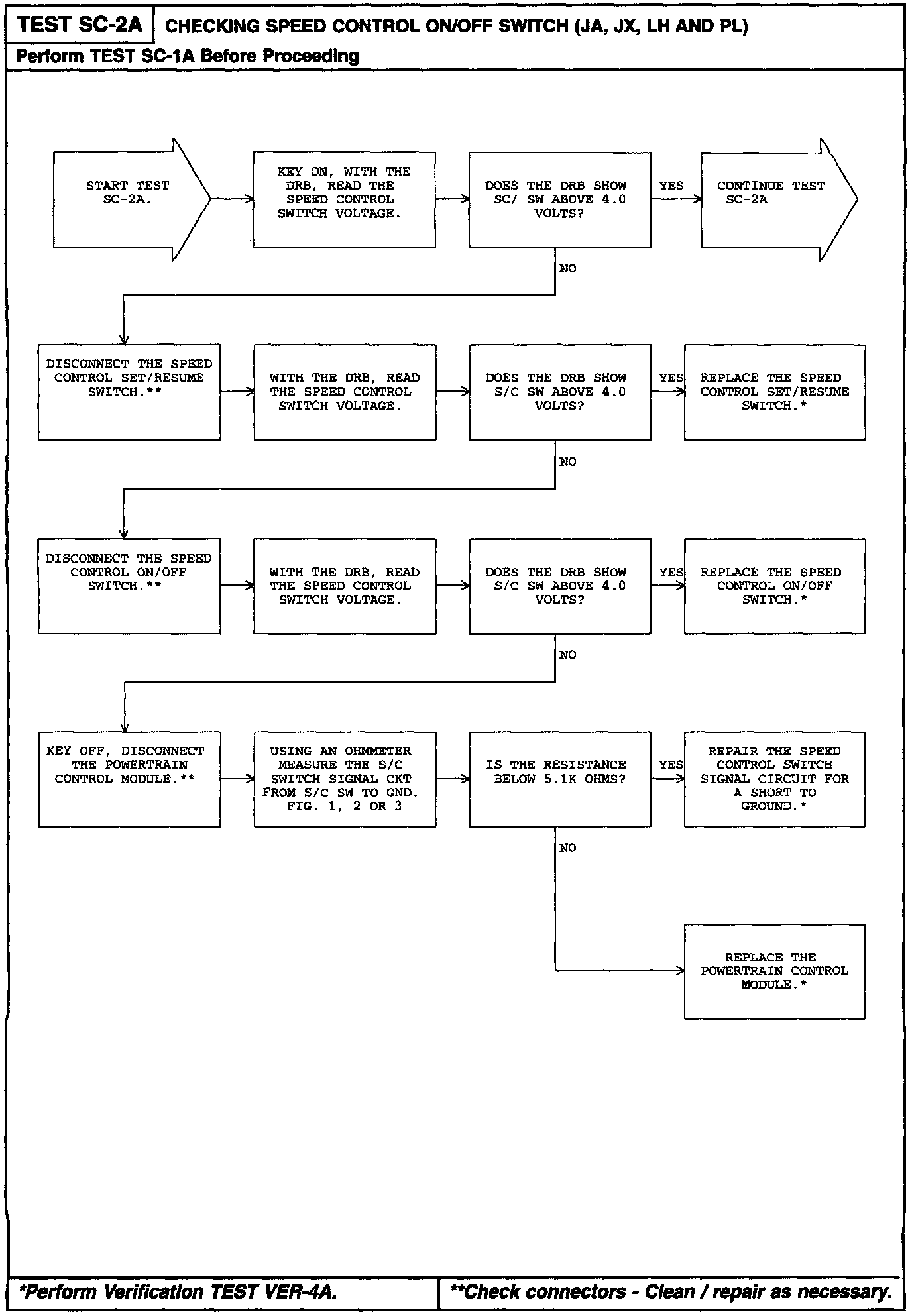

Fig. 61 Test SC-2A: Speed Control On/Off Switch Inspection:
