SC-1B Speed Control Operation Inspection

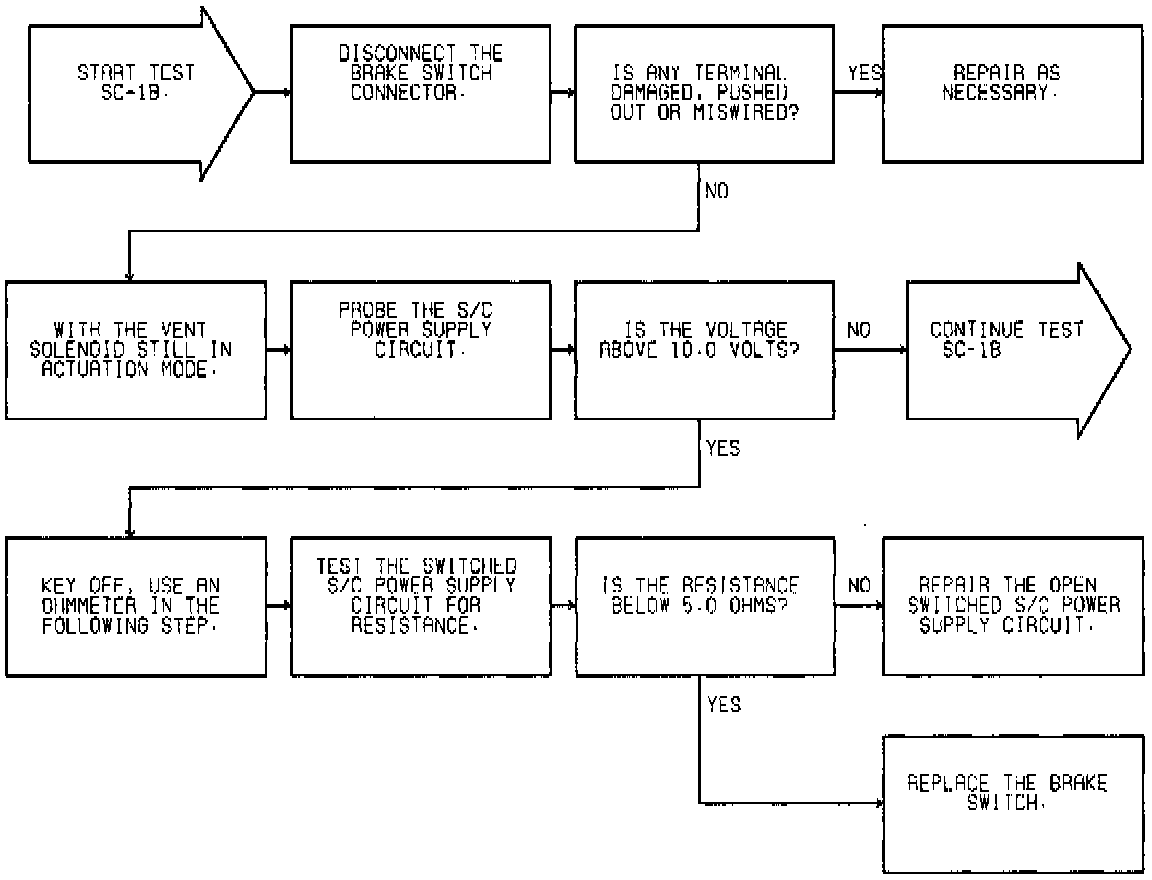

Fig. 60 Test SC-1B: Speed Control Operation Inspection (Part 1 Of 2):

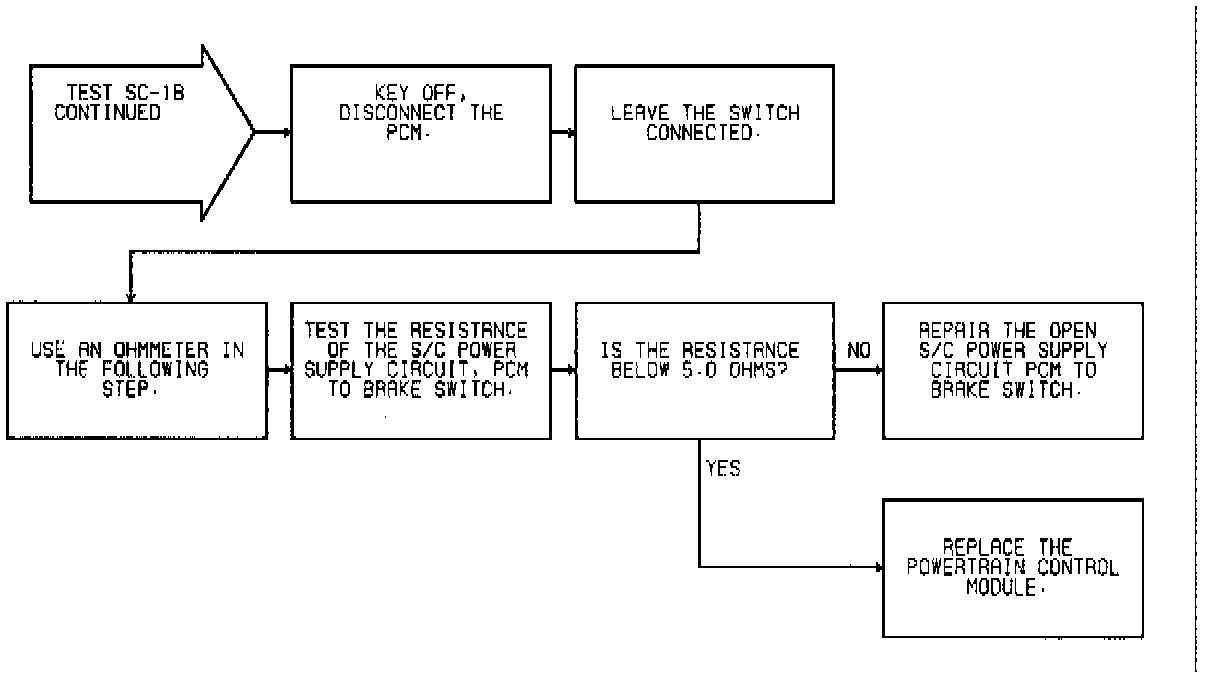

Fig. 60 Test SC-1B: Speed Control Operation Inspection (Part 2 Of 2):
