SC-10A Speed Control Relay Output Inspection

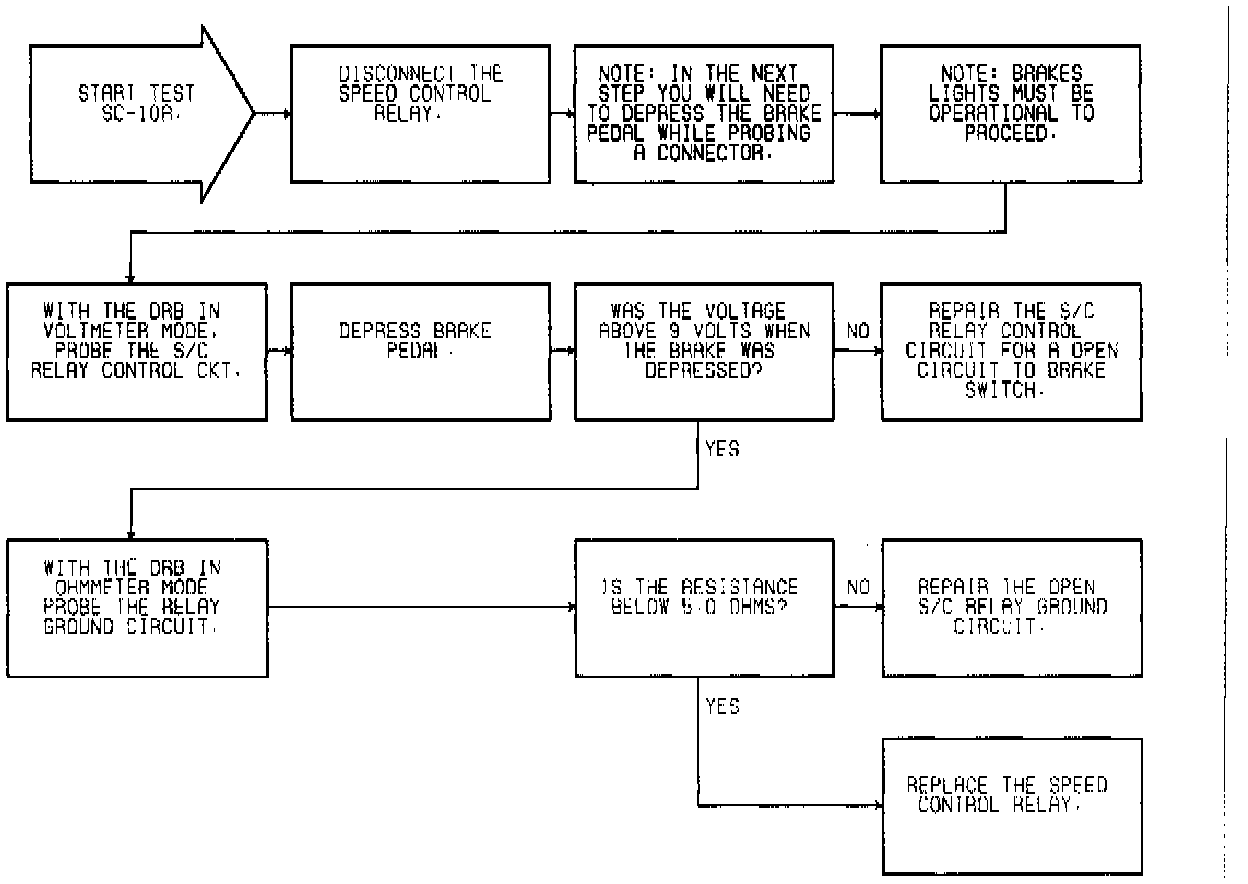

Fig. 72 Test SC-10A: Speed Control Relay Output Instpection:
