Sebring Convertible L4-2.4L DOHC
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Antilock Brakes / Traction Control Systems
>>
Test 4 - Pump/Motor Circuit
>>
Test 4D
Test 4D
Related Images:

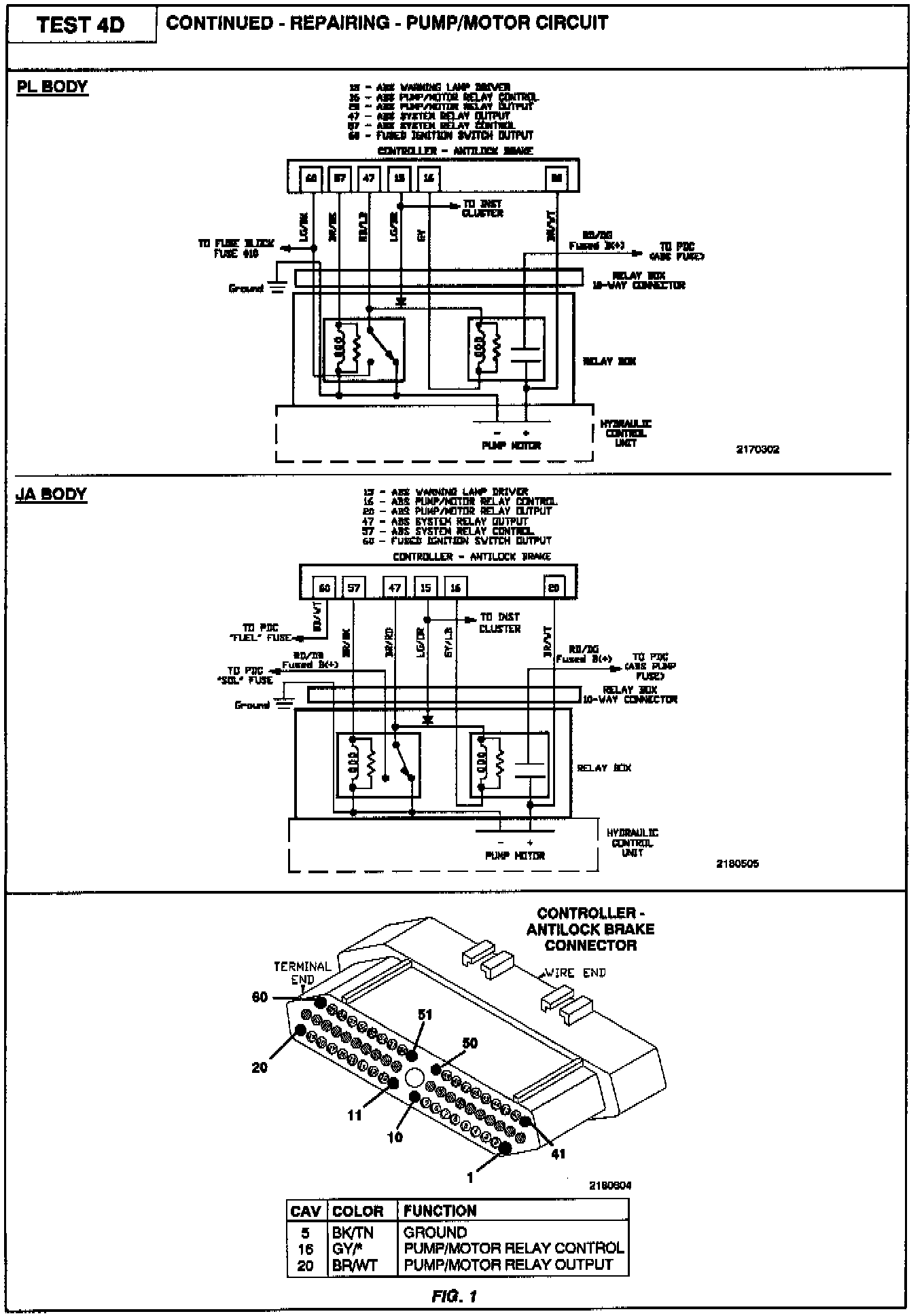

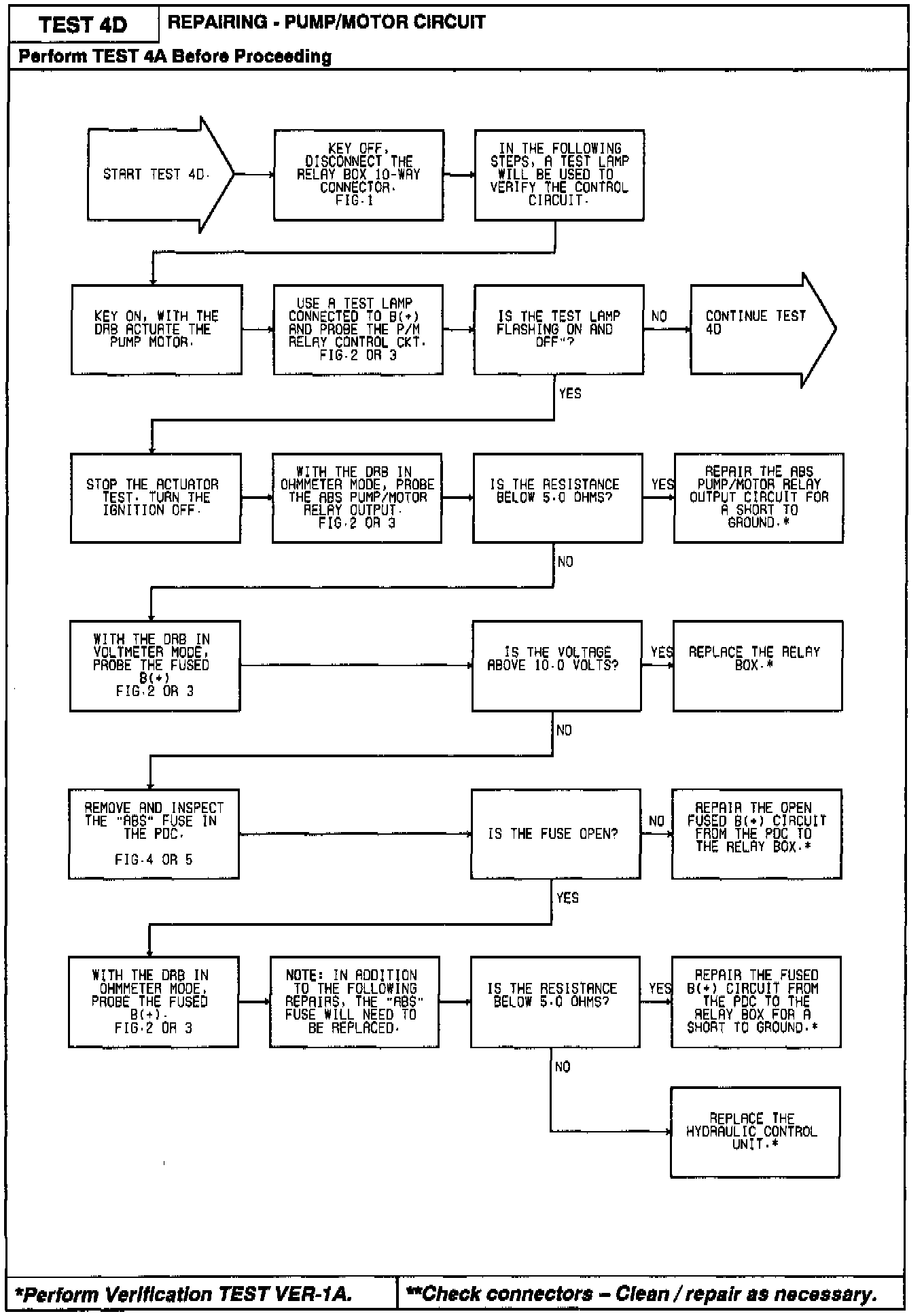

Diagnostic Chart:
Related Images:

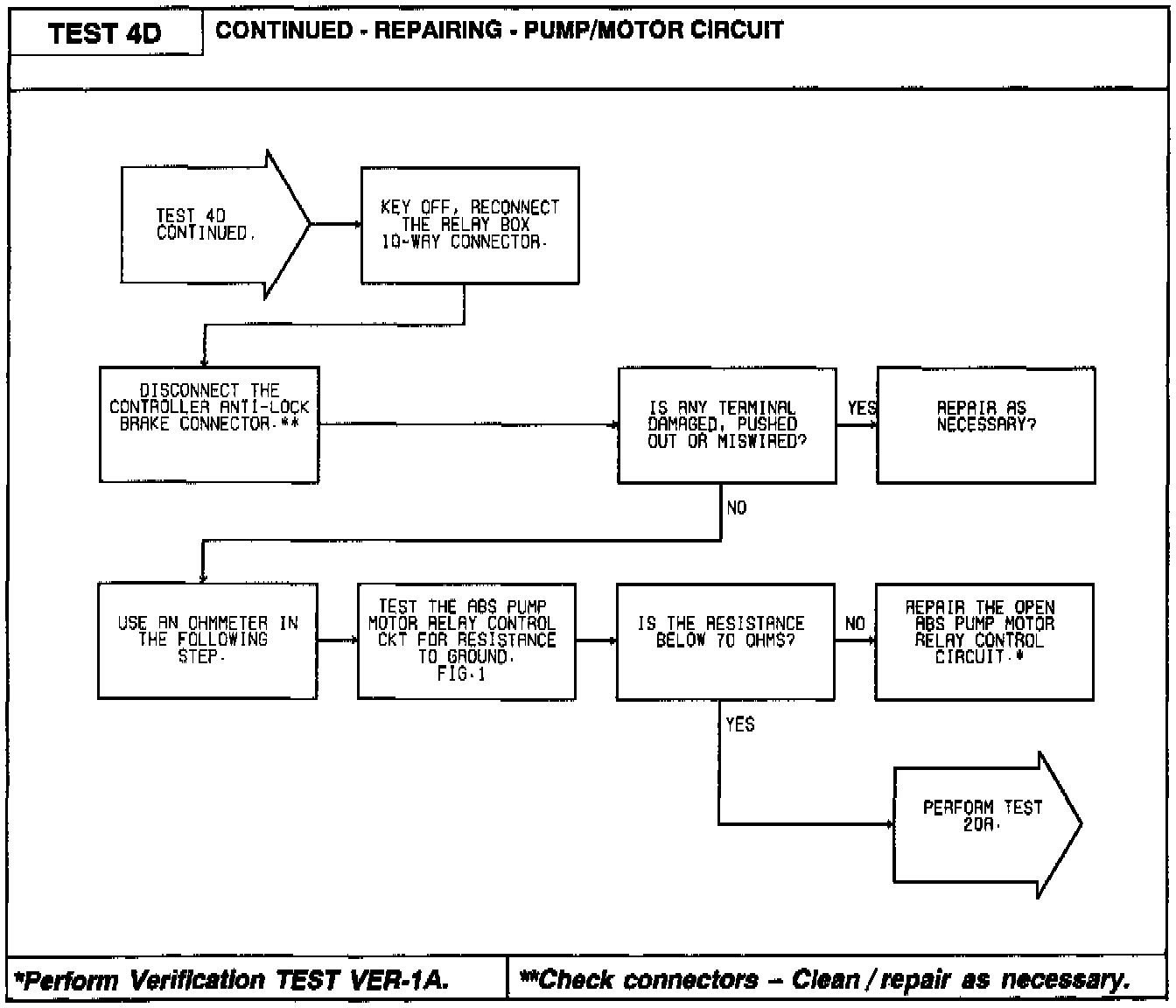

Diagnostic Chart:
