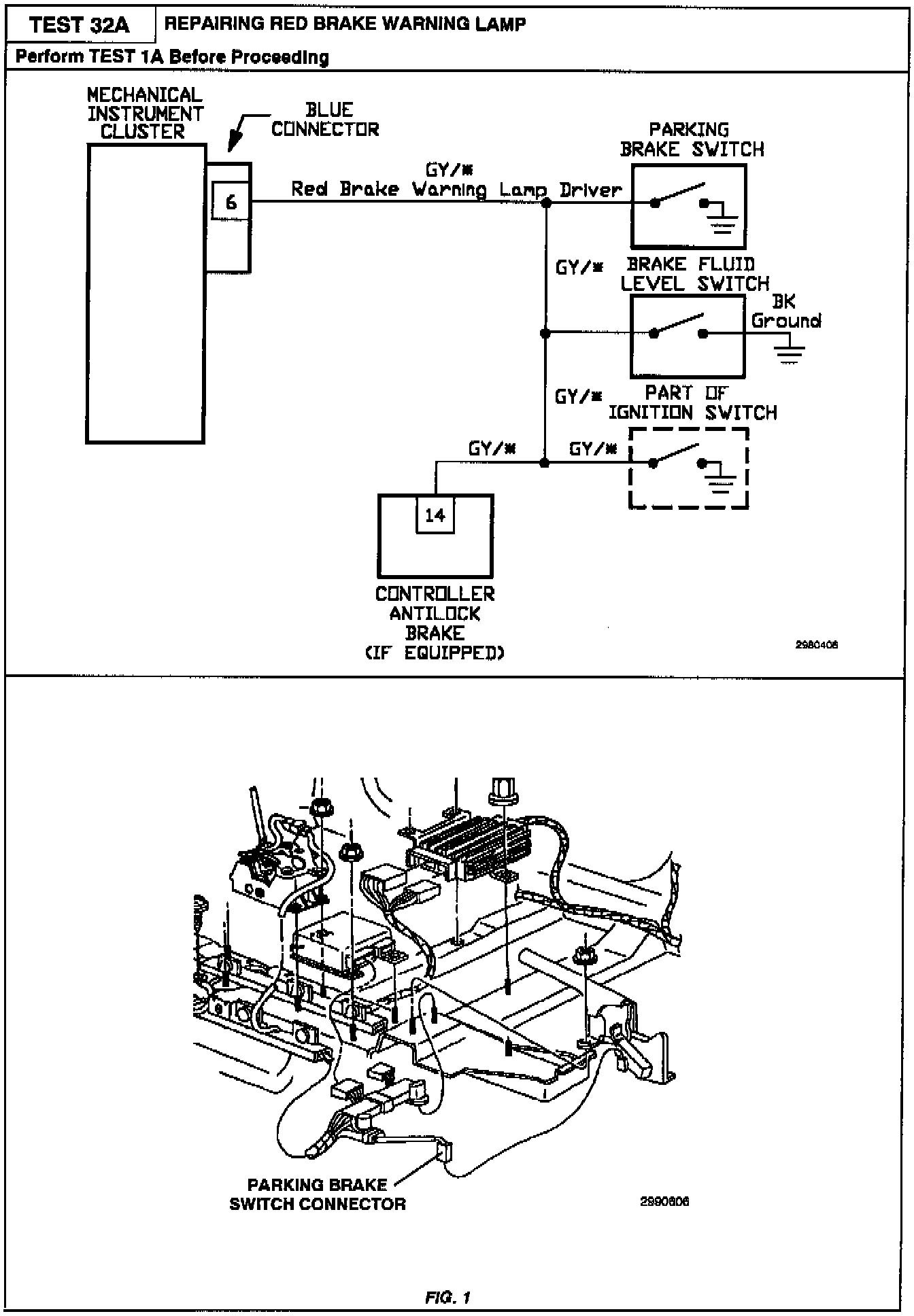

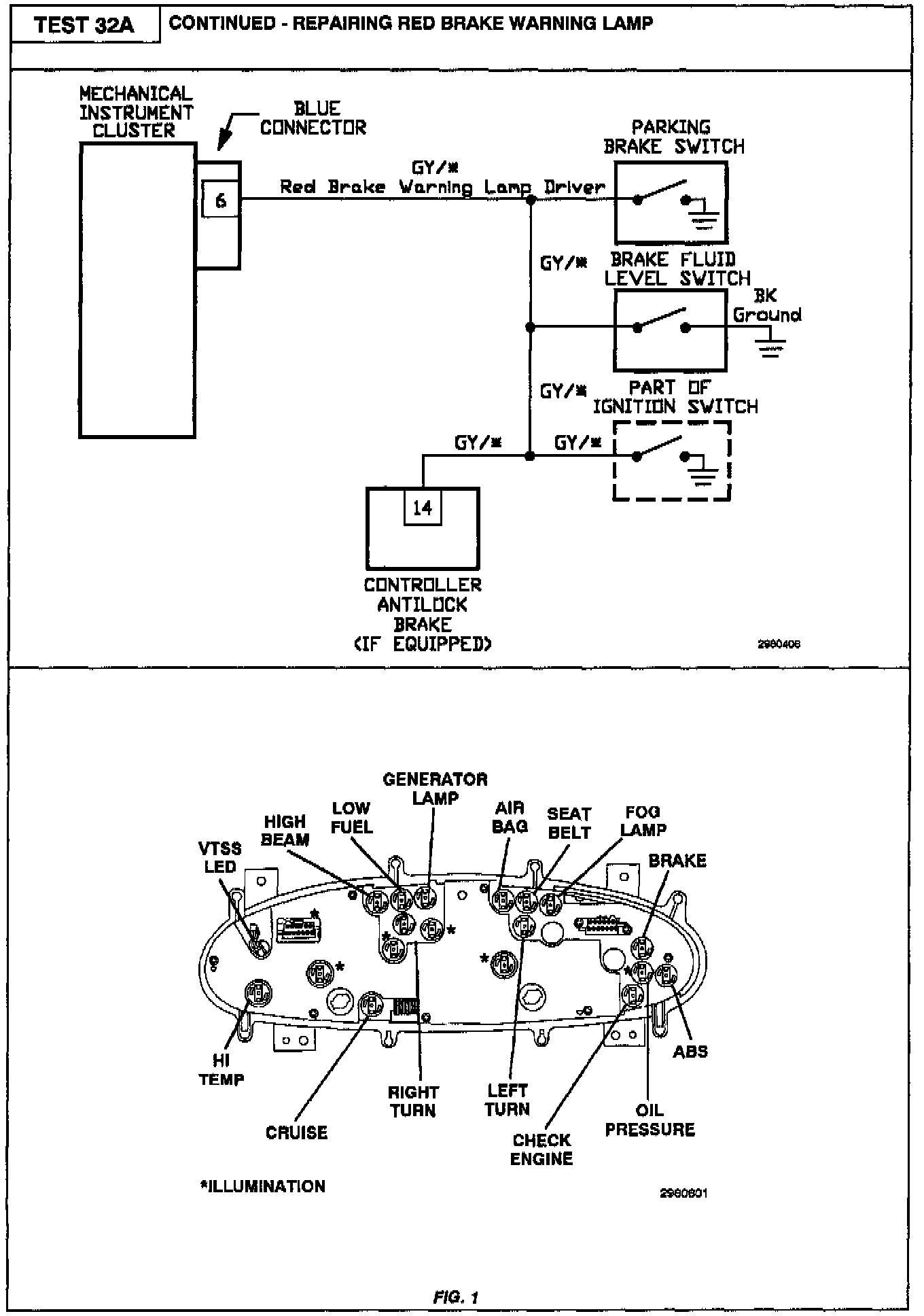

Test 32A - Red Brake Warning Lamp Stays Illuminated
Test 32A - Red Brake Warning Lamp Stays Illuminated
Related Images:

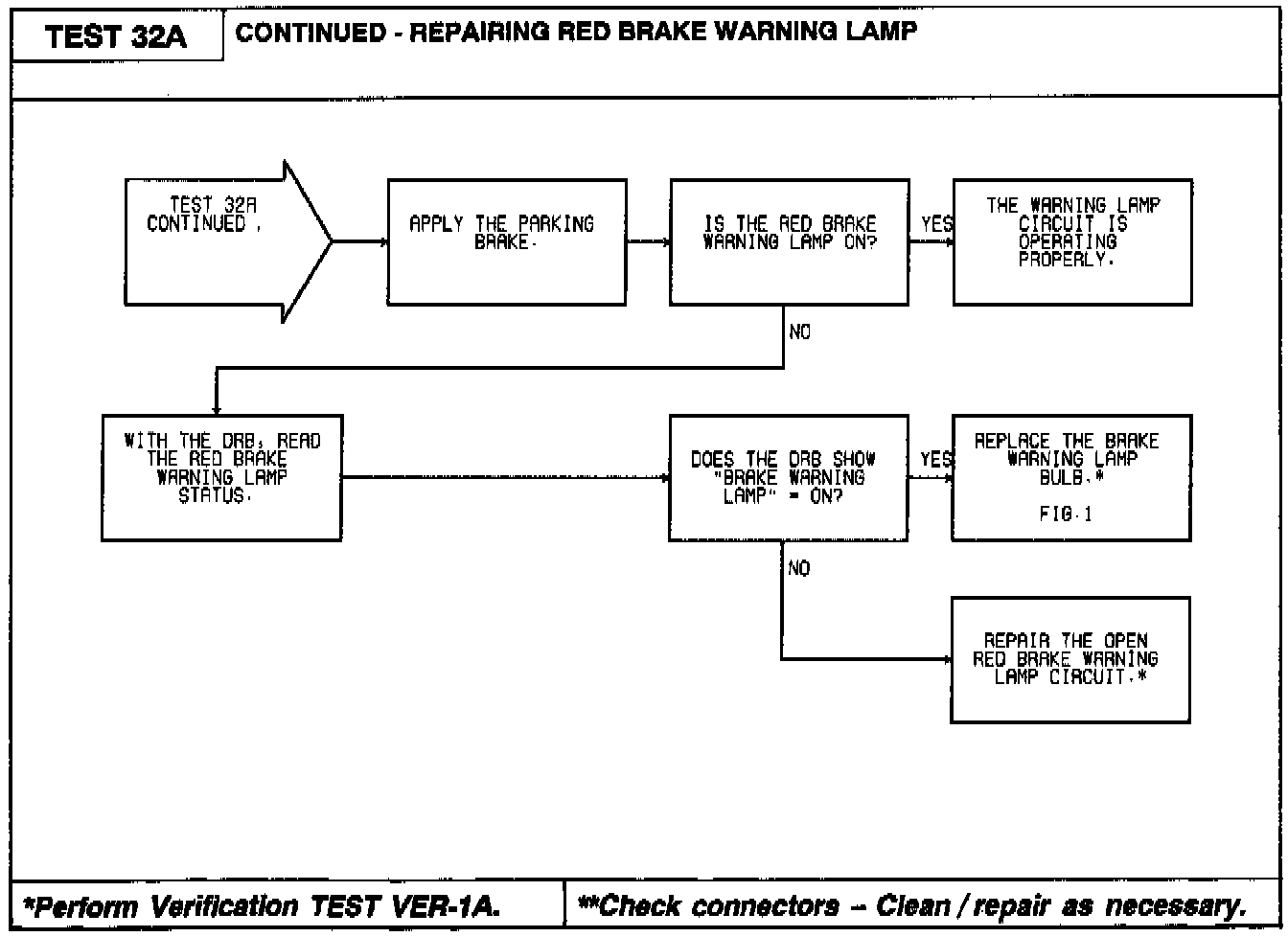

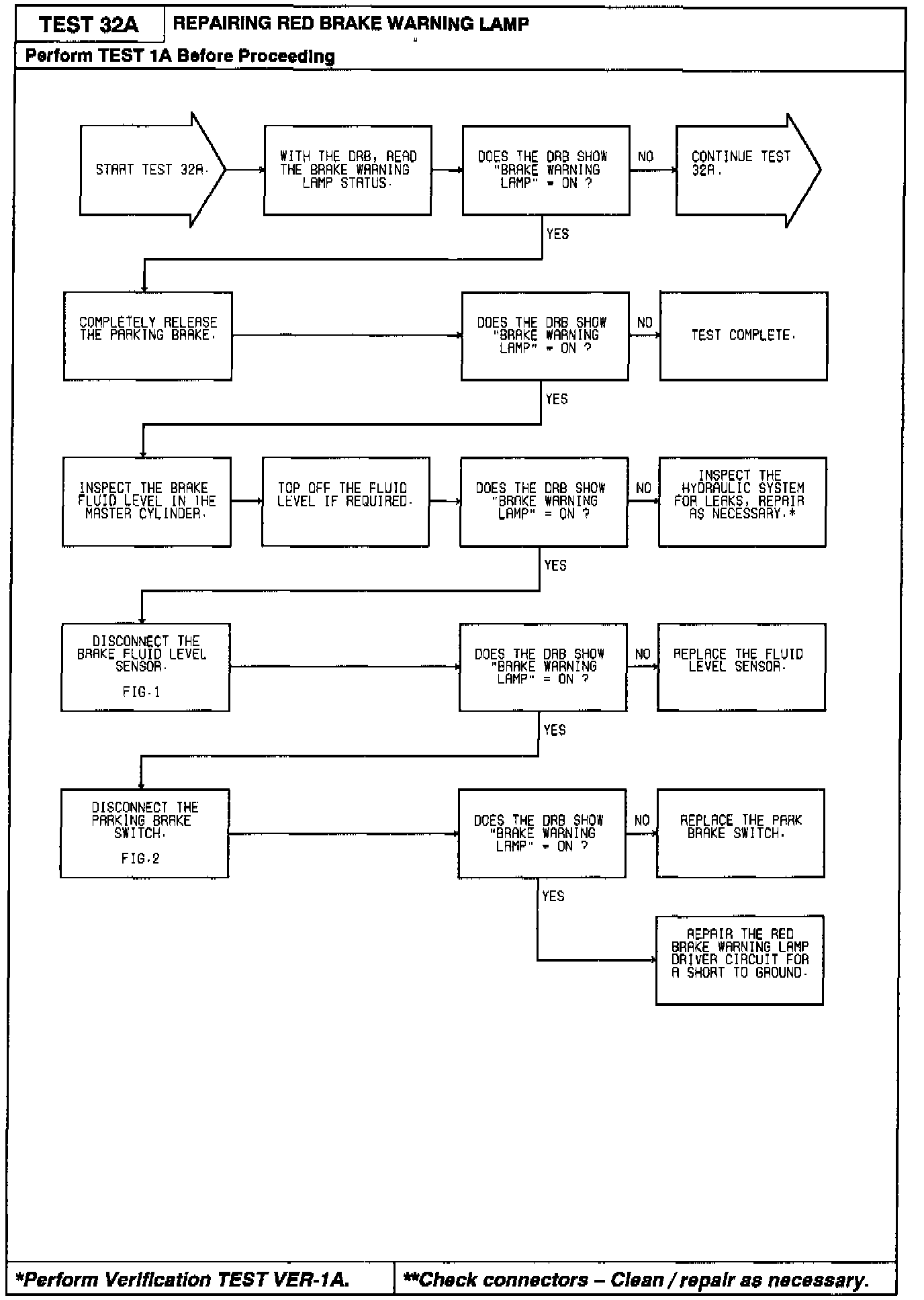

Diagnostic Chart:
Related Images:
Diagnostic Chart:
