Test 2F - R/R Decay Solenoid Control Circuit
Test 2F - R/R Decay Solenoid Control Circuit

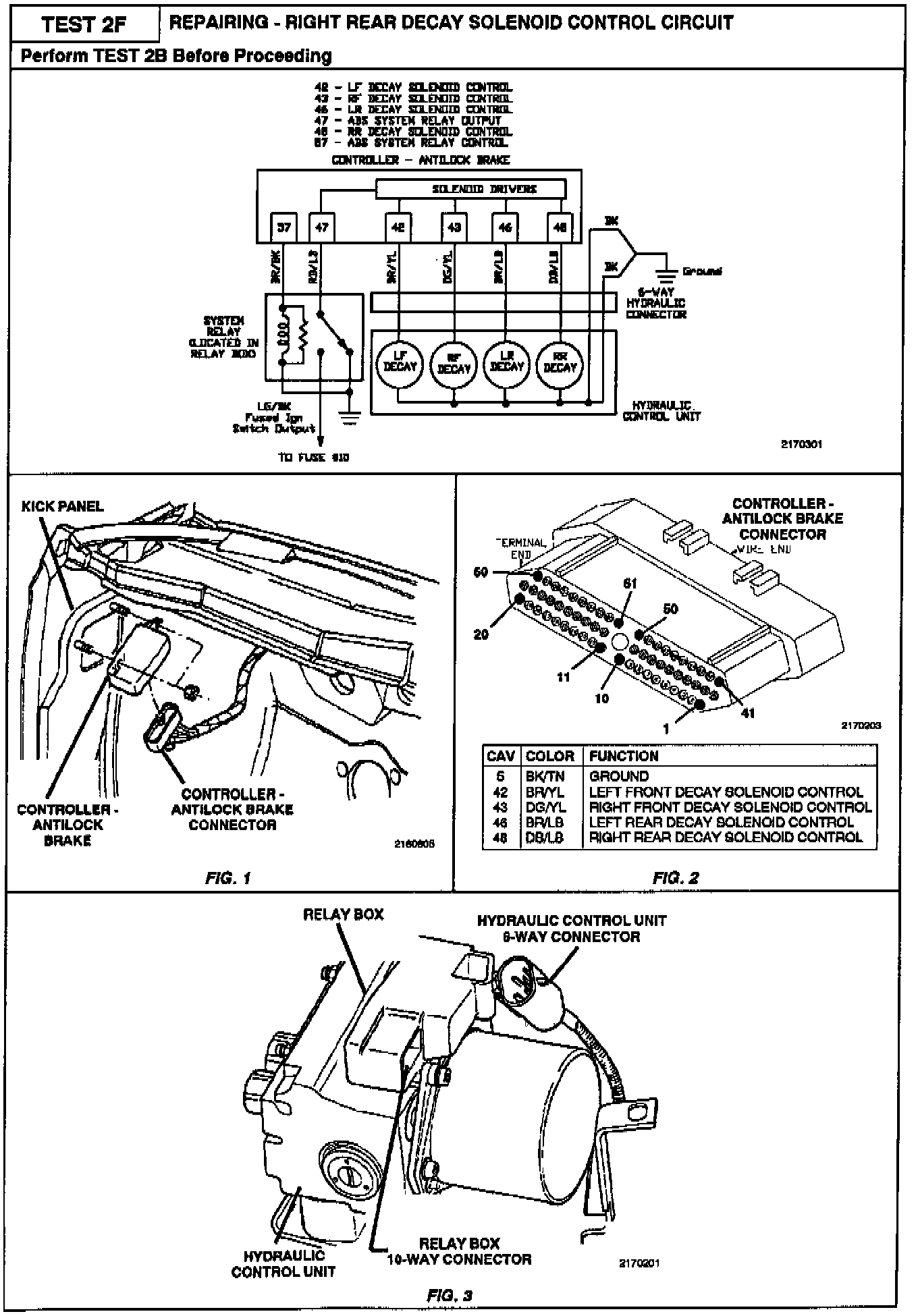

Related Images:

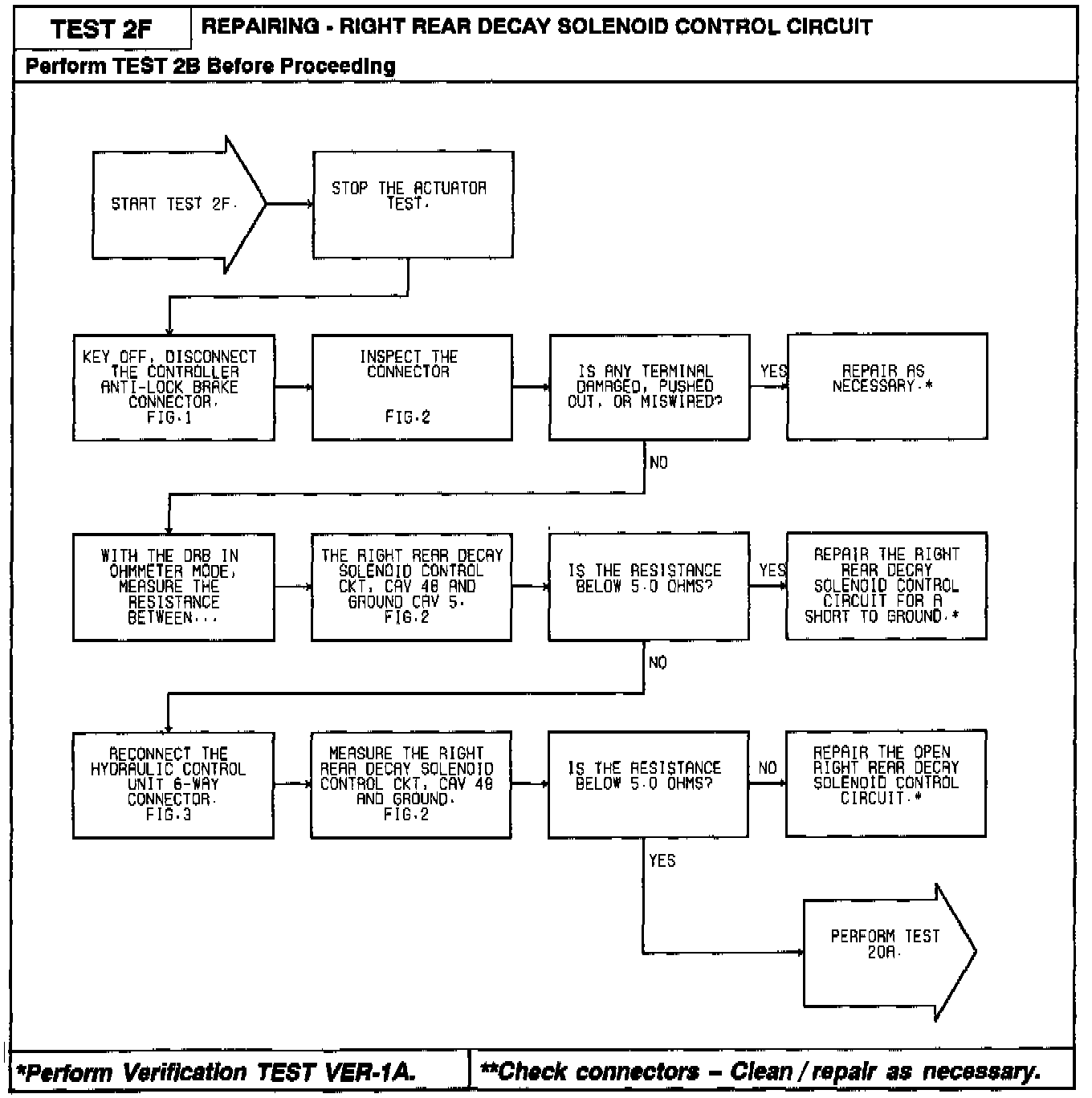

Diagnostic Chart:
