Sebring Convertible L4-2.4L DOHC
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Antilock Brakes / Traction Control Systems
>>
Test 2D - R/F Decay Solenoid Control Circuit
Test 2D - R/F Decay Solenoid Control Circuit
Related Images:

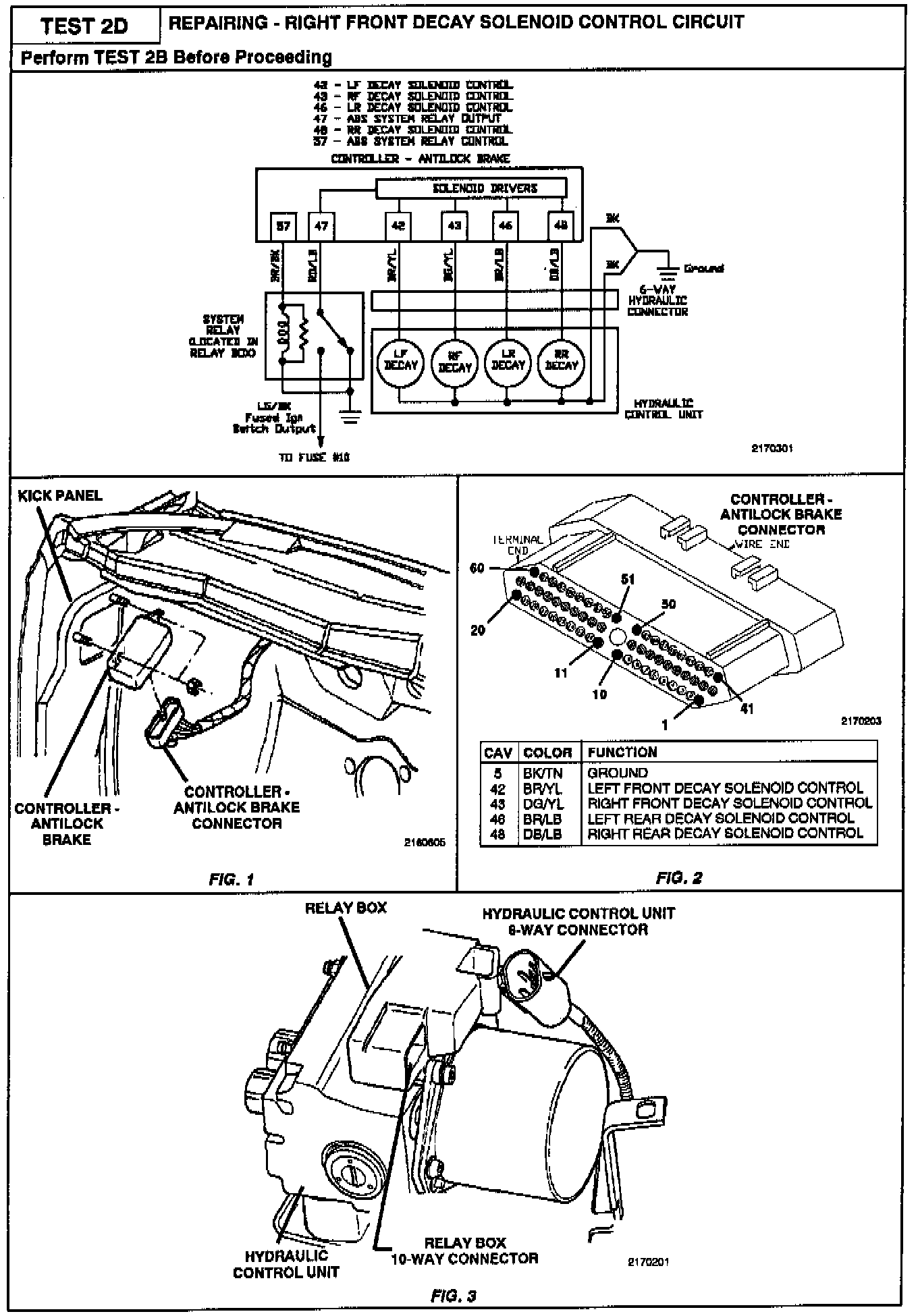

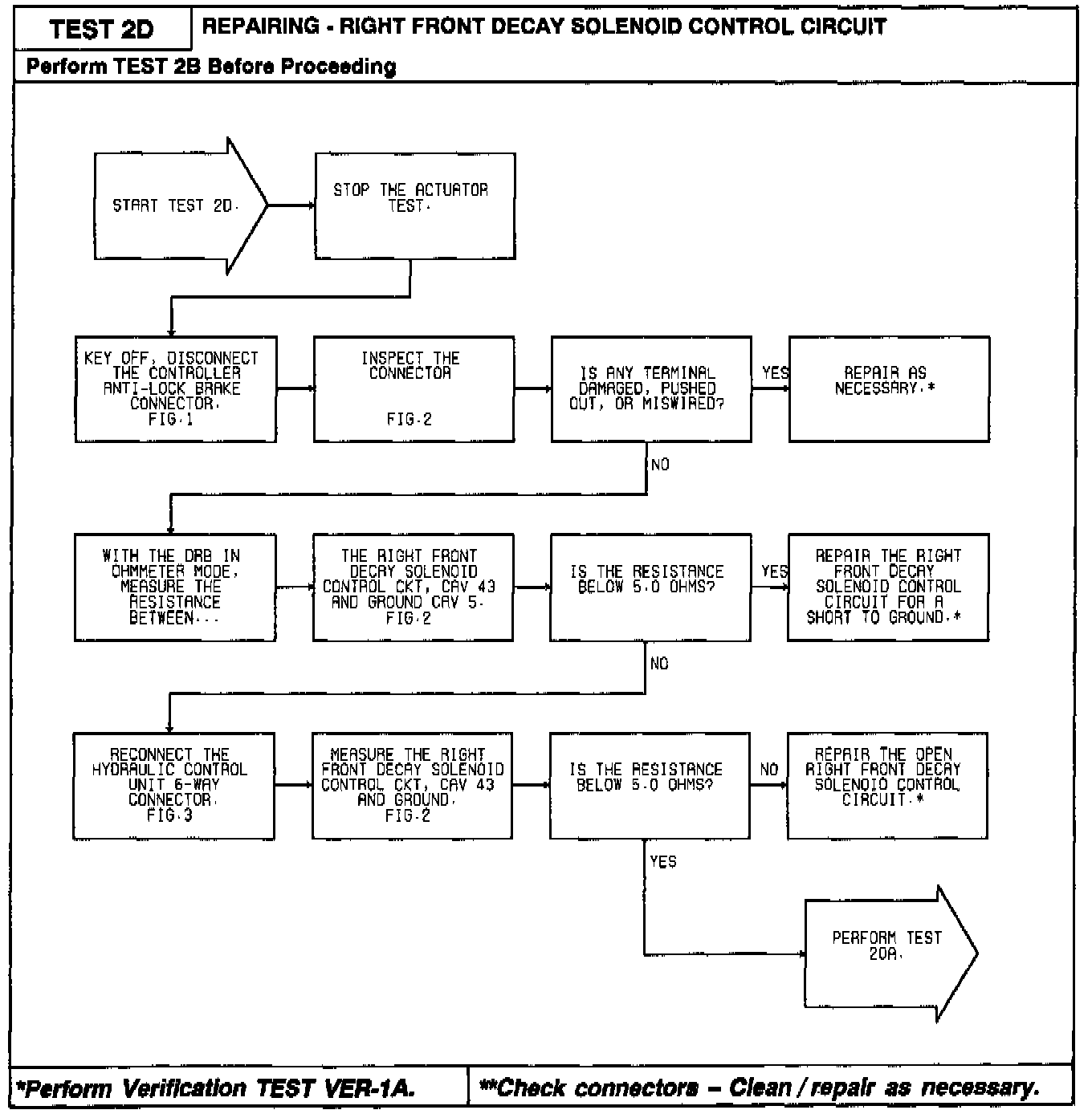

Diagnostic Chart:
