Home >> Chrysler >> 1996 >> Sebring Convertible L4-2.4L DOHC >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Antilock Brakes / Traction Control Systems >> Test 2B - Modulator Circuits

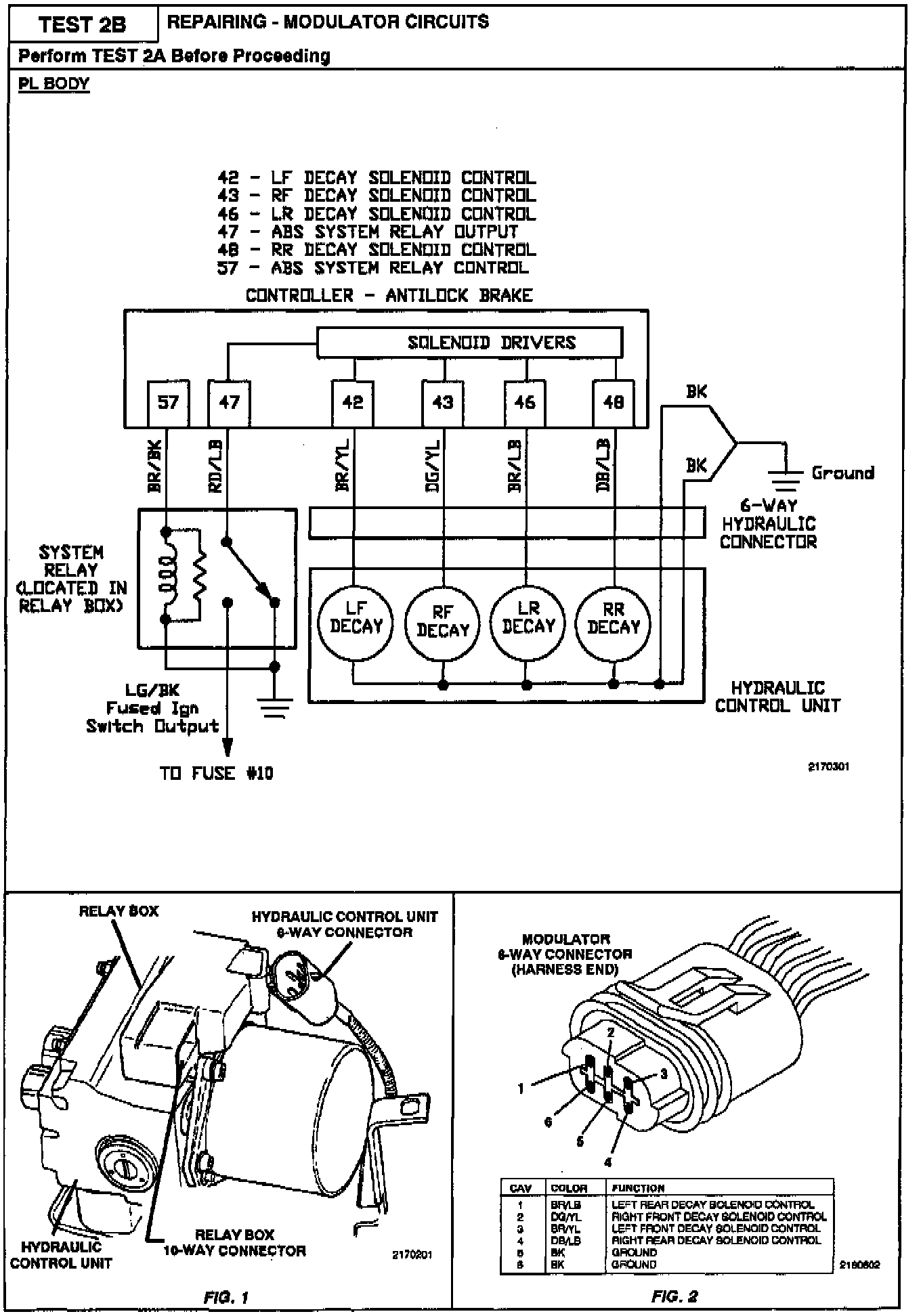

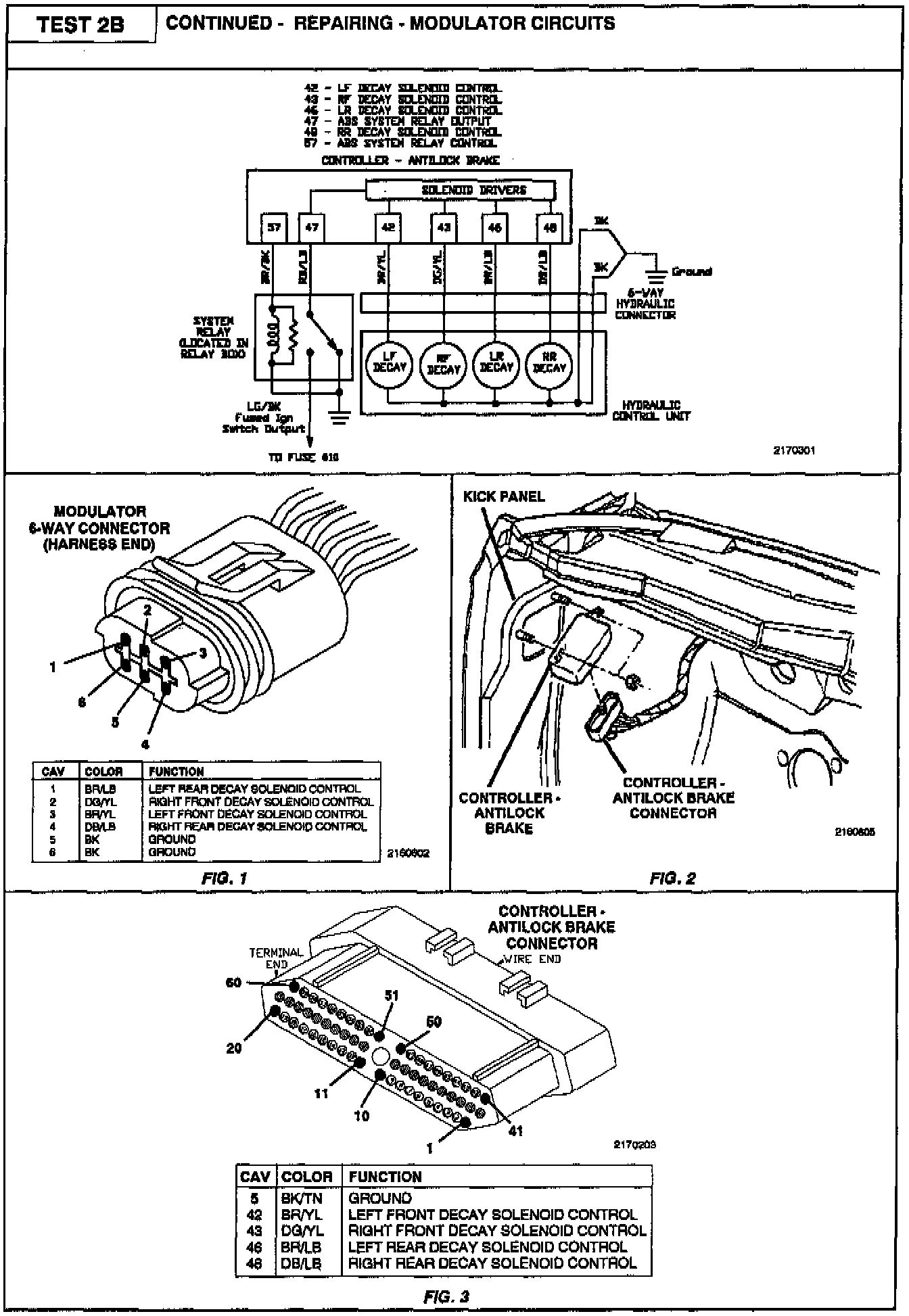

Test 2B - Modulator Circuits

Related Images:



Diagnostic Charts:



Related Images:

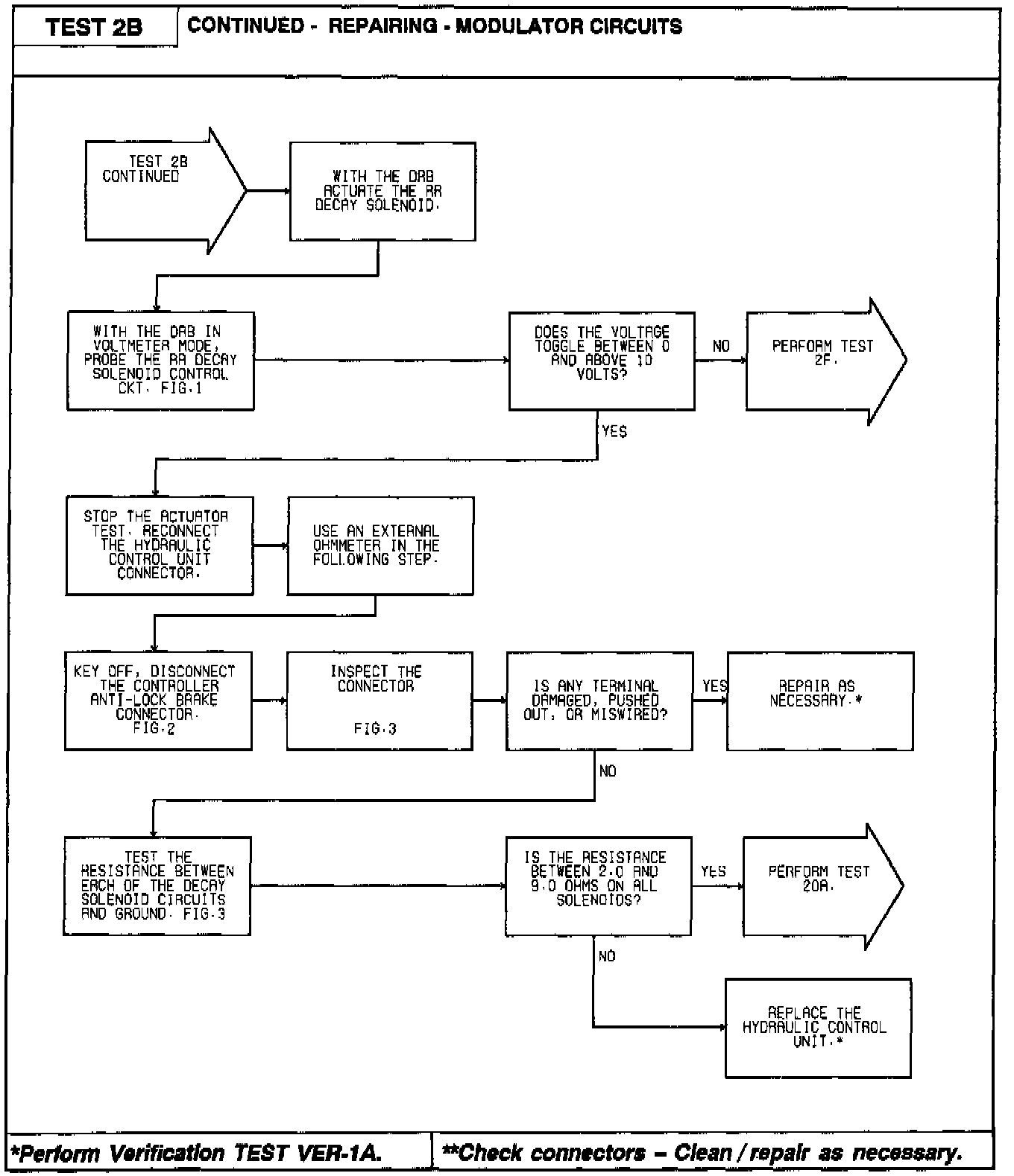

Diagnostic Chart:
