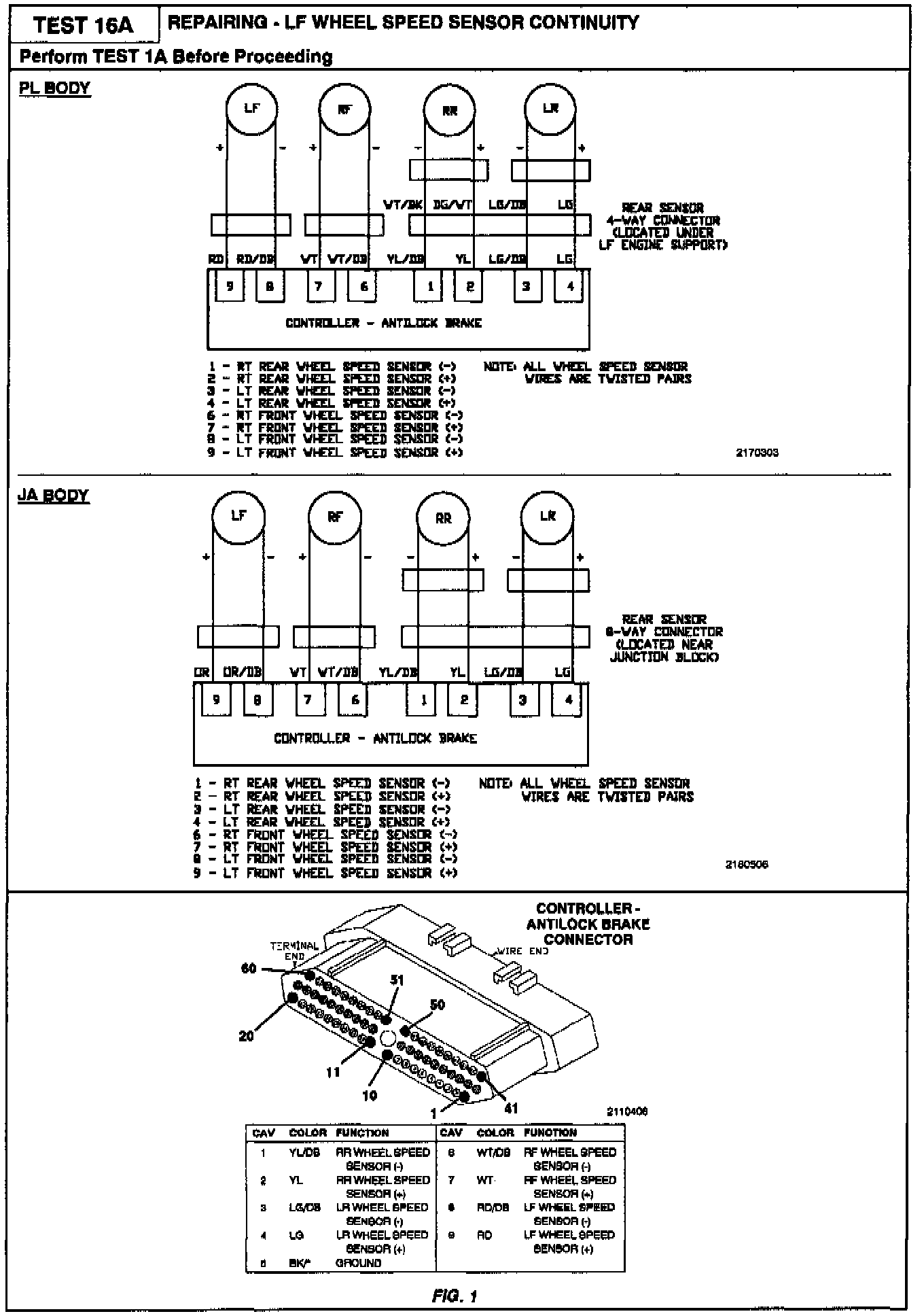

Test 16A - Left Front Wheel Speed Sensor Continuity Fault
Test 16A - Left Front Wheel Speed Sensor Continuity Fault
Related Images:

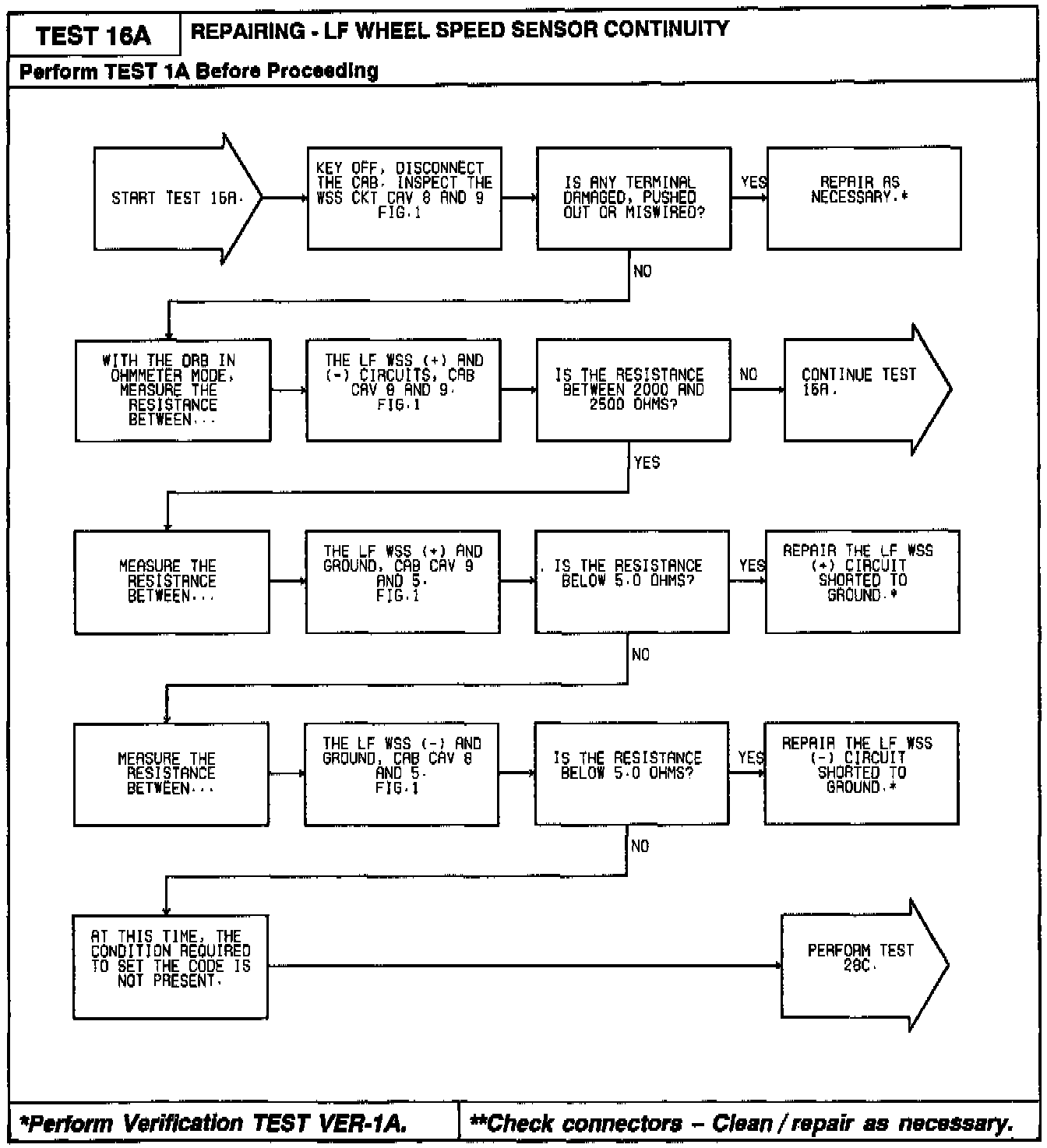

Diagnostic Chart:
Related Images:

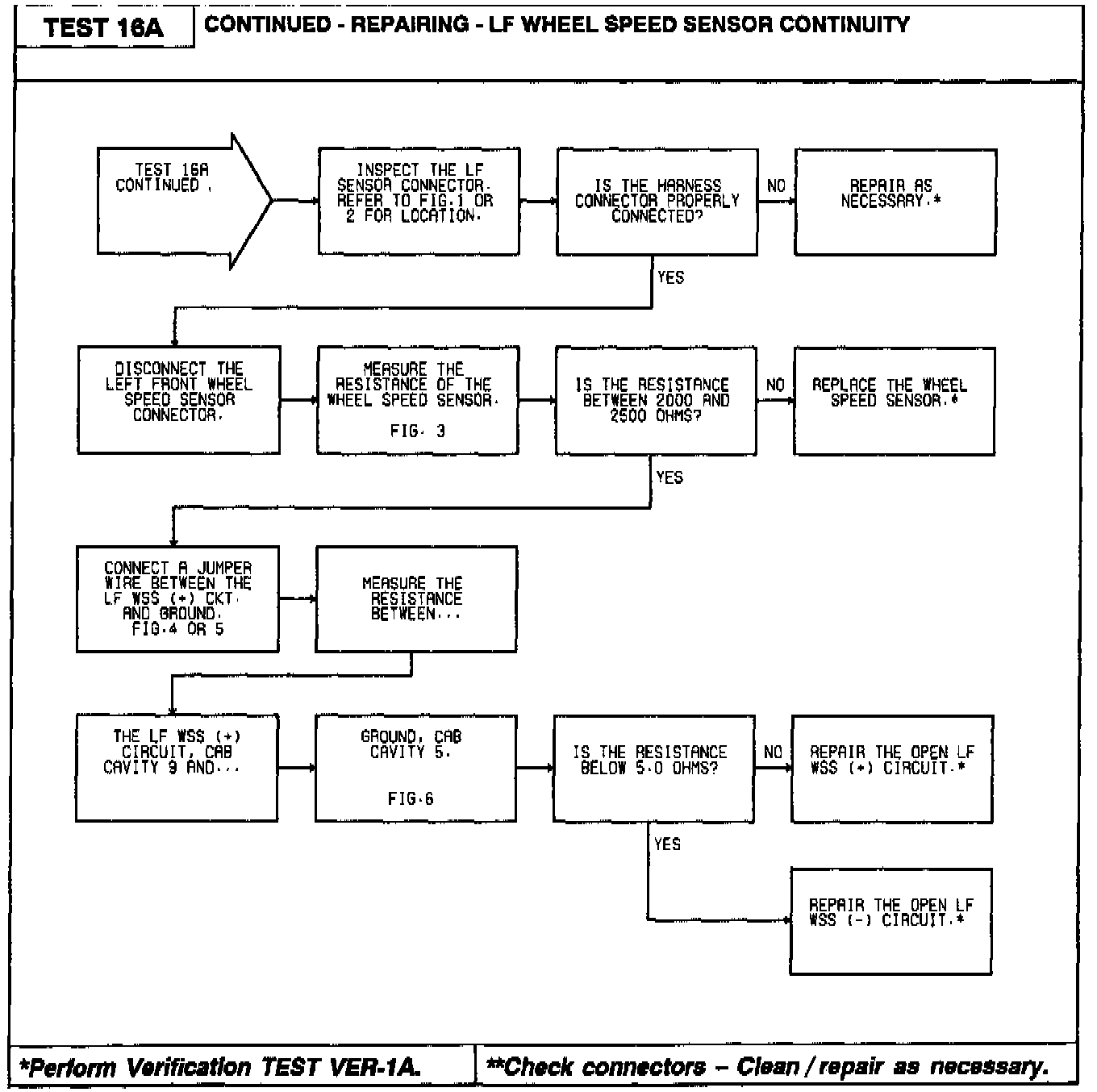

Diagnostic Chart:
