Hex Codes

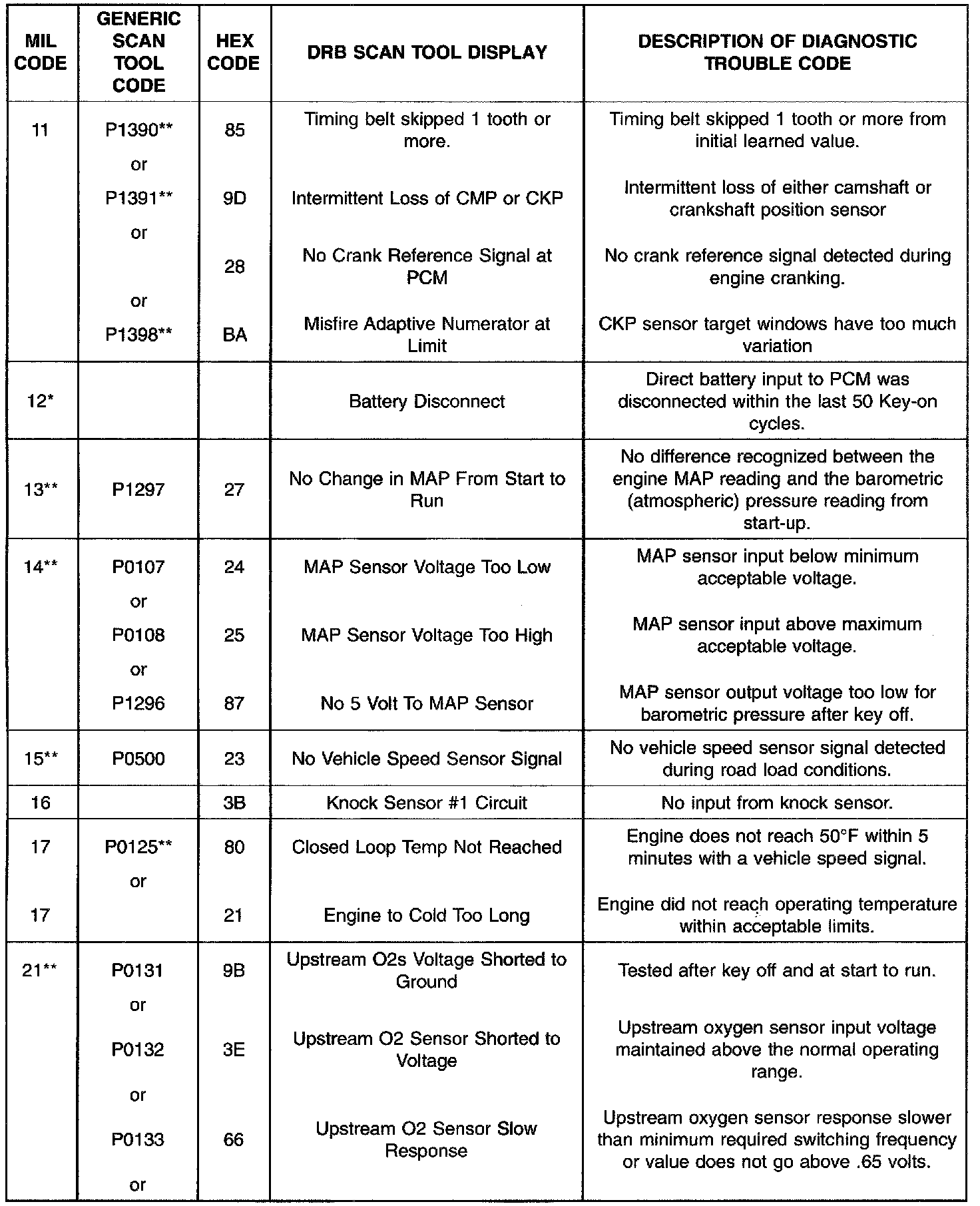

Part 1 - Codes 11 To 21:

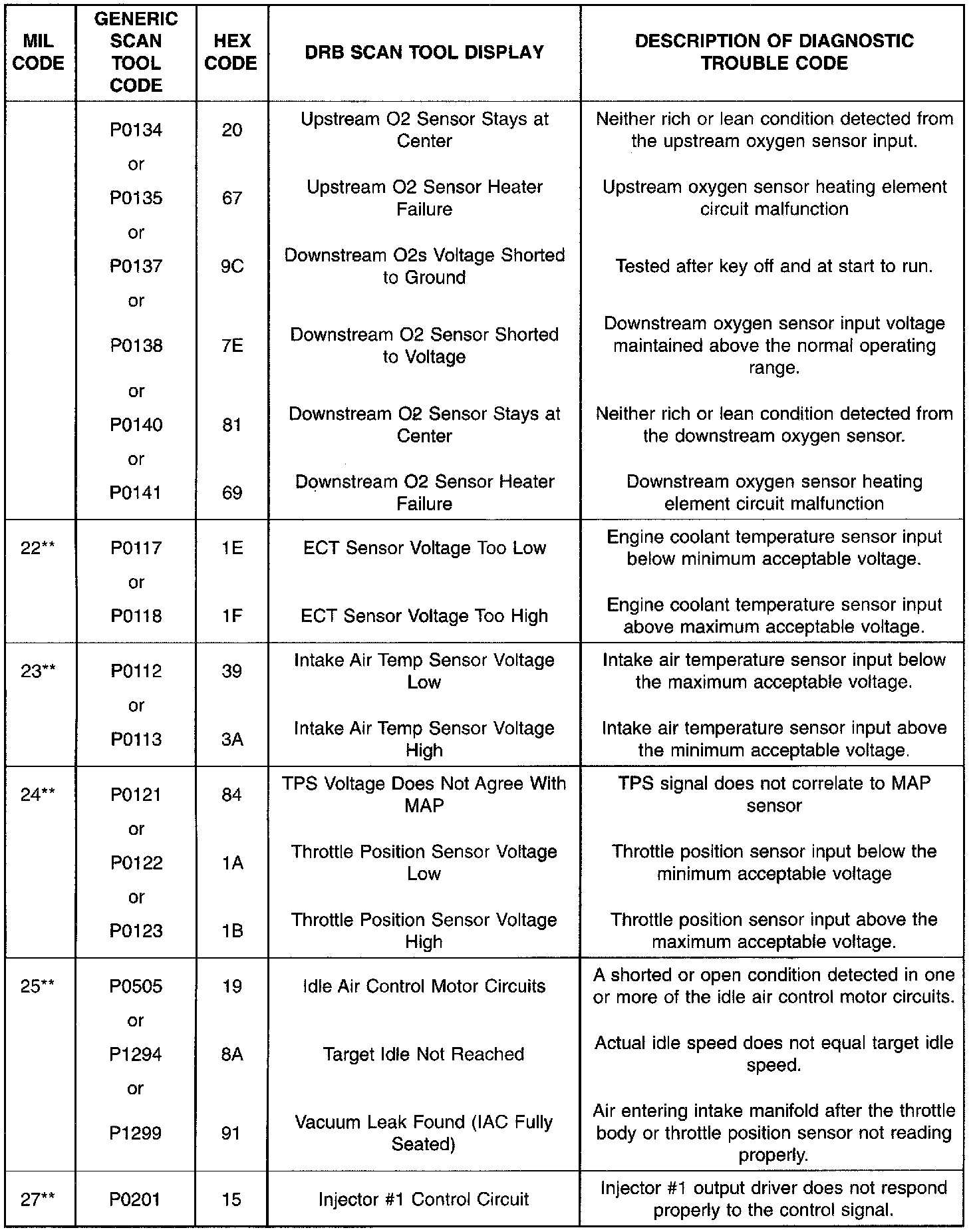

Part 2 - Codes 21 To 27:

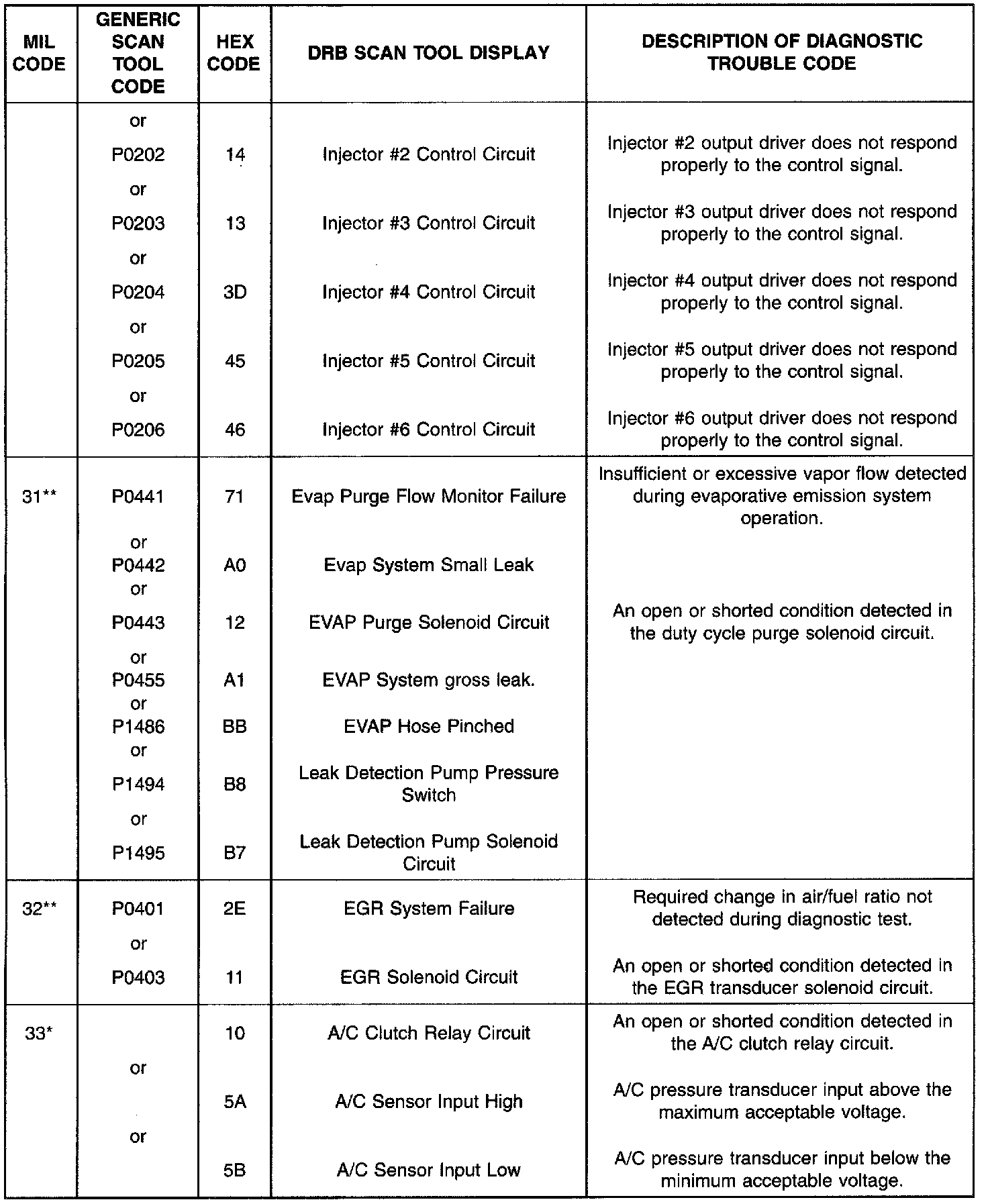

Part 3 - Codes 27 To 33:

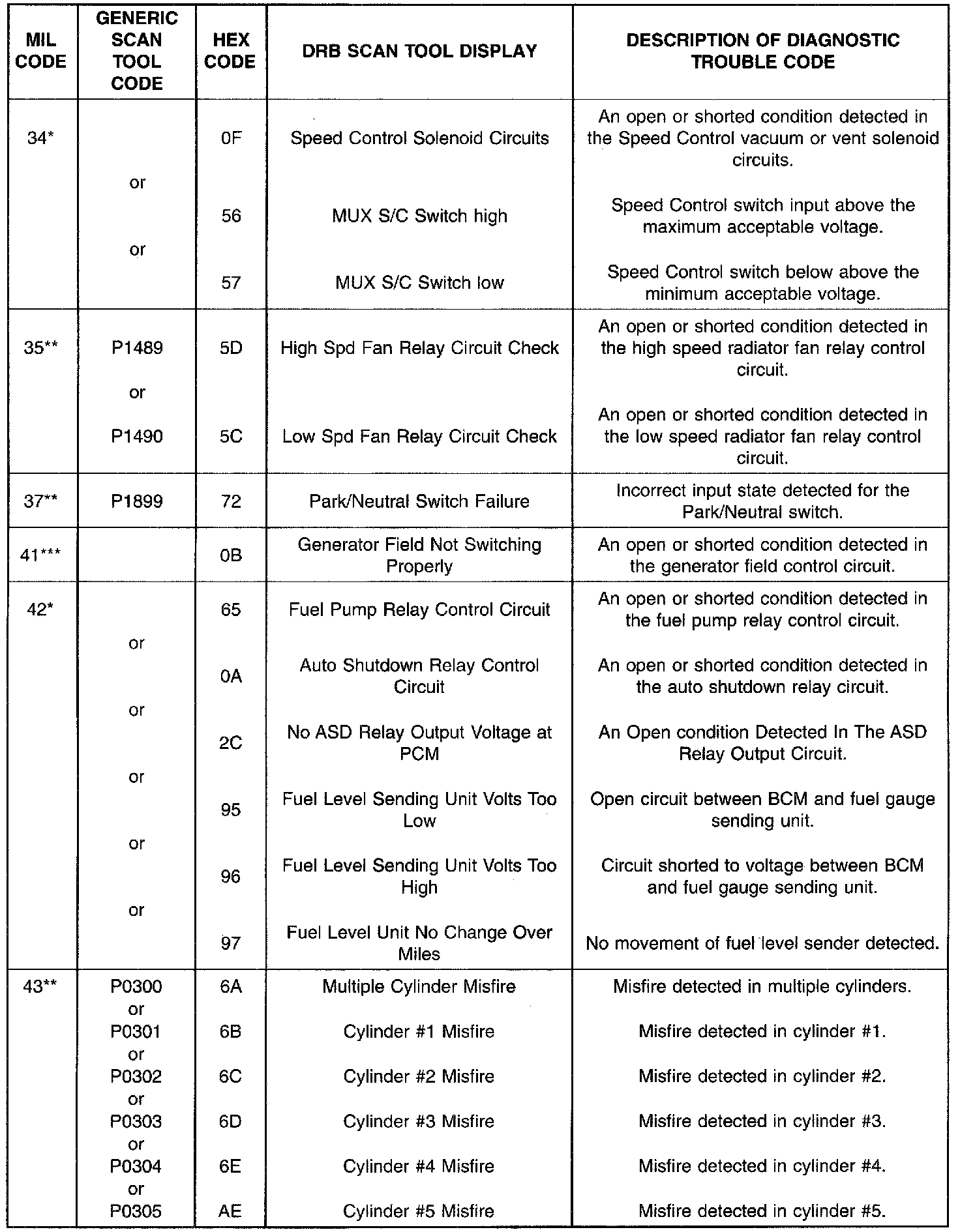

Part 4 - Codes 34 To 43:

Part 5 - Codes 43 To 66:

Part 6 - Codes 71 To 77:

* Check Engine Lamp (MIL) will not illuminate if this Diagnostic Trouble Code was recorded. Cycle Ignition key as described to read trouble codes and observe code flashed by Check Engine lamp.

** Check Engine Lamp (MIL) will illuminate during engine operation if this Diagnostic Trouble Code was recorded.

*** Generator Lamp illuminated
