Shift Solenoid: Service and Repair

REMOVAL
1. Raise vehicle on hoist.
2. Remove valve body assembly from transaxle.

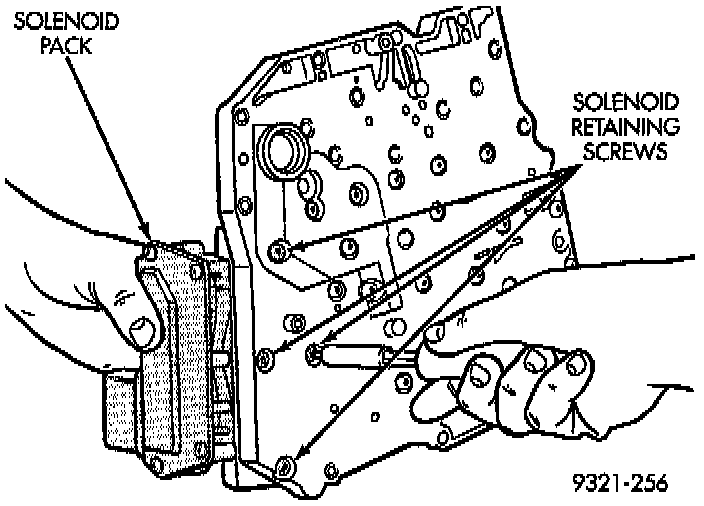

3. Remove solenoid retaining screws from solenoid.

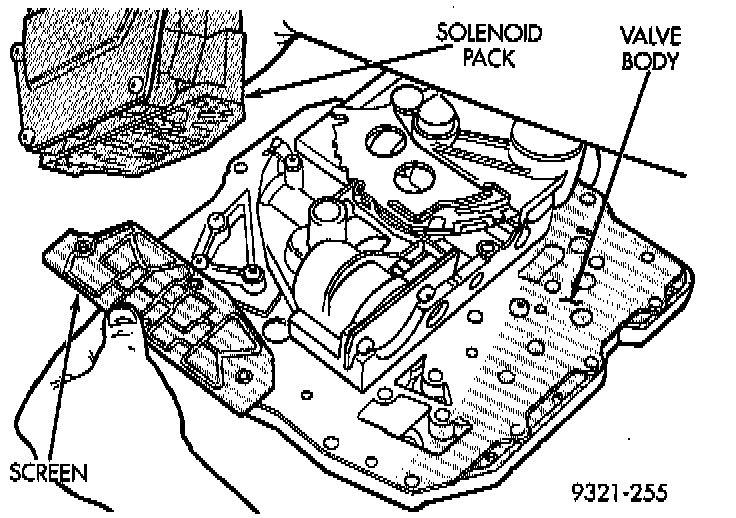

4. Remove solenoid and screen from valve

INSTALLATION
To install, reverse removal procedure.
