Engine Support Procedure

Engine Support Fixture Installation:

To allow removal of cradle module assembly from the vehicle, it will be necessary to support the engine and transaxle assembly using engine support fixture tool No. 7137, or equivalent.

Webbing Material Installation:

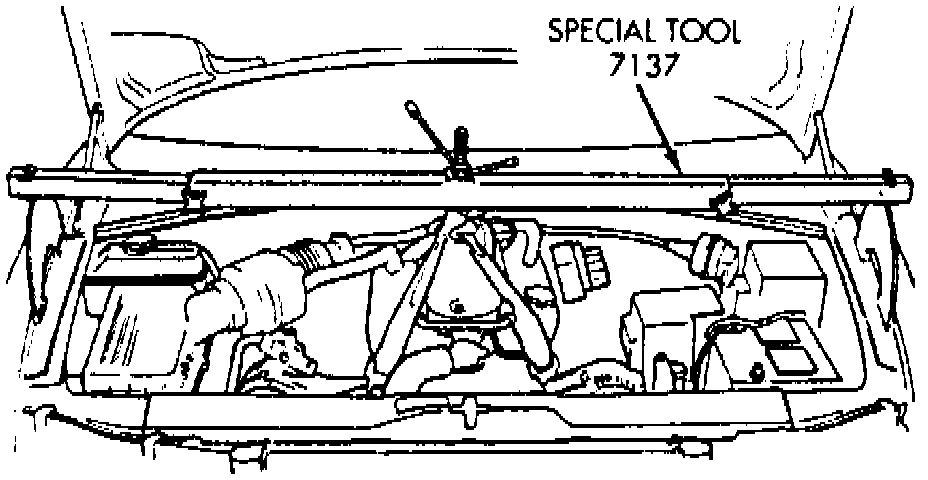

Engine Support Fixture Installation:

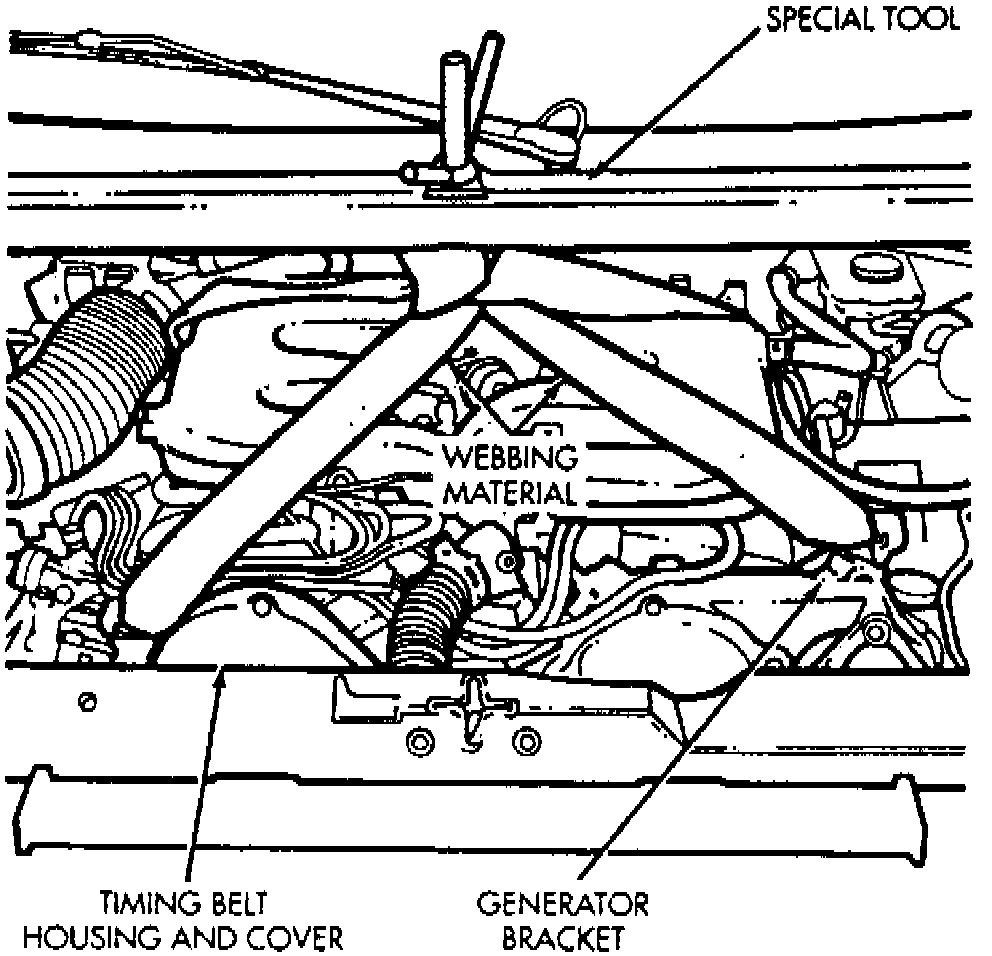

Webbing Material To Timing Belt Cover Installation:

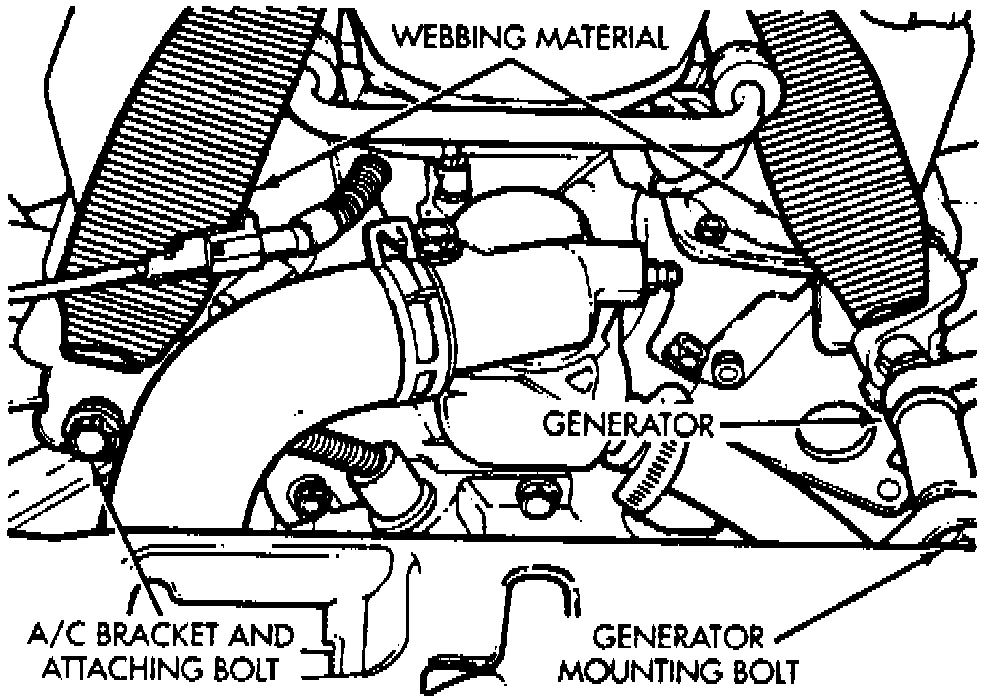

Webbing Material To Generator Bracket Installation:

1. Mount fixture across engine compartment.
2. Mount nylon webbing material as follows:
a. Remove bolt attaching A/C compressor bracket to front of engine. Install webbing material hook on A/C compressor bolt then install bolt and tighten.
b. Loosen, but do not remove, generator to engine bolt. Remove spacer between generator and engine. Install webbing material hook between generator and engine, then install and tighten bolt.
c. Remove electronic ignition coil and mounting bracket bolt from rear of engine. Install webbing material hook on bracket bolt and reinstall and tighten bolt. Route webbing material between fuel injector rail and valve cover.
d. Mount remaining piece of webbing material to threaded hole on back of left cylinder head using a suitable bolt.
3. Securely attach pieces of webbing material to hook on engine holding fixture. Tighten hook on fixture until all slack is removed from all webbing material.
