Models Without Speed Proportional Steering

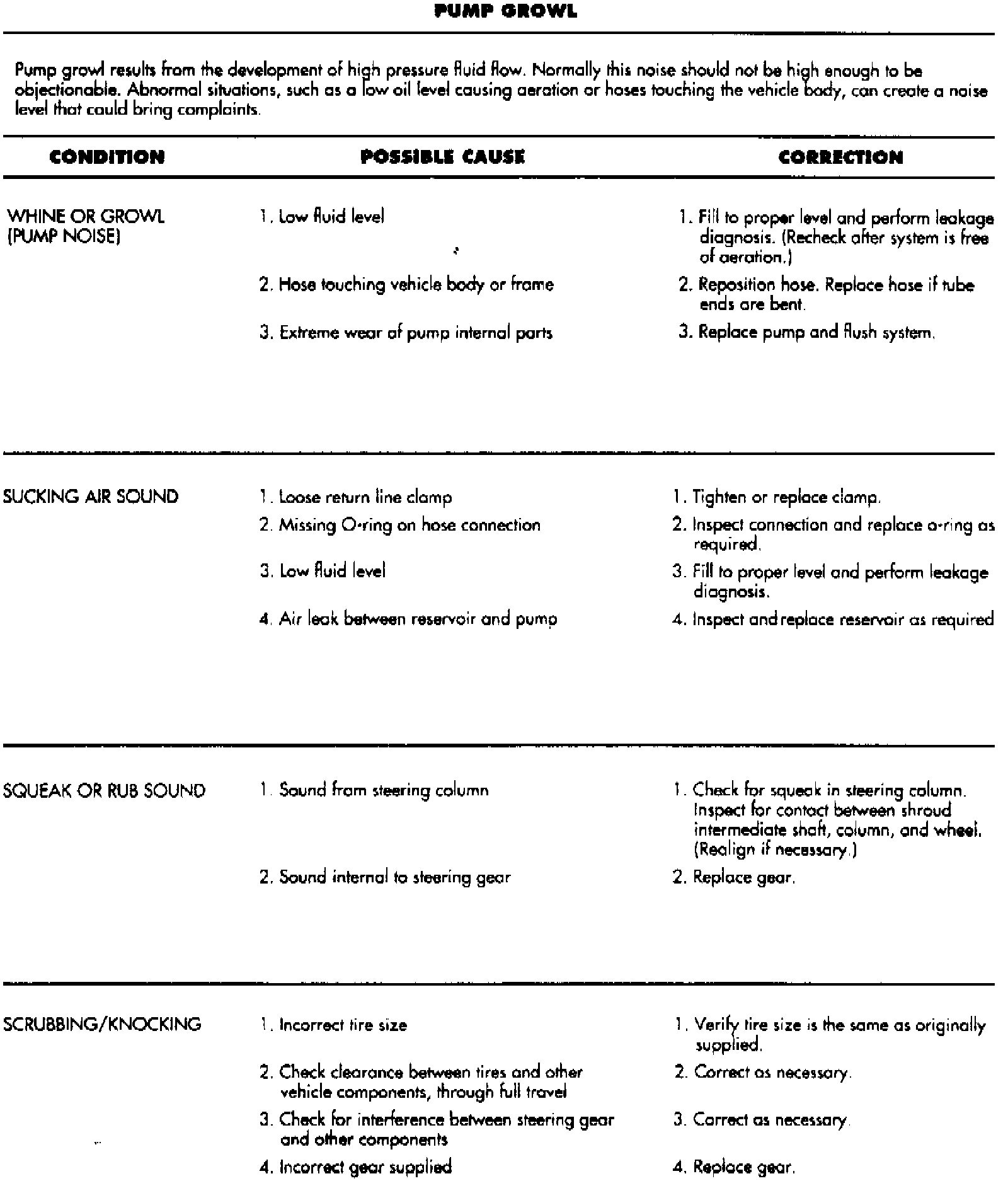

Fig.3 Power Steering System Troubleshooting Guide 1/6:

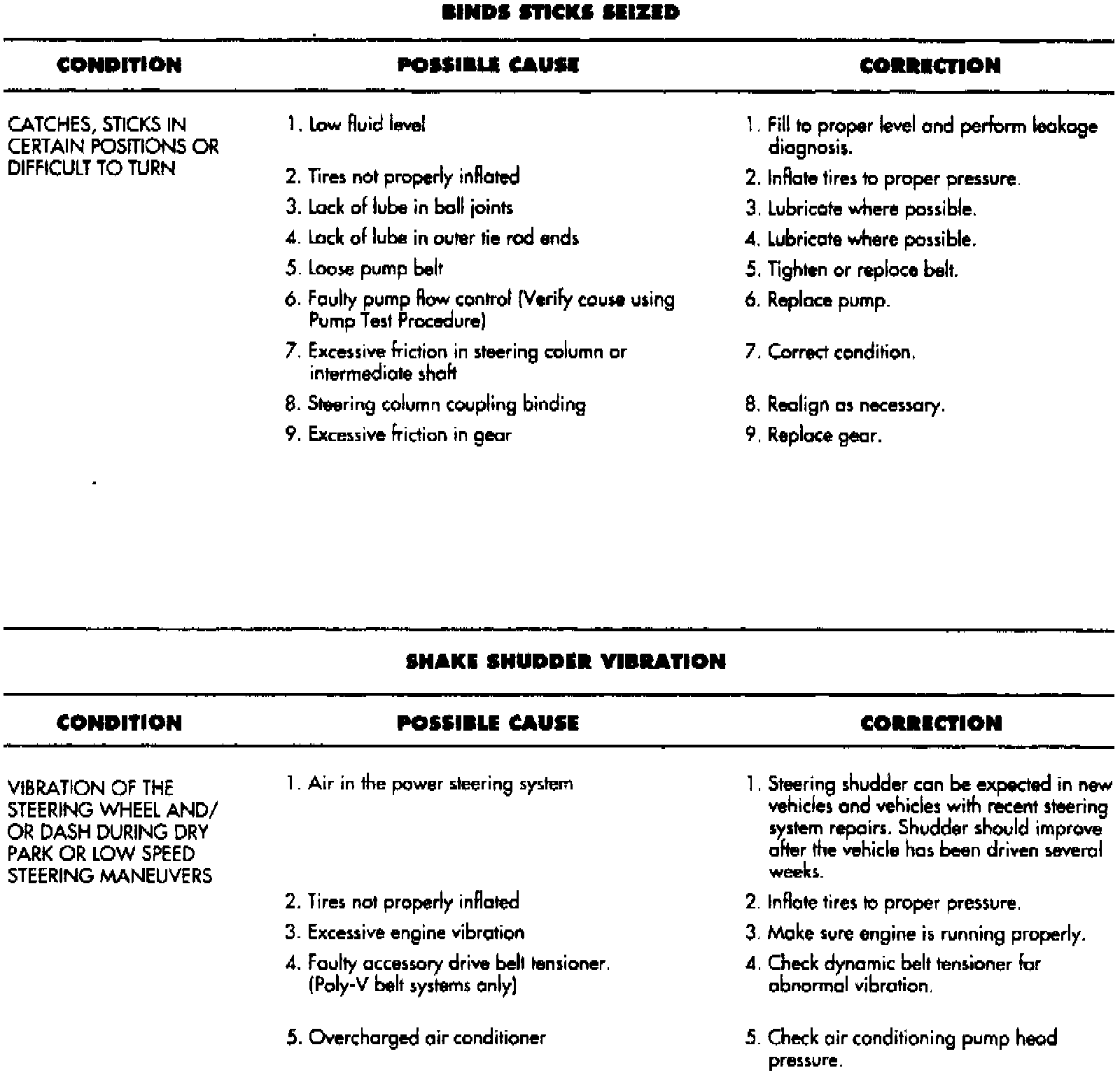

Fig.3 Power Steering System Troubleshooting Guide 2/6:

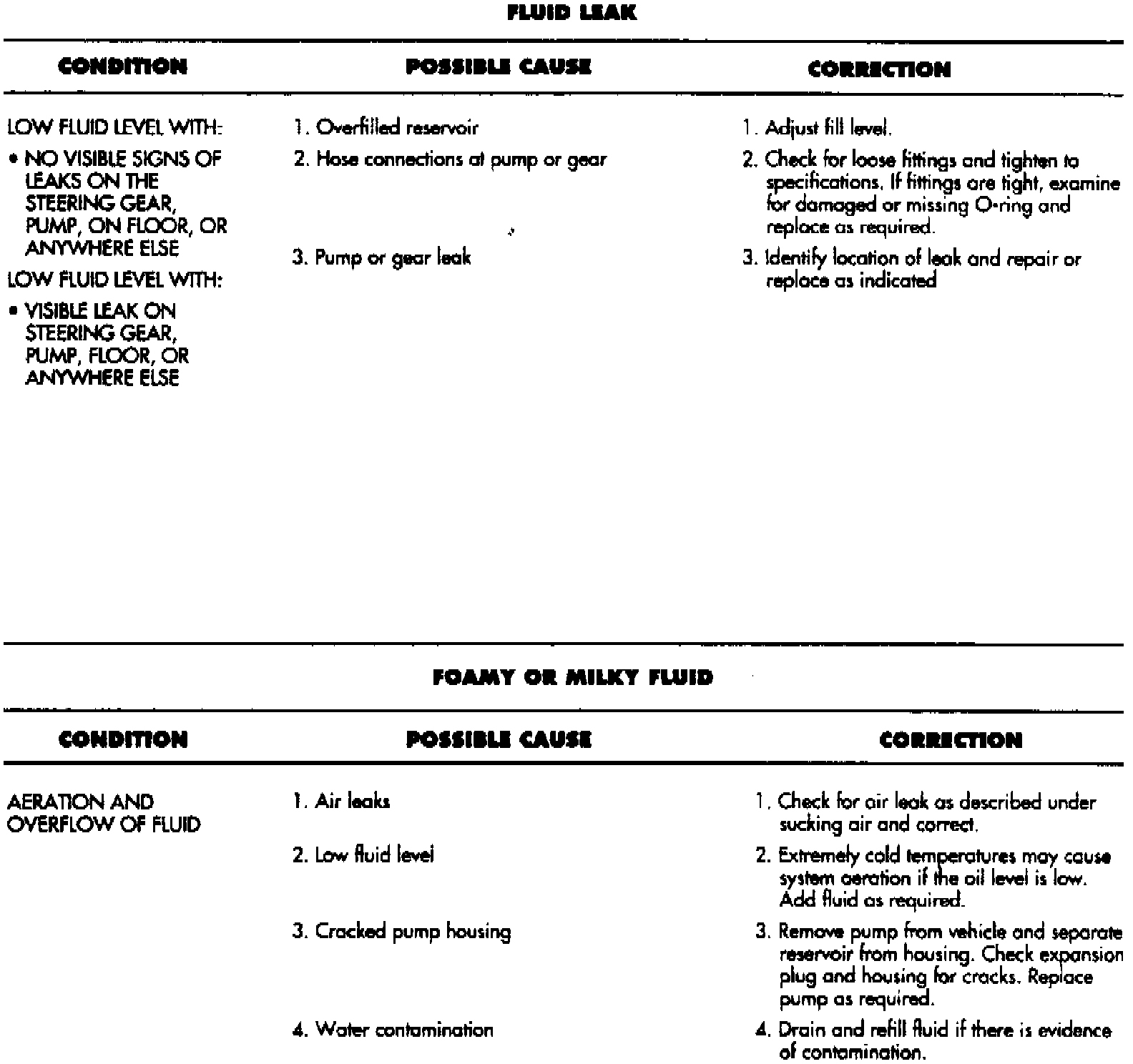

Fig.3 Power Steering System Troubleshooting Guide 3/6:

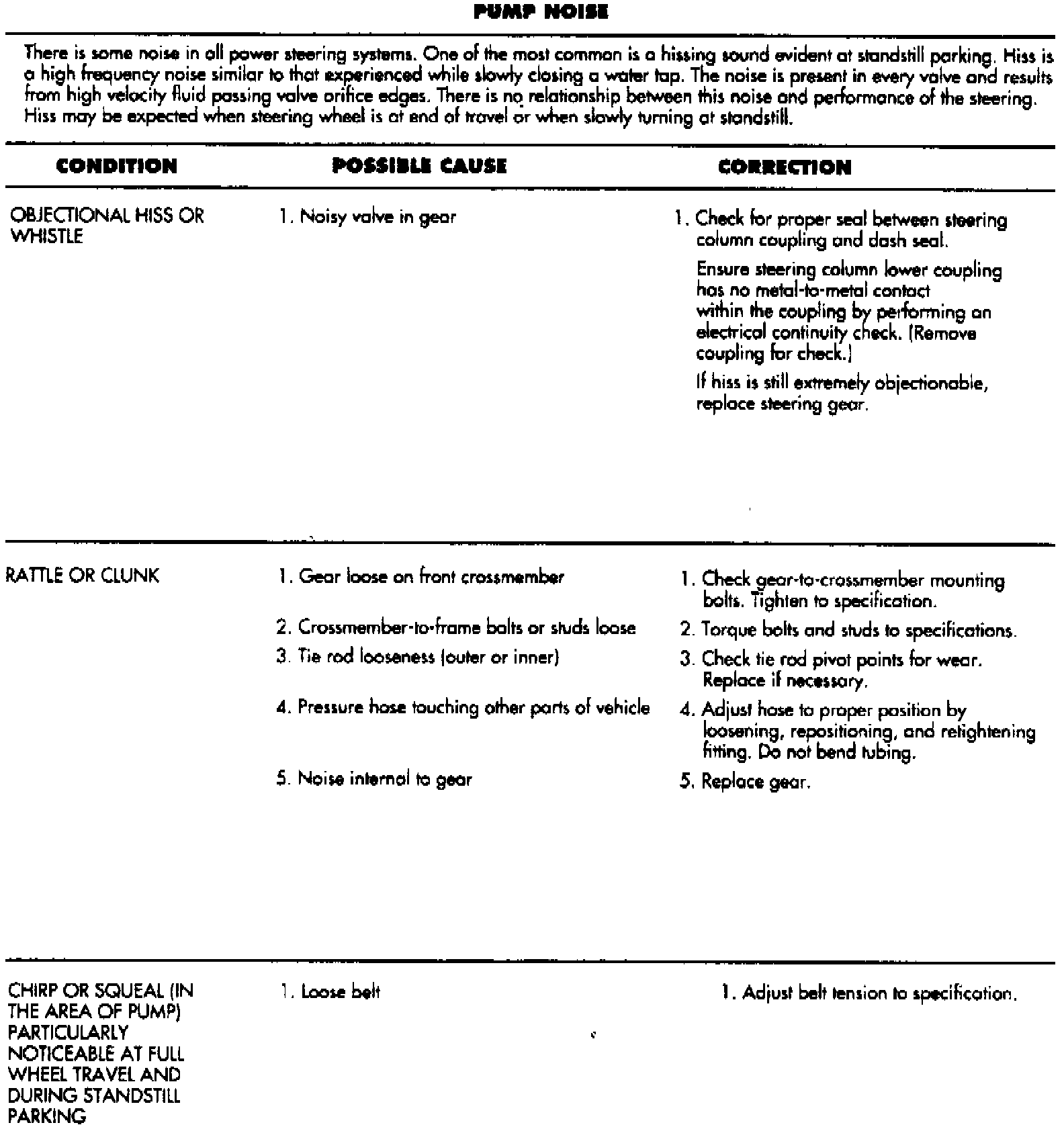

Fig.3 Power Steering System Troubleshooting Guide 4/6:

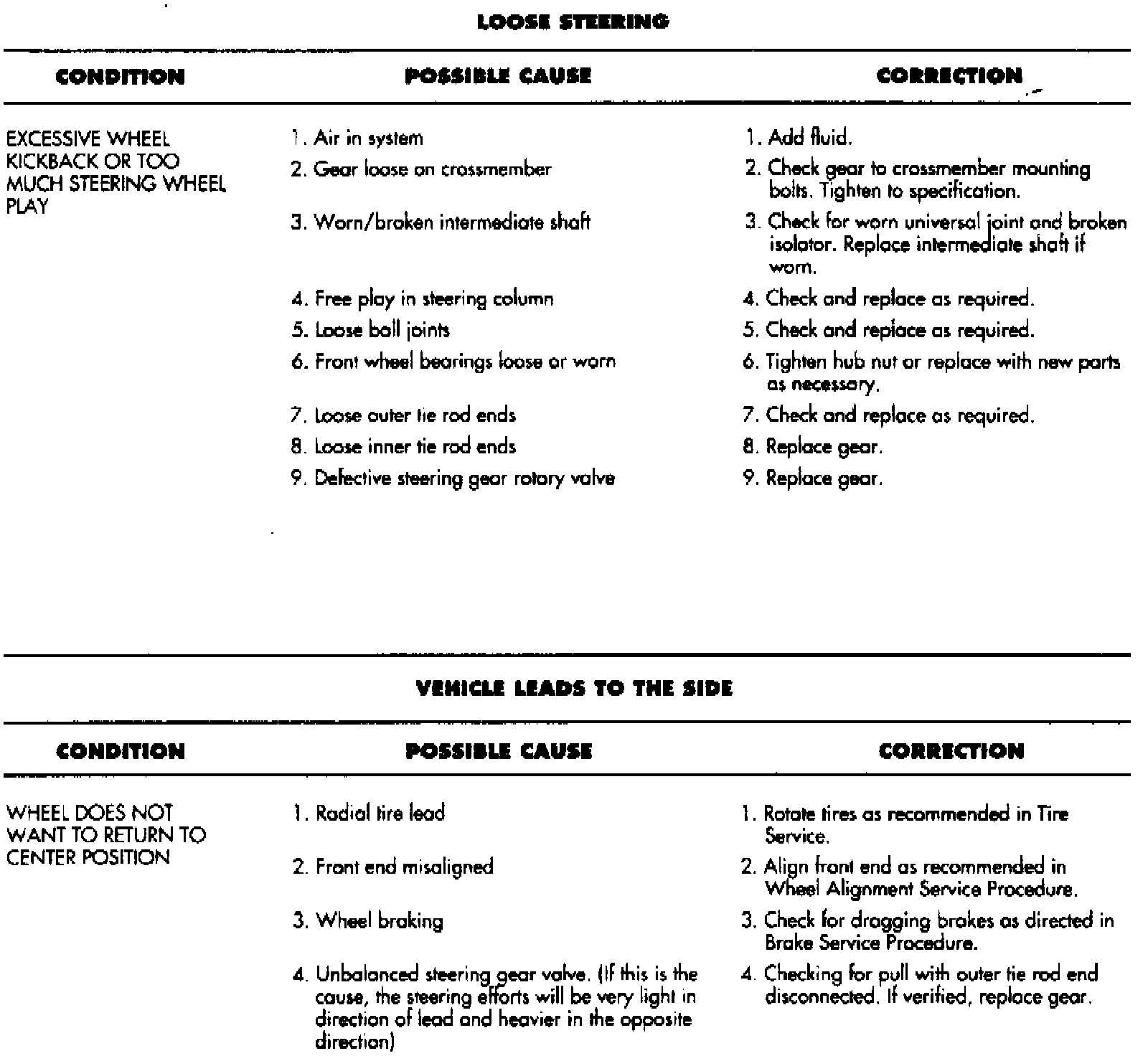

Fig.3 Power Steering System Troubleshooting Guide 5/6:

Fig.3 Power Steering System Troubleshooting Guide 6/6:
