Diagnostic Connector: Locations

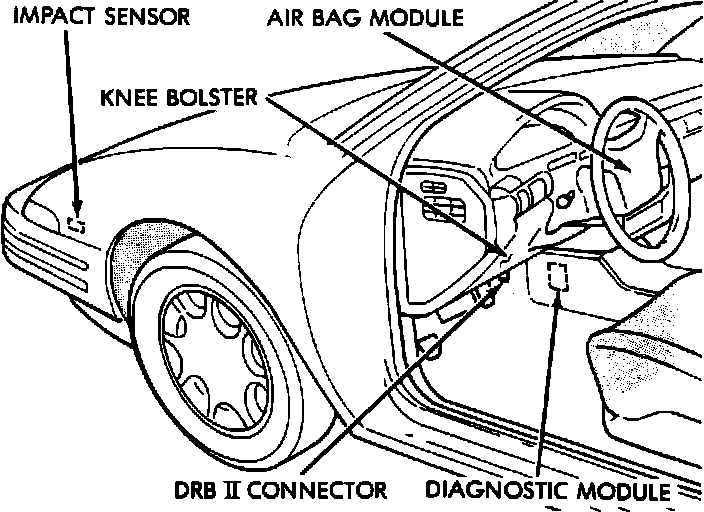

Fig. 15 Supplemental Restraint System Component Locations (TYPICAL View):
