PCM - OBDII Readiness Code Retention
NUMBER: 18-005-01GROUP: Vehicle Performance
DATE: Feb. 16, 2001
THIS BULLETIN SUPERSEDES TECHNICAL SERVICE BULLETIN 18-18-97,
DATED MAY 9, 1997, WHICH SHOULD BE REMOVED FROM YOUR
FILES. THIS IS A COMPLETE REVISION AND NO ASTERISKS HAVE
BEEN USED TO HIGHLIGHT REVISIONS.
SUBJECT:
OBDII Readiness Code Retention
OVERVIEW:
This bulletin involves reprogramming the Powertrain Control Module.
MODELS:
1995-1996 (JA) Cirrus/Stratus/Breeze
1996 (JX) Sebring Convertible
1996 (LH) Intrepid/Vision/Concorde/LHS
1996 (PL) Neon
NOTE:
THIS INFORMATION APPLIES TO FEDERAL EMISSION (SALES CODE NAA) AND CALIFORNIA EMISSION (SALES CODE NAE) MODELS BUILT PRIOR TO NOV. 21, 1995 (MDH1121XX) AND ALL 1995 JA MODELS EQUIPPED WITH A 2.0L ENGINE AND MANUAL TRANSAXLE. THE CALIFORNIA EMISSION MODELS ADDRESSED IN THIS BULLETIN WERE SOLD IN THE NORTHEAST STATES. CALIFORNIA MODELS SOLD IN CALIFORNIA WERE ADDRESSED WITH RECALL 678 DATED SEPT. 1996.
DISCUSSION:
The On Board Diagnostic (OBDII) system includes a monitor called readiness codes. The readiness codes indicate that all OBDII diagnostic tests have been performed and that diagnostic trouble codes (DTC's) can be read. It has been determined that the readiness codes may be cleared upon ignition key "OFF" cycles. Absence of readiness codes may cause owners to fail their emission inspection. To correct this condition, the Powertrain Control Module (PCM) must be reprogrammed.

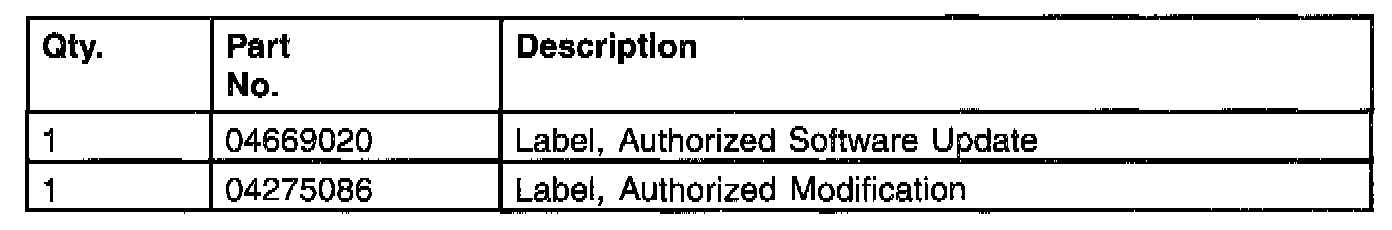

PARTS REQUIRED:

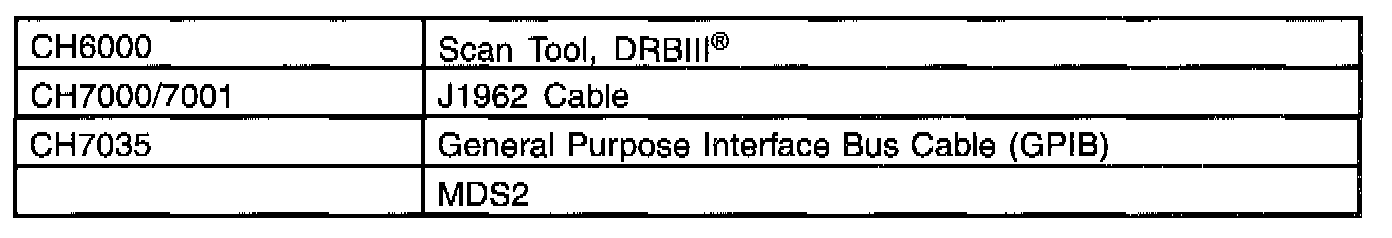

EQUIPMENT REQUIRED:
NOTE:
THE MDS2 MUST BE OPERATING WITH CIS CD2075 OR HIGHER
1. Flash the PCM using the MDS2 (Mopar Diagnostic System) and DRBIII(R) (Scan Tool).
NOTE:
THE FOLLOWING STEPS ARE REQUIRED BY LAW.

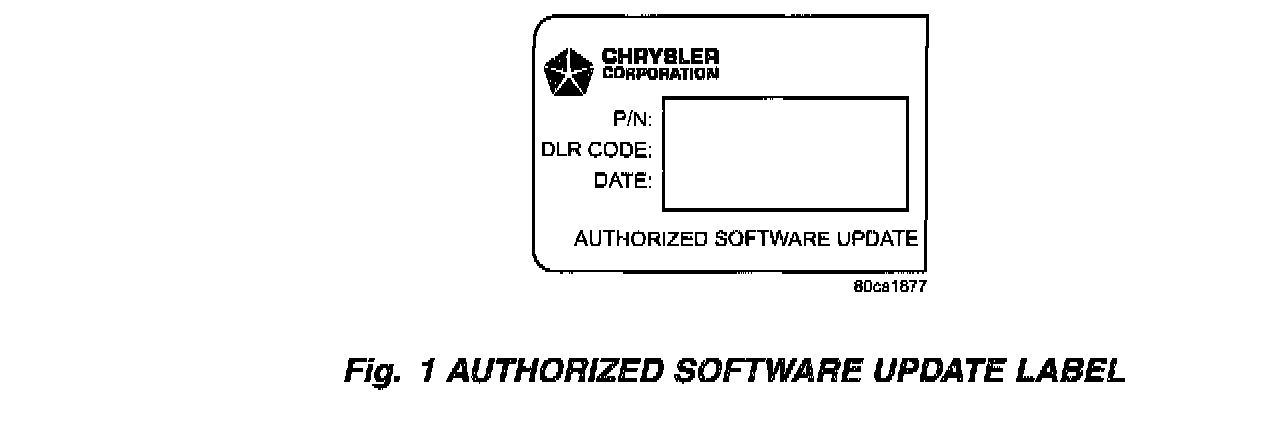

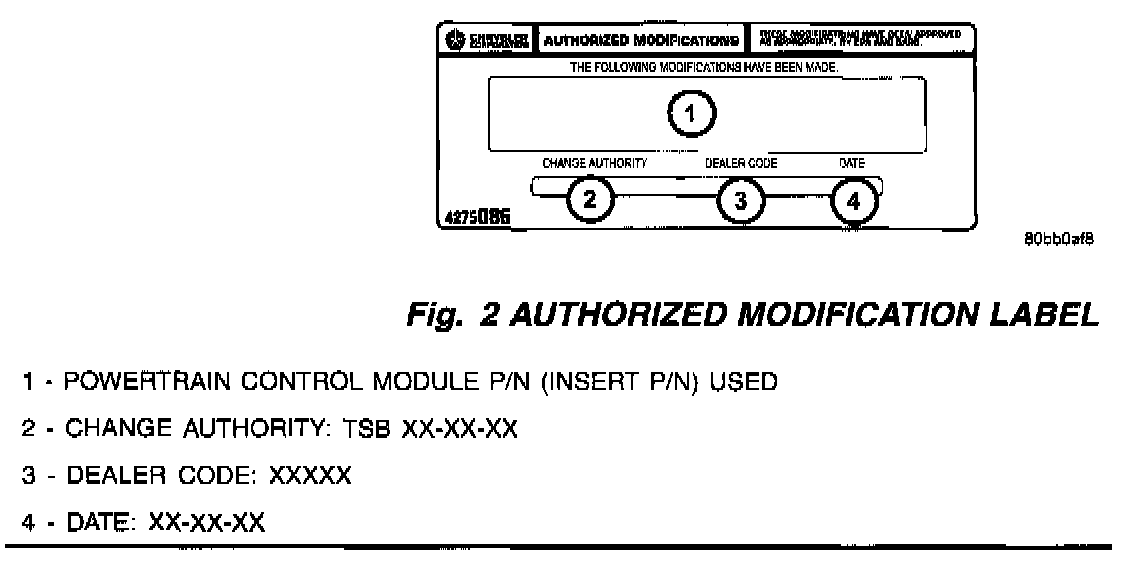

2. Type the necessary information on the Authorized Software Update Label p/n 04669020 (Fig. 1). Attach the label to the PCM and cover it with the clear plastic overlay. Type the necessary information on the Authorized Modification Label p/n 04275086 (Fig. 2) and attach the label near the VECI label.
POLICY:
Reimbursable within the provisions of the warranty.
TIME ALLOWANCE:
FAILURE CODE:
