Keyless Entry Module: Diagrams

Remote Keyless Entry (RKE) Module Black Connector:

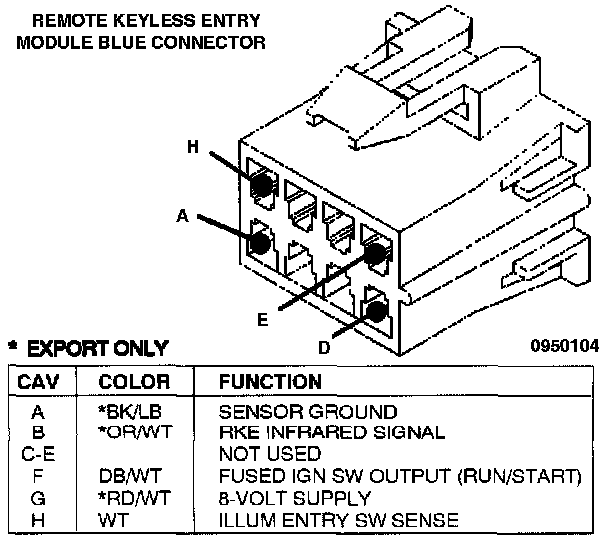

Remote Keyless Entry (RKE) Module Blue Connector:
