No Start (NS) Tests
>>
NS-5A Checking the Fuel Pump
NS-5A Checking the Fuel Pump

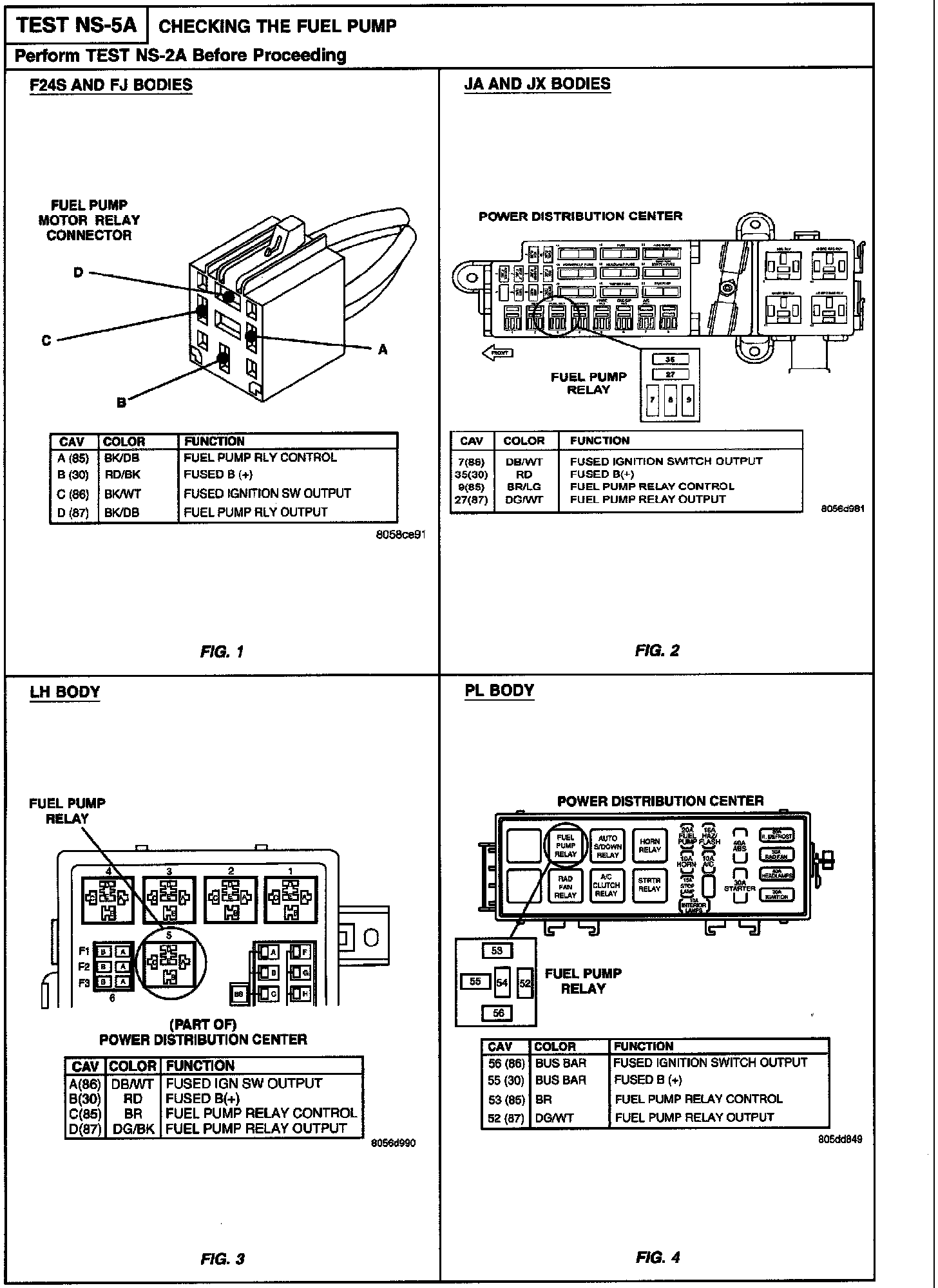

Related Images:

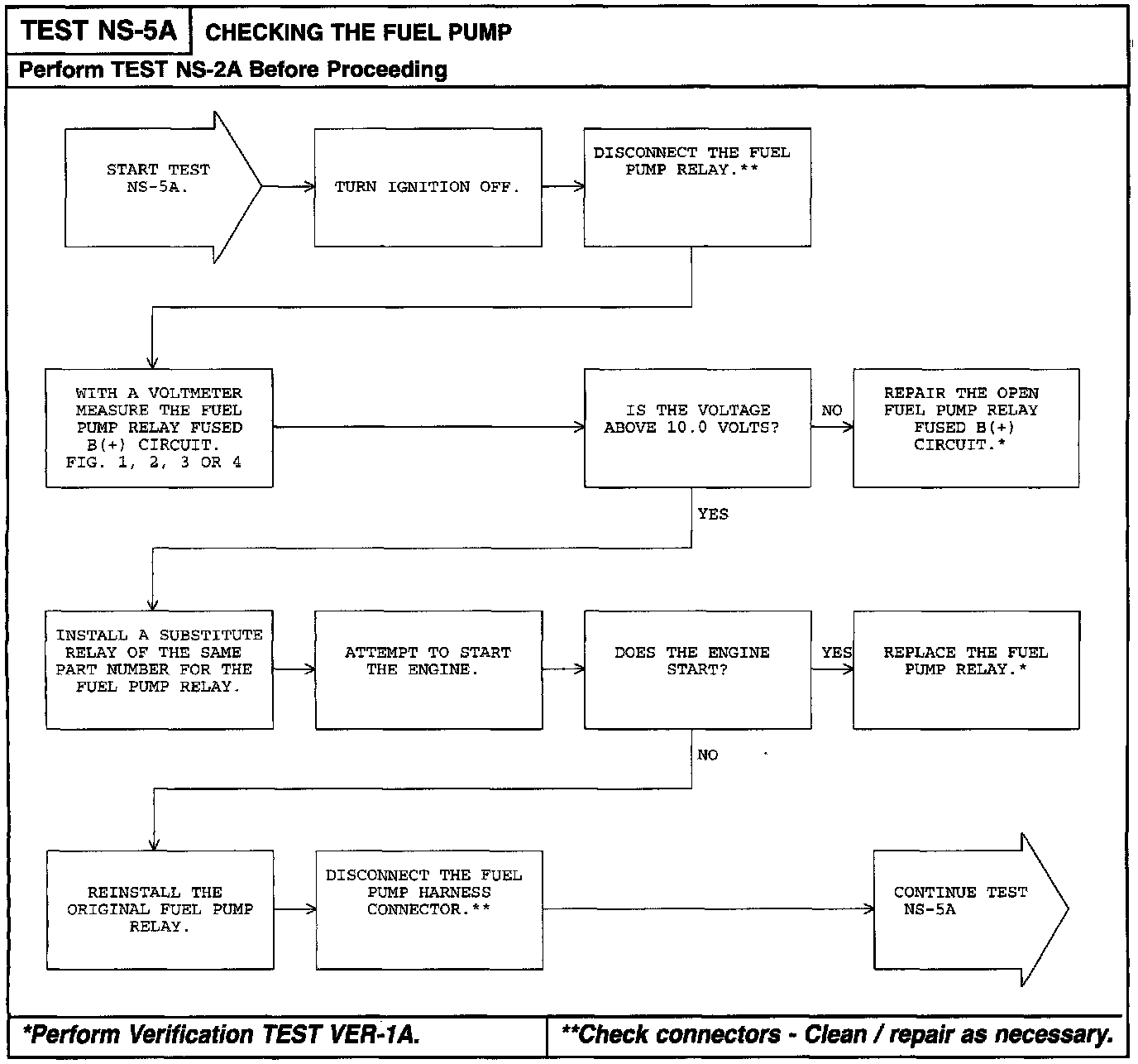

Flow Chart:

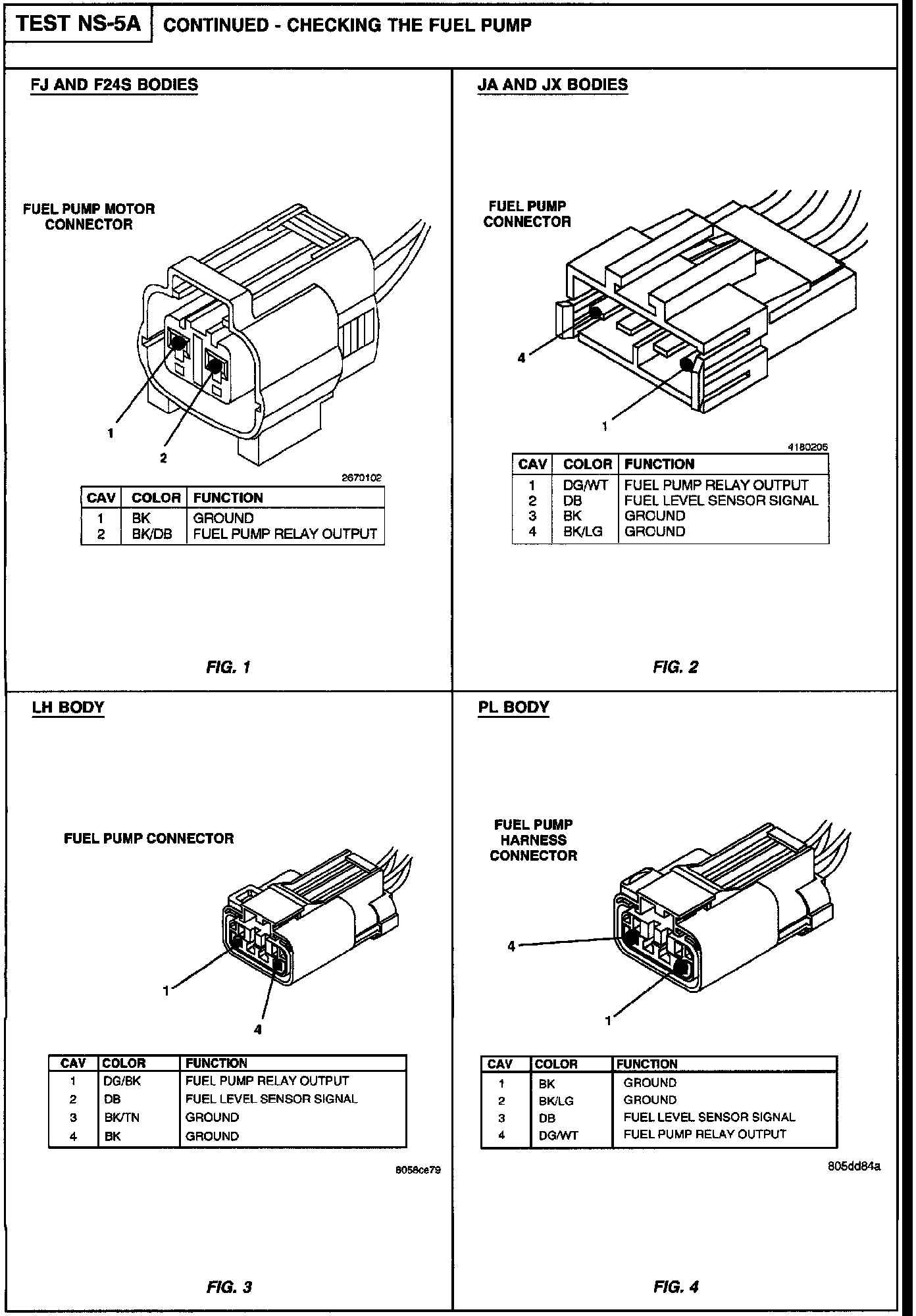

Related Images:

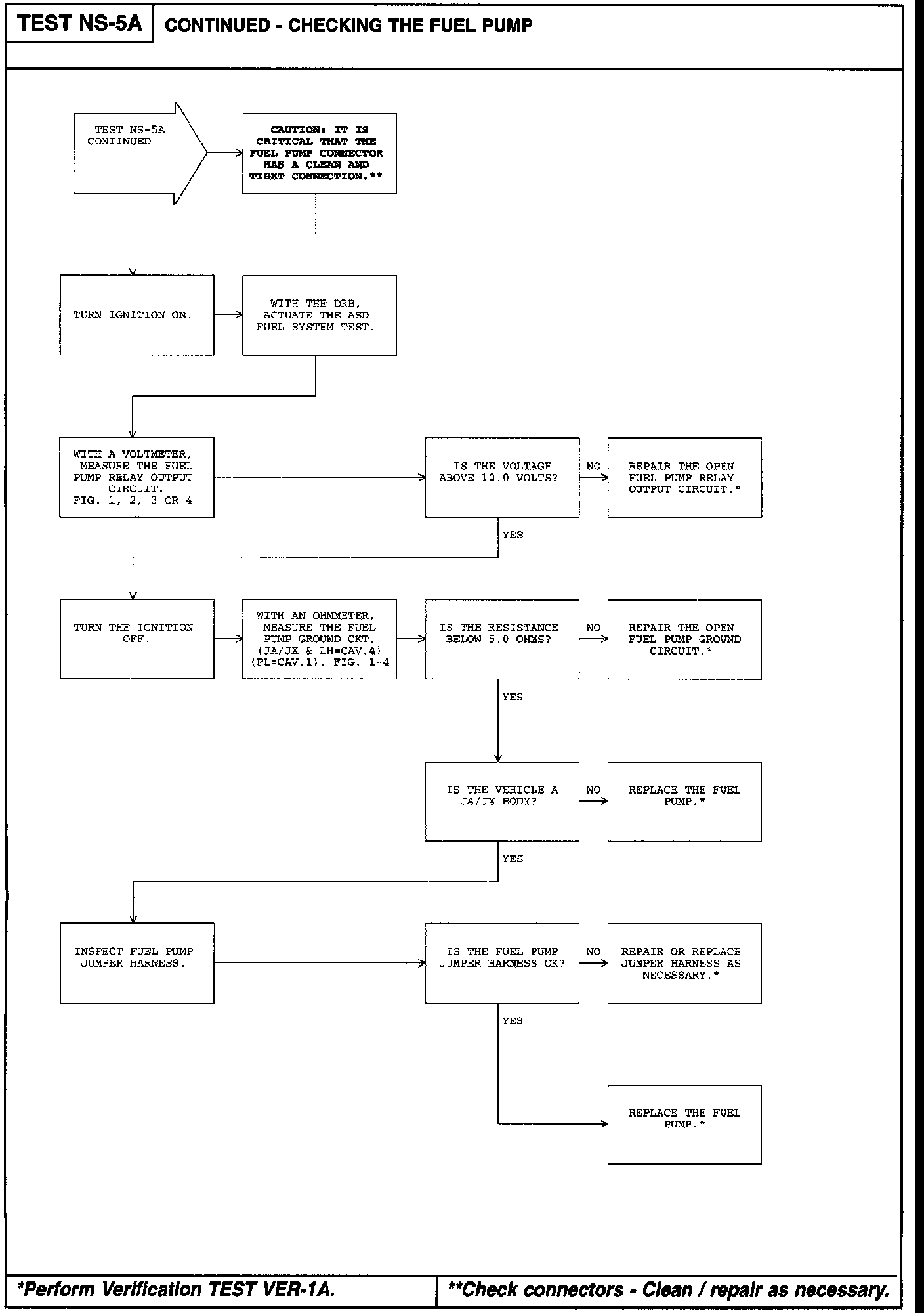

Flow Chart:
