Wiring Diagrams

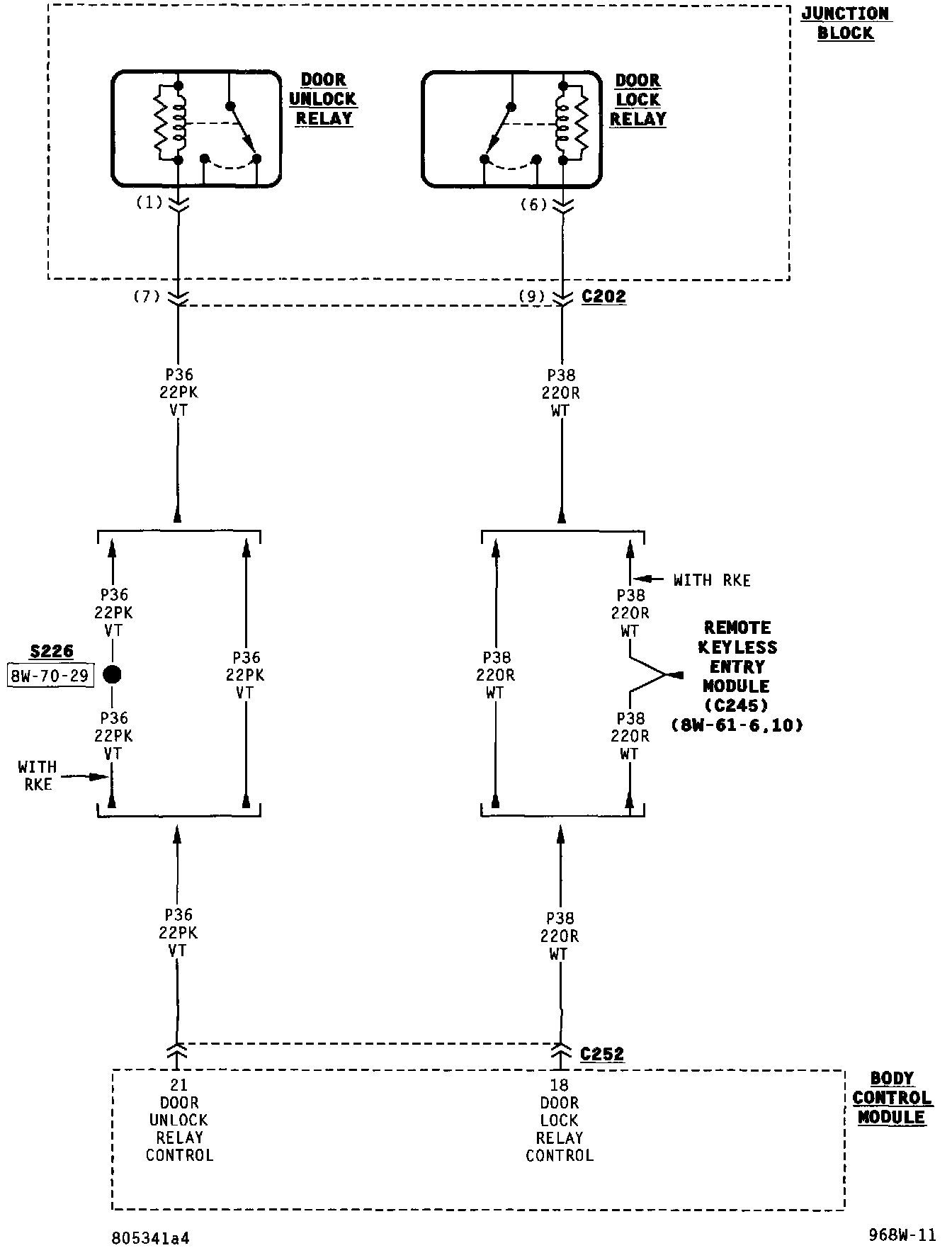

Body Control Module (Part 1 Of 13):

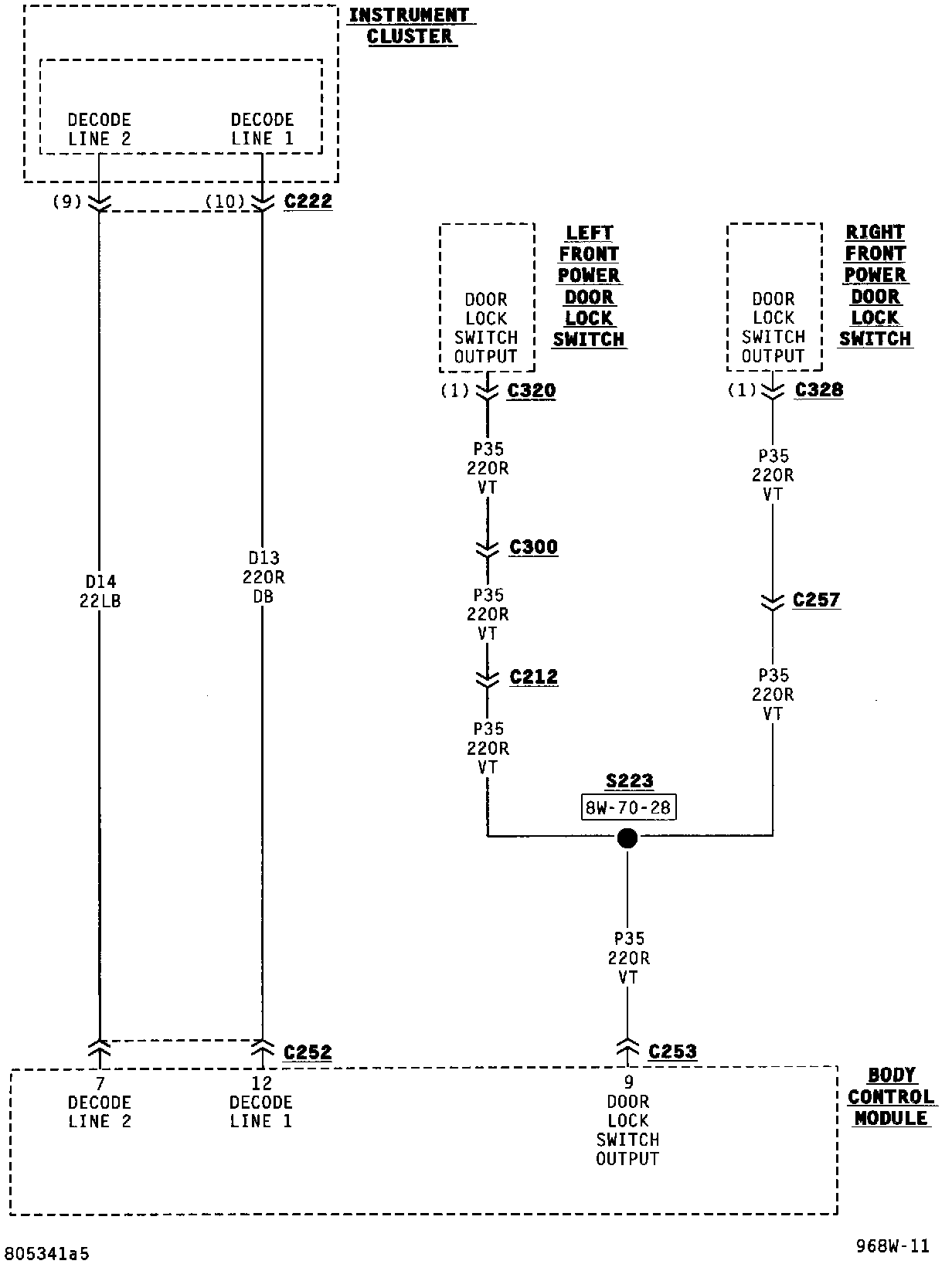

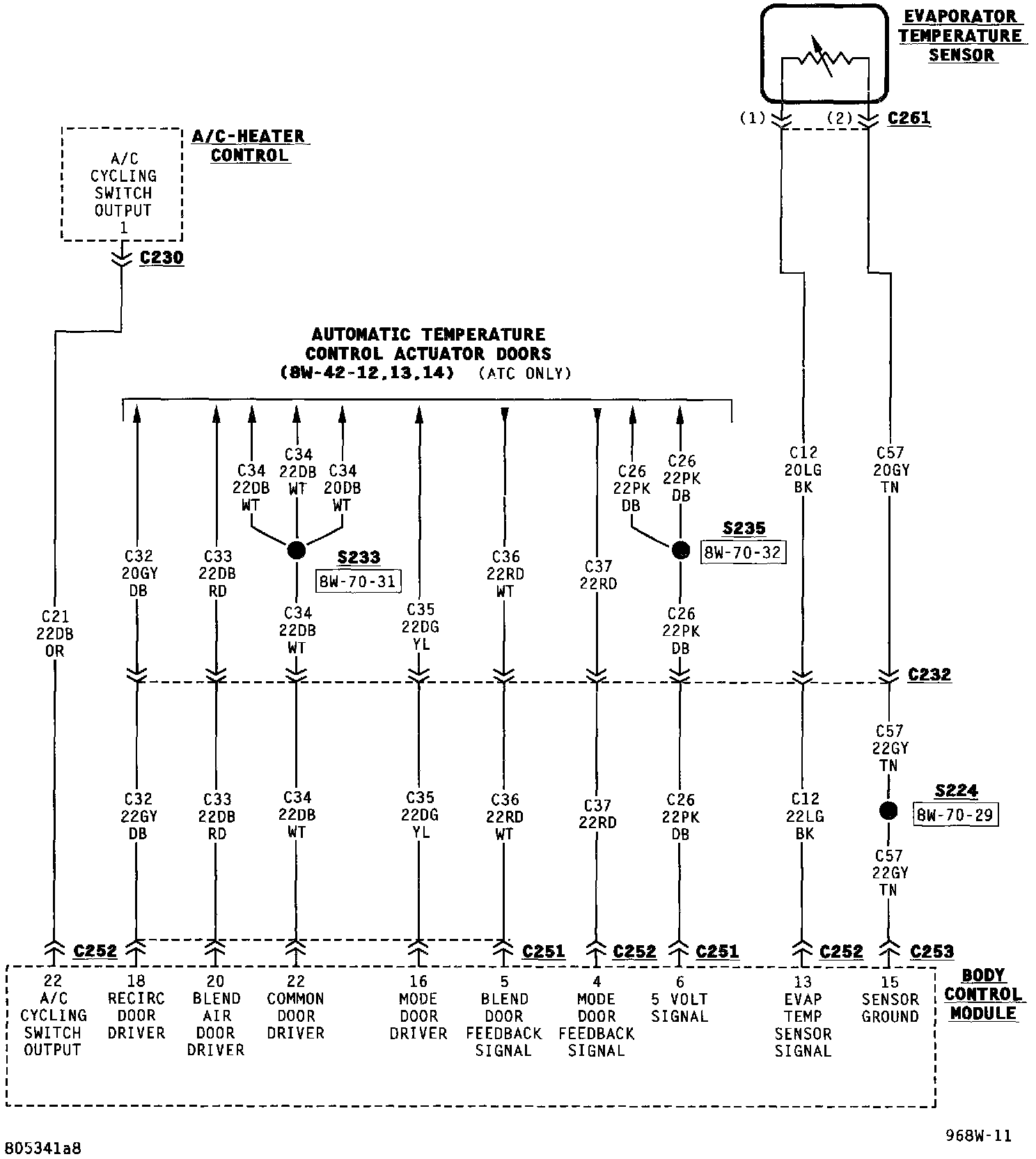

Body Control Module (Part 2 Of 13):

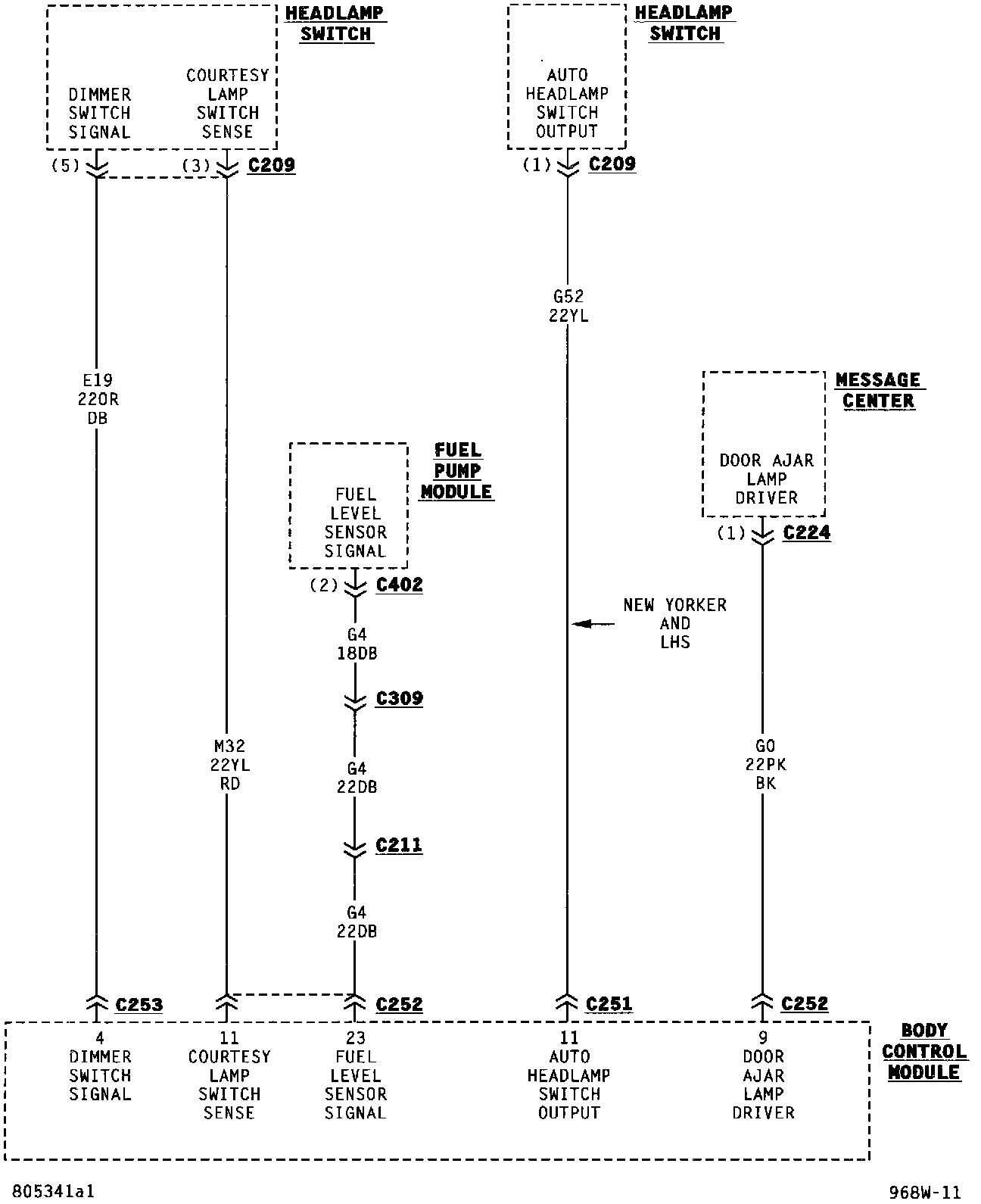

Body Control Module (Part 3 Of 13):

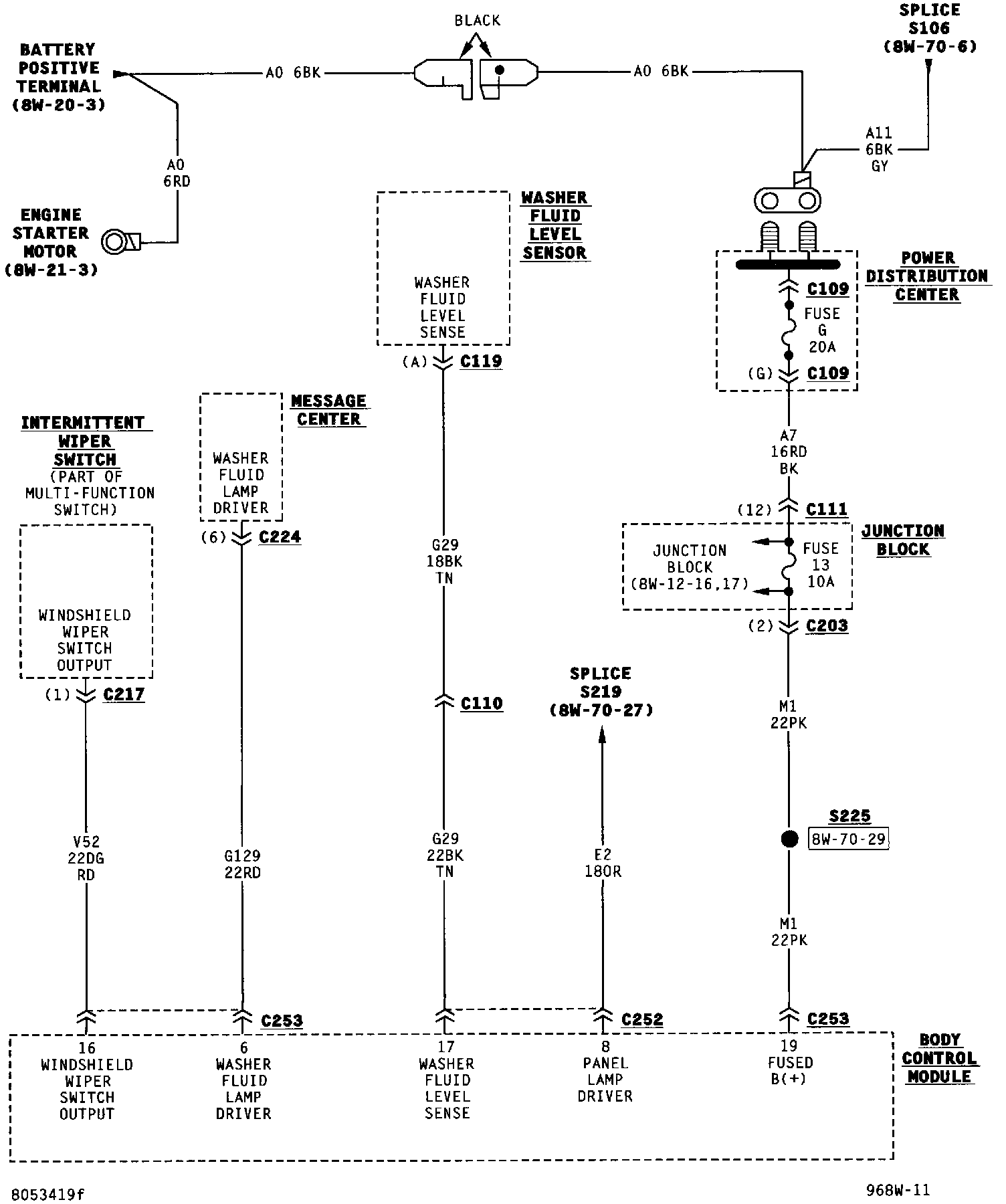

Body Control Module (Part 4 Of 13):

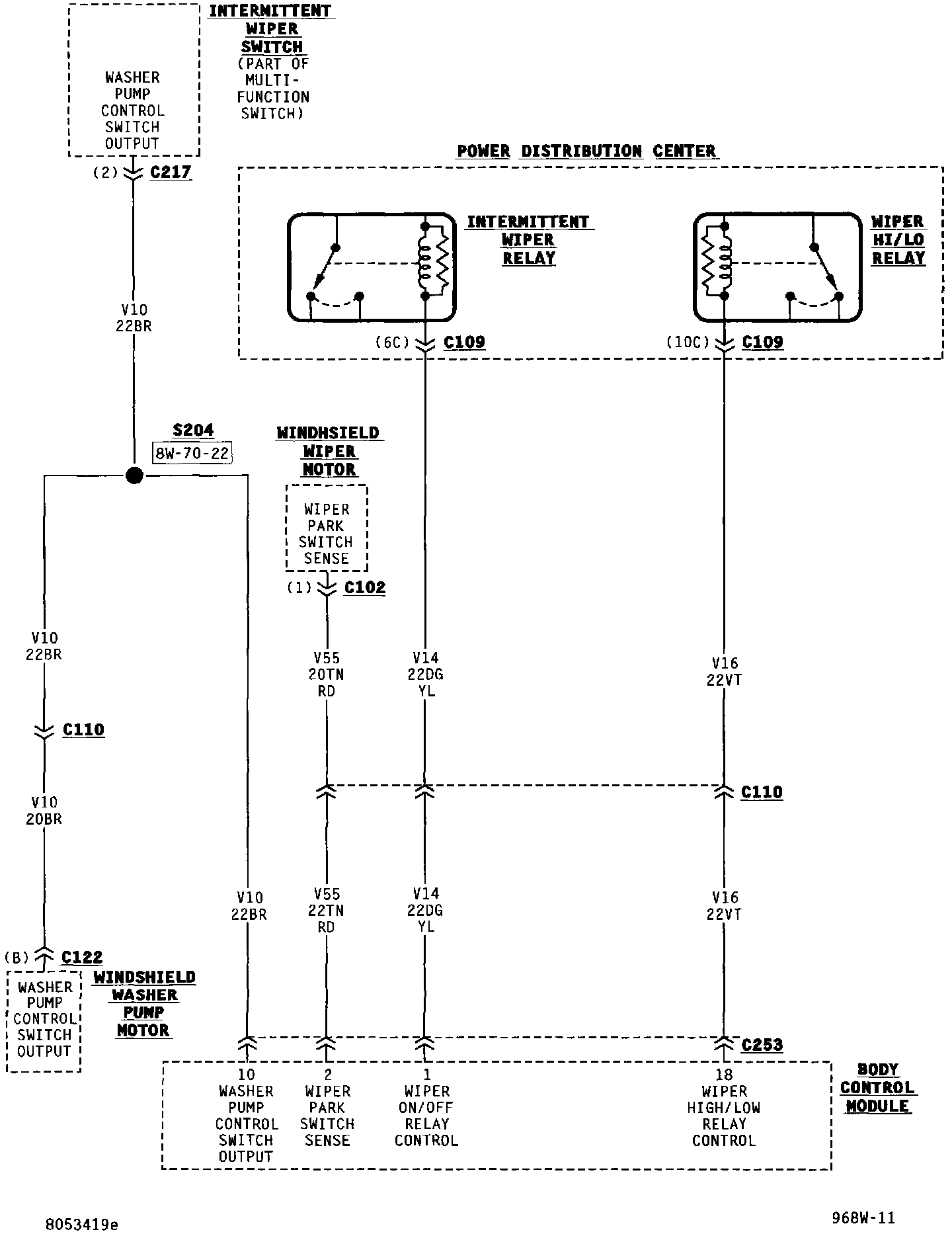

Body Control Module (Part 5 Of 13):

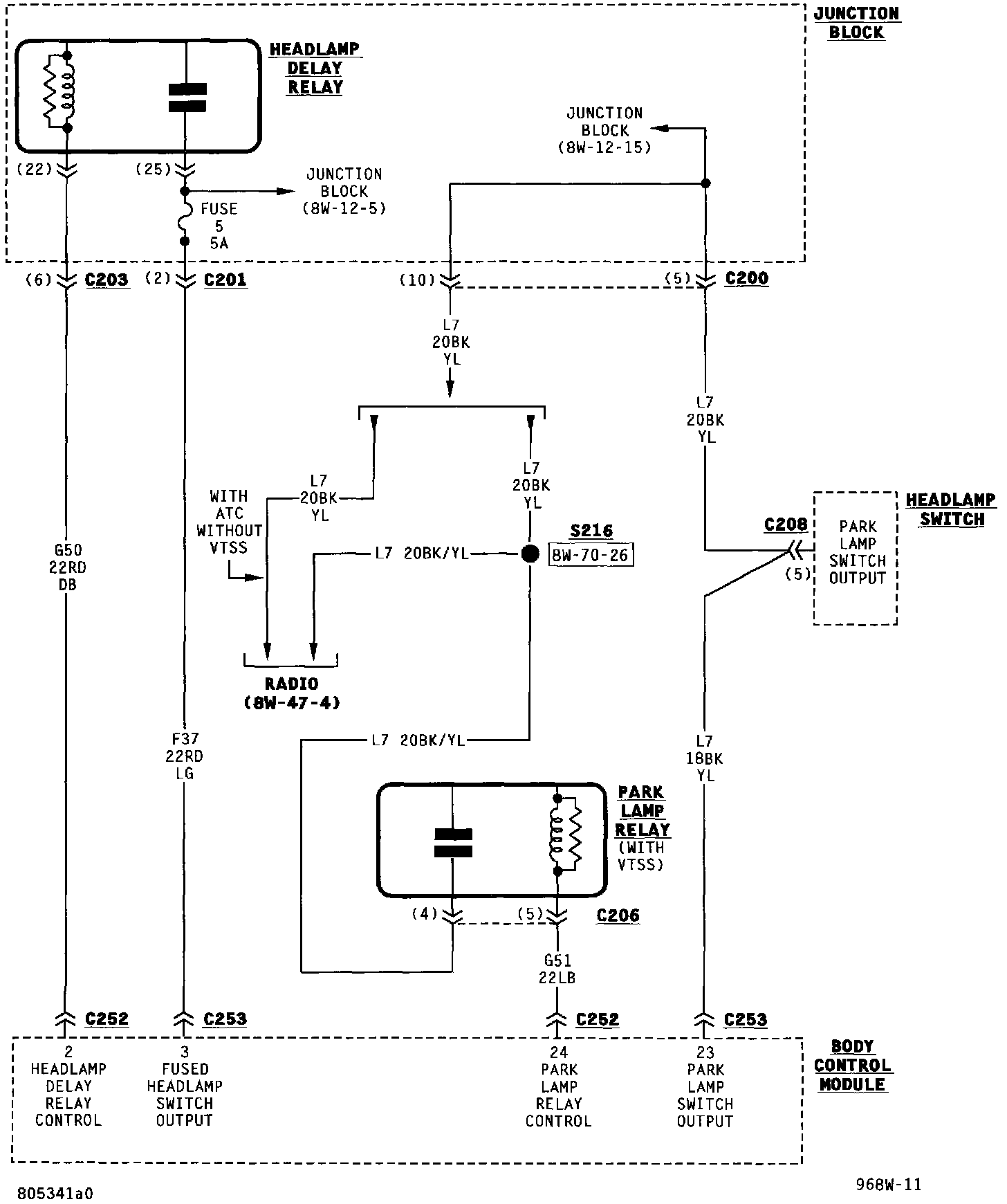

Body Control Module (Part 6 Of 13):

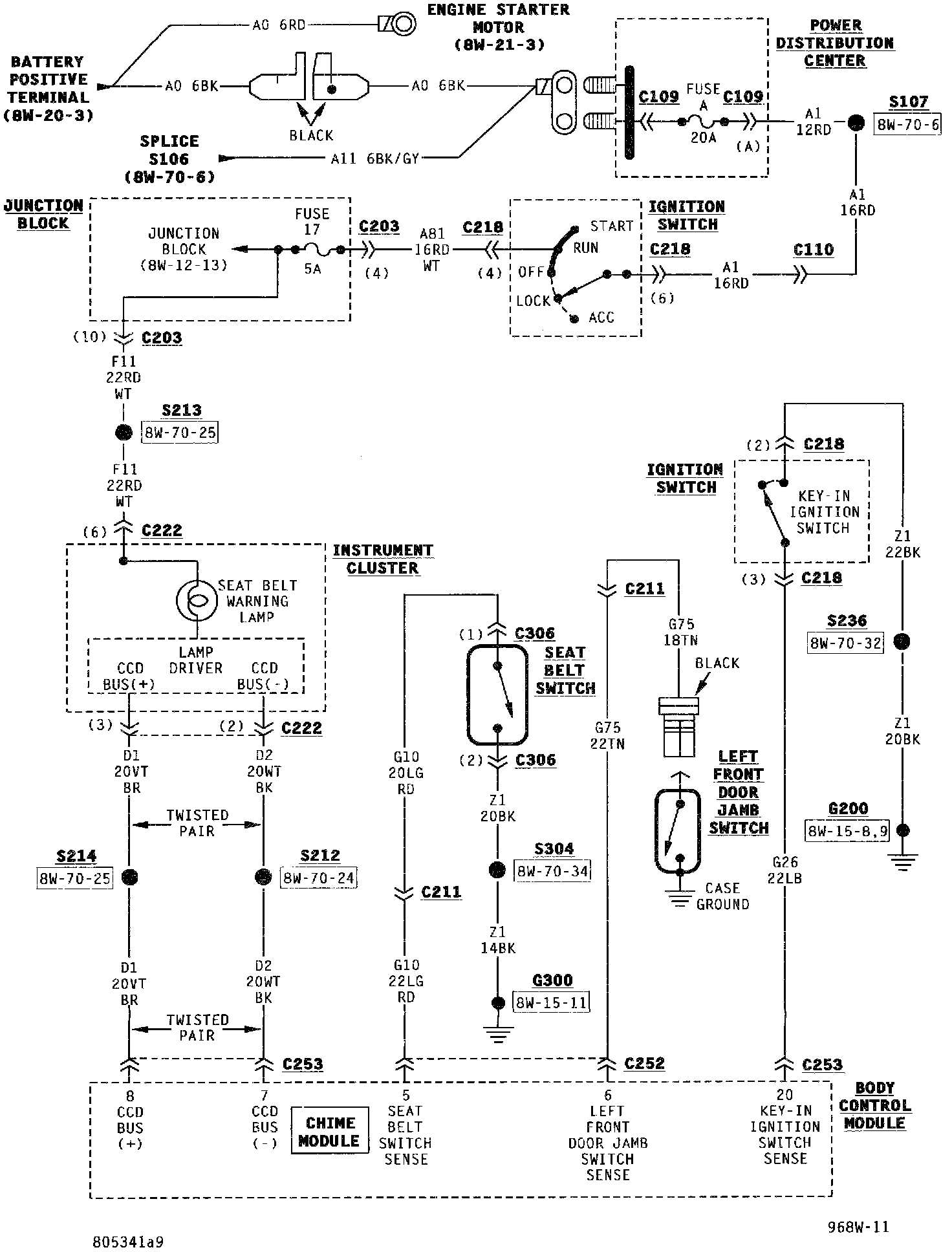

Body Control Module (Part 7 Of 13):

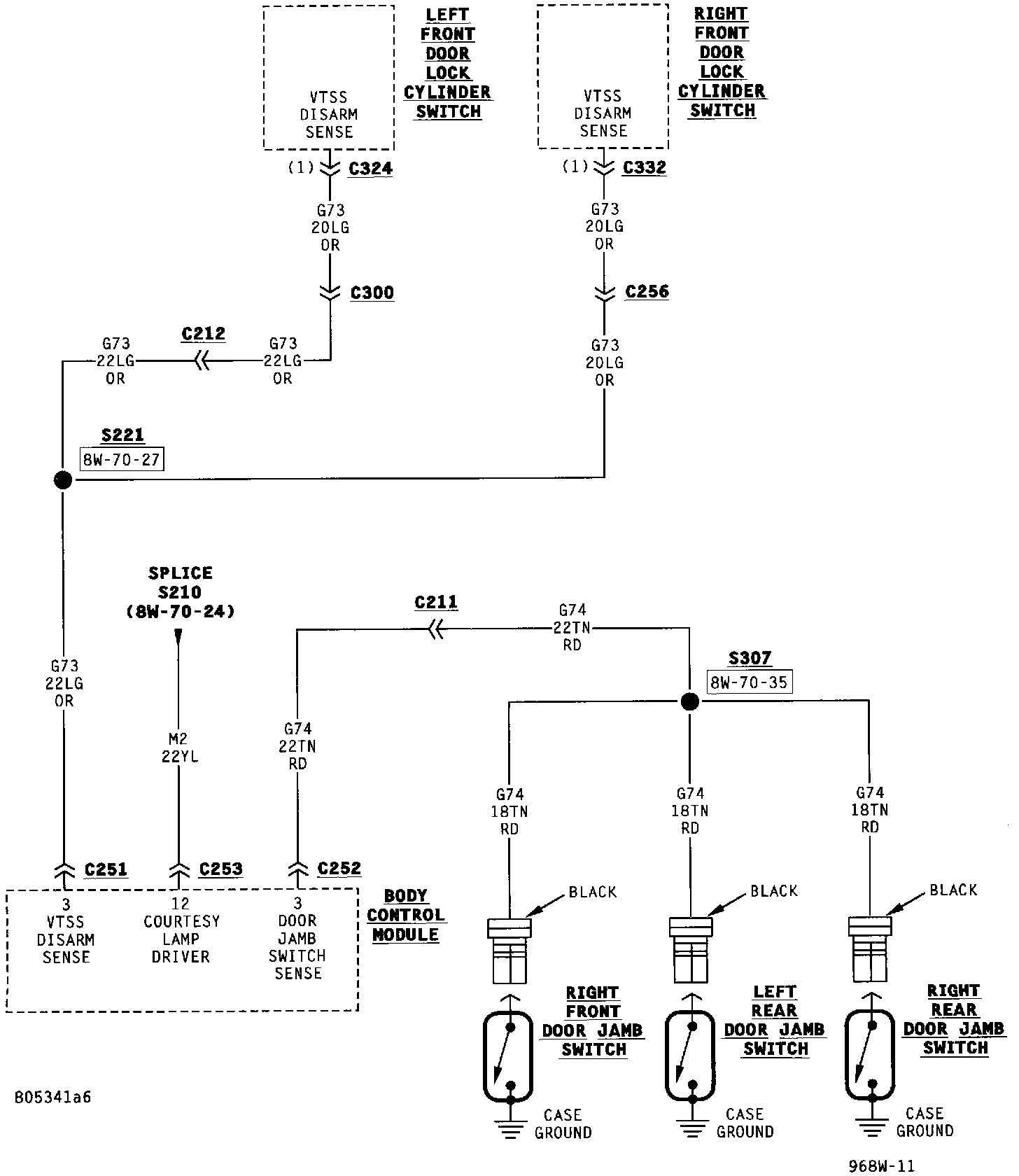

Body Control Module (Part 8 Of 13):

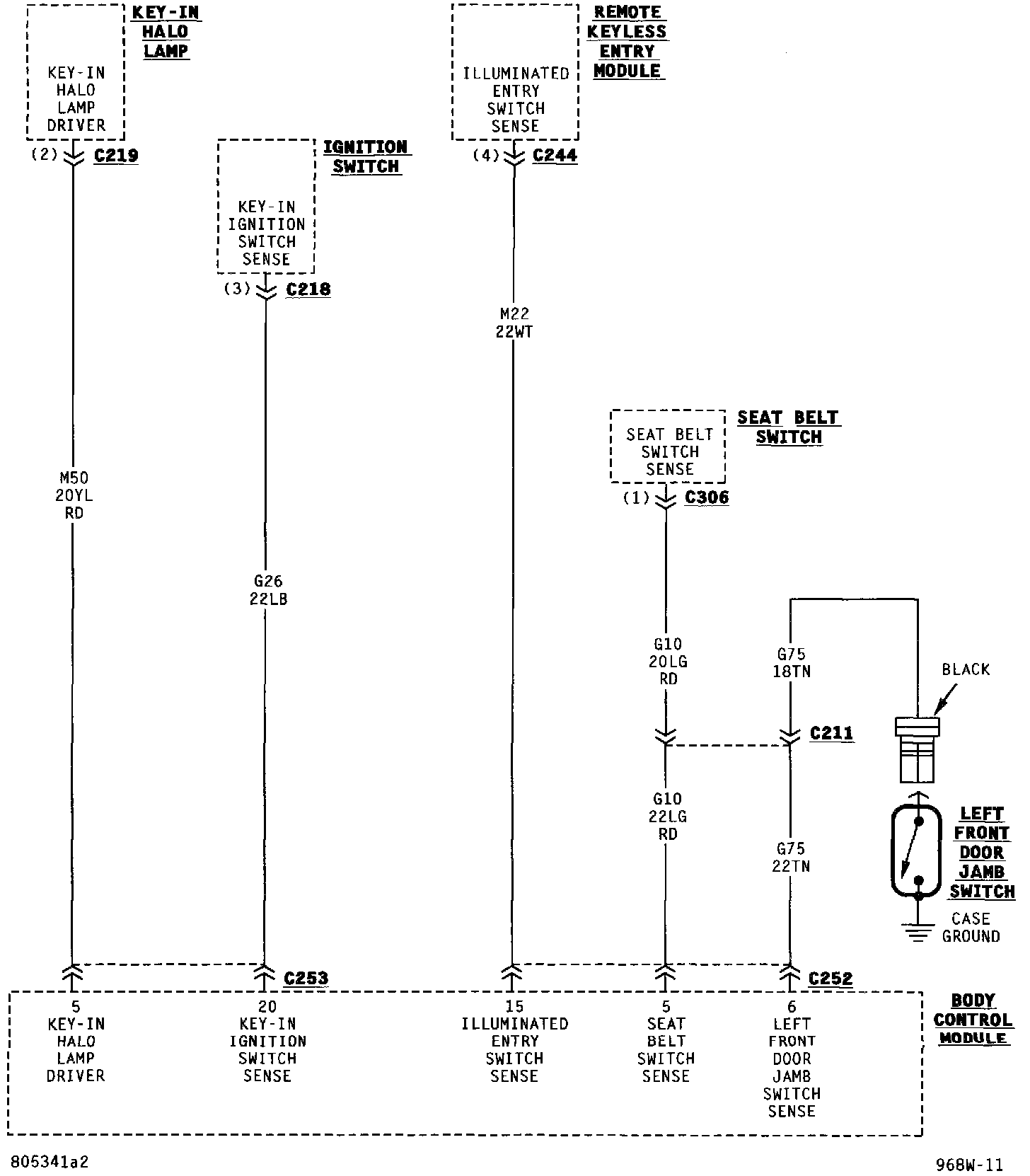

Body Control Module (Part 9 Of 13):

Body Control Module (Part 10 Of 13):

Body Control Module (Part 11 Of 13):

Body Control Module (Part 12 Of 13):

Body Control Module (Part 13 Of 13):

NOTE: To view sheets referred to in these diagrams, see Diagram Information and Instructions/Complete Body and Chassis Diagrams.
