Engine Controls - PCM Wiring Update

NUMBER: 26-05-98

GROUP: Miscellaneous

DATE: May, 1998

REVISIONS ARE HIGHLIGHTED WITH BLACK BARS IN THE MARGIN

Models:
1996 Concorde, Vision, Intrepid, New Yorker, LHS Service Manual - Publication 81-270-6140

DESCRIPTION OF CHANGES

Revision to the Power Train Control Module wiring diagrams

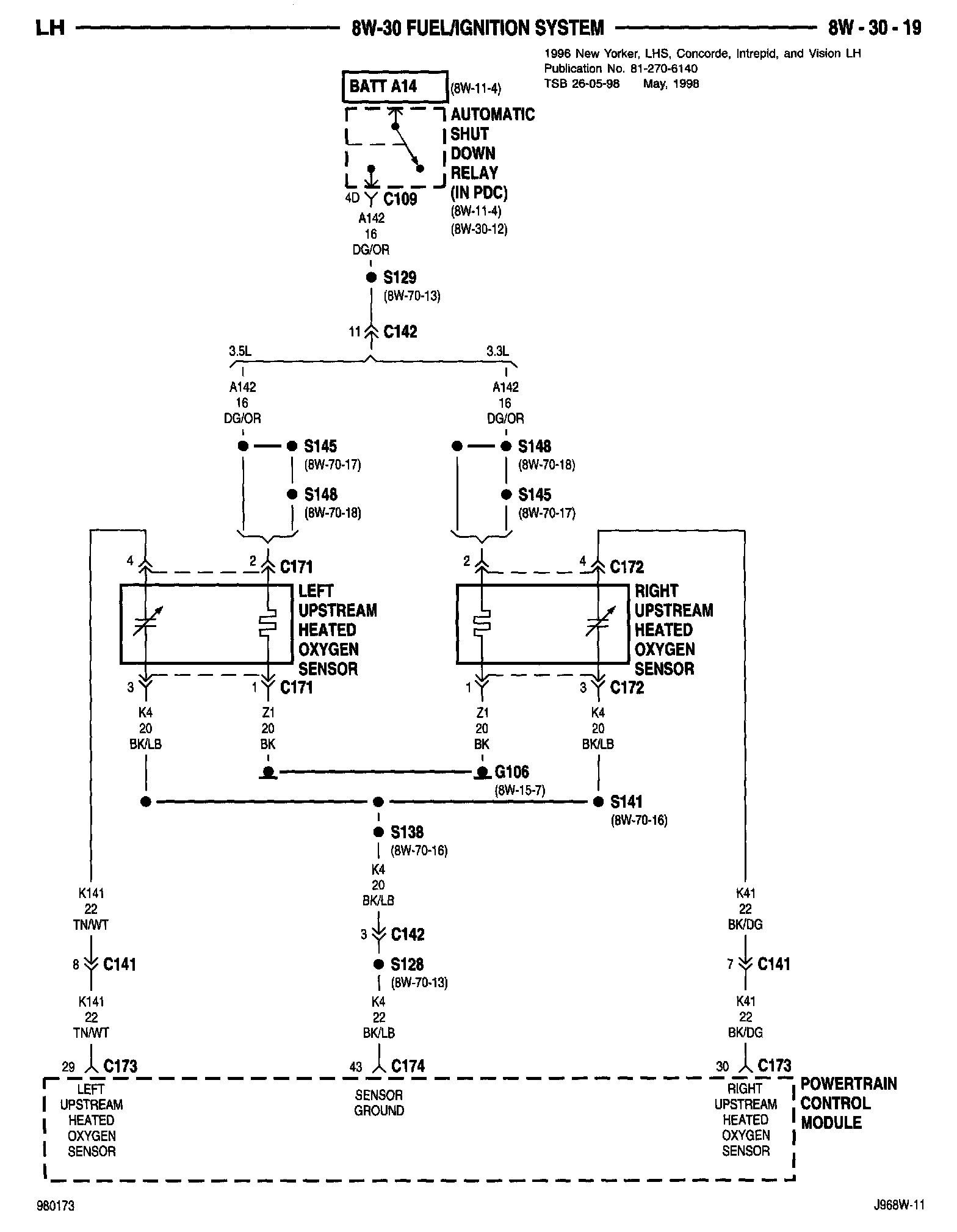

8W-30-19

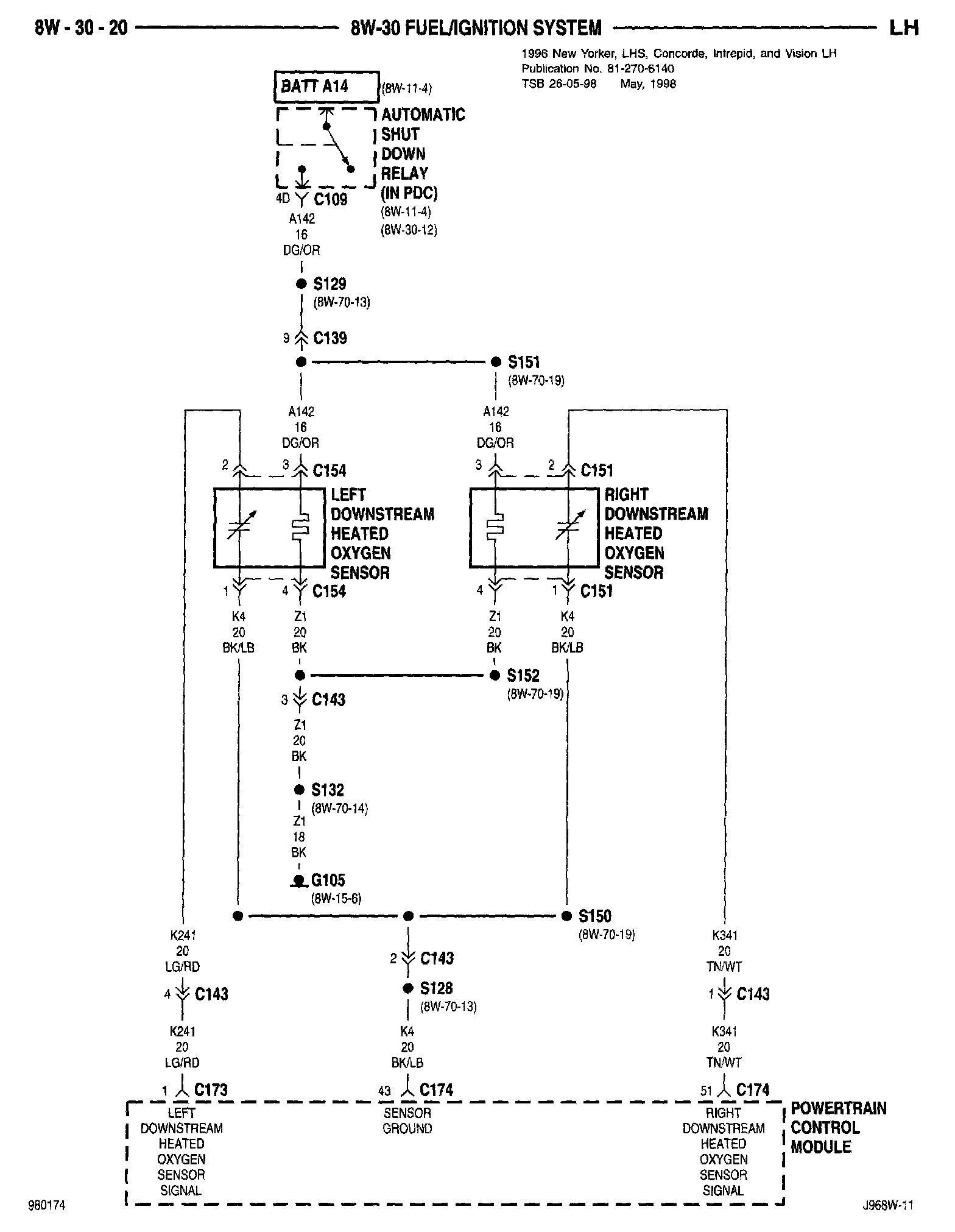

8W-30-20

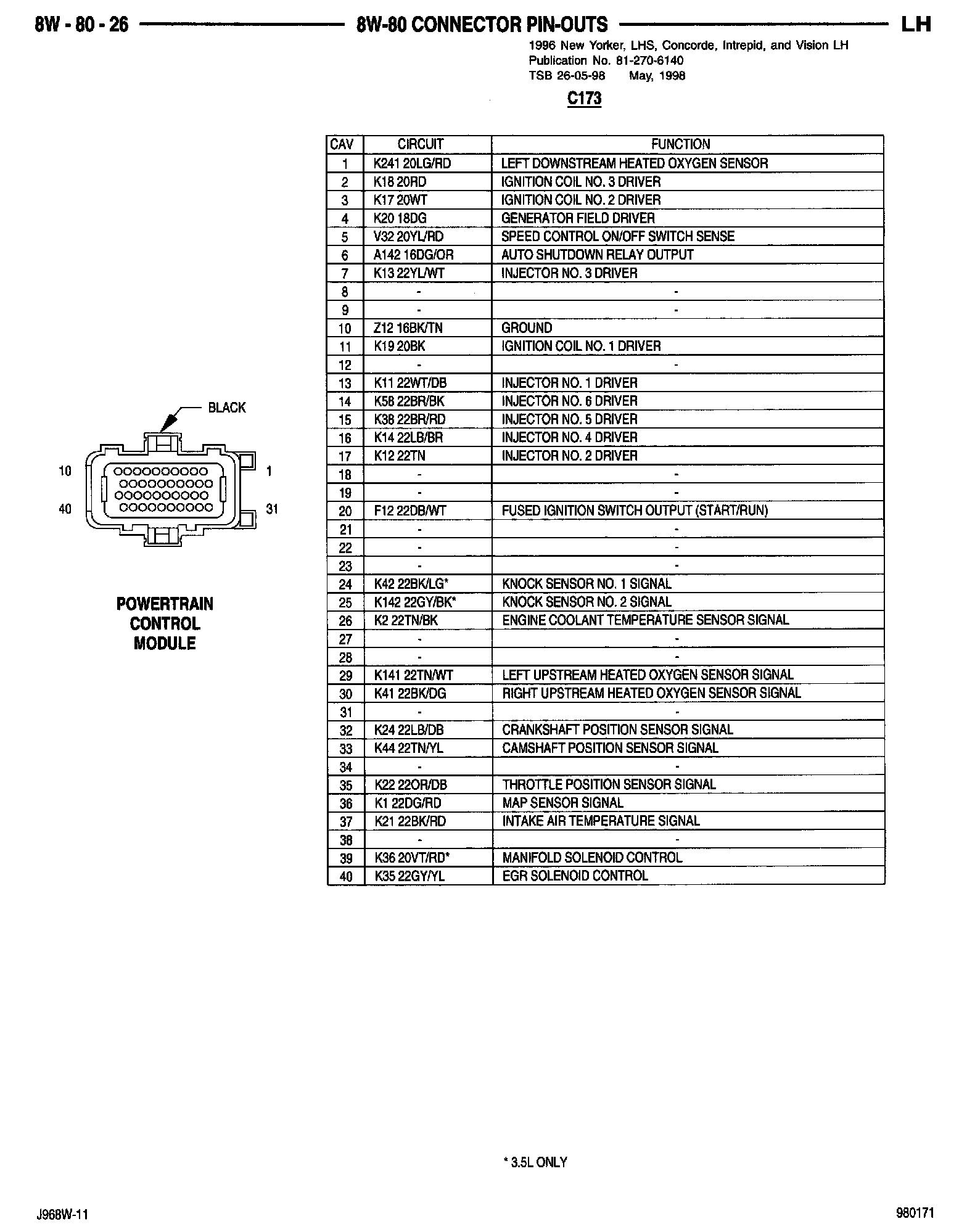

8W-80-26

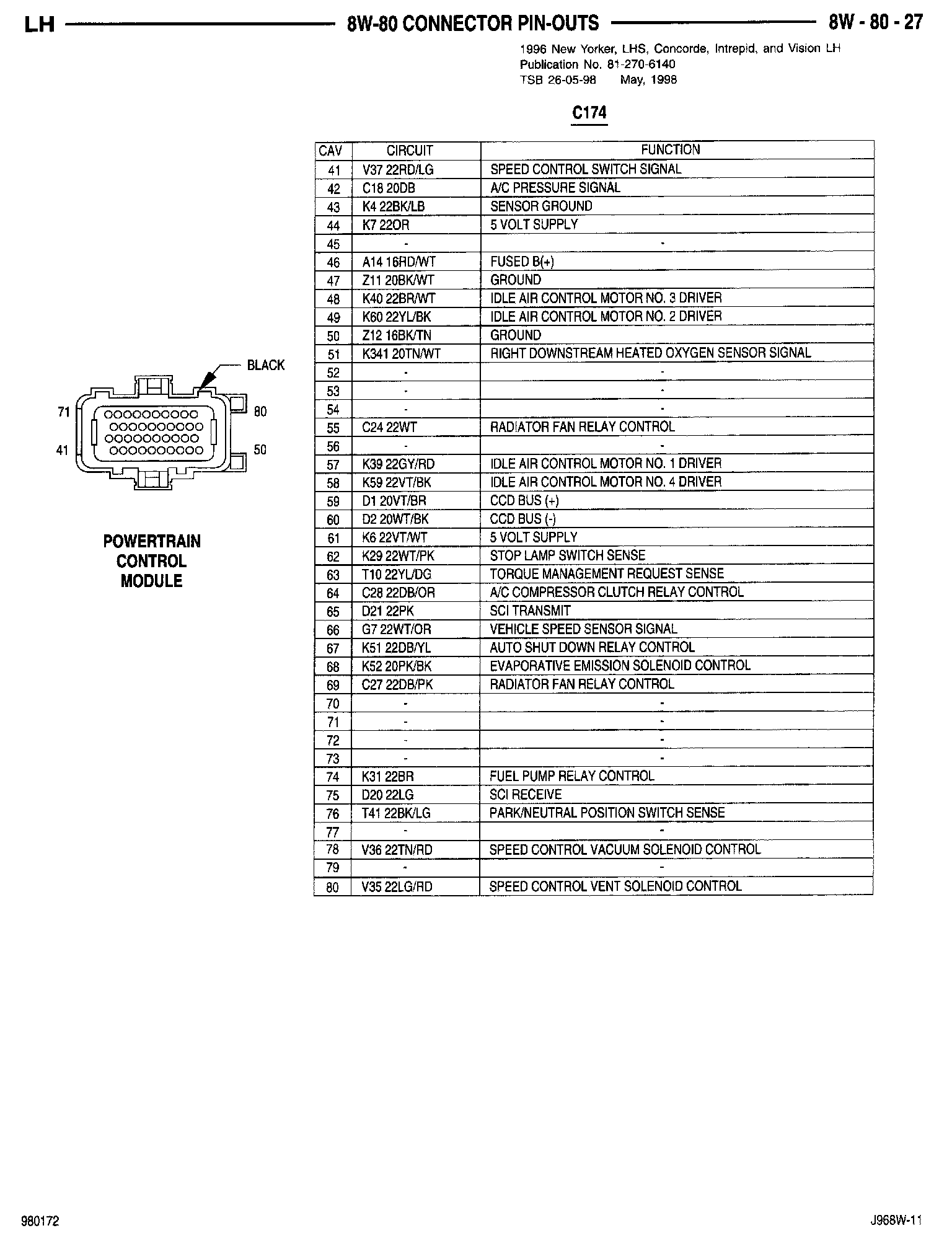

8W-80-27
