Instrument Cluster Bulb Replacement

For removal and installation procedures of the instrument cluster and bezel refer to the following procedures.

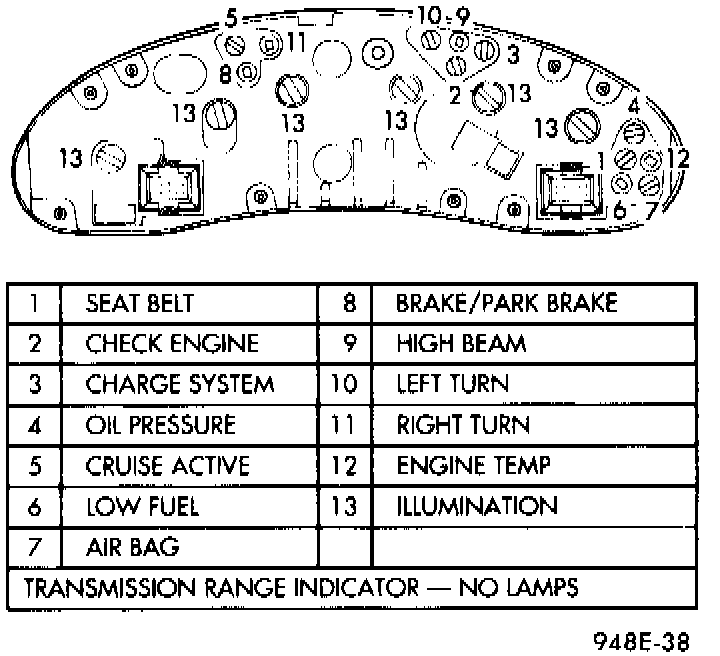

Cluster Lamp Location - Type A And C:

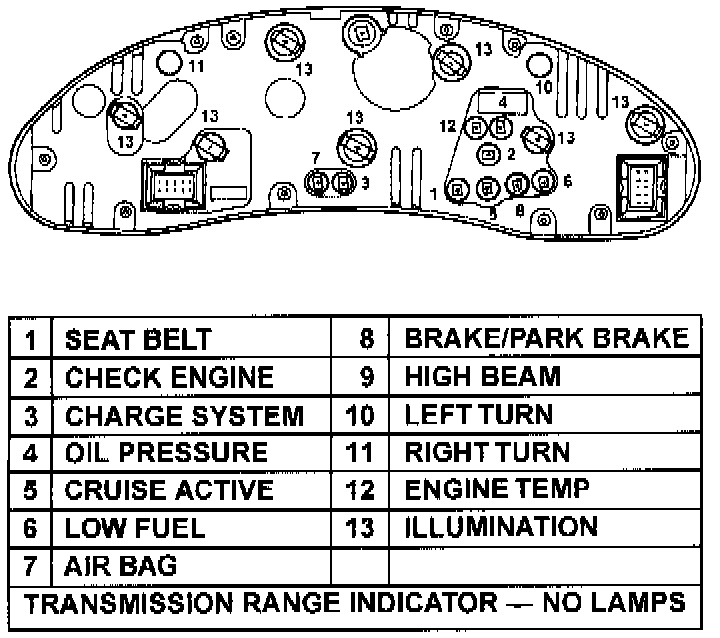

Cluster Lamp Location - Type B:

Refer for appropriate lamp locations.
