Heater Core: Service and Repair

NOTE: The unit housing must be removed from the vehicle to service the heater core. Refer to: Heating and Air Conditioning, Housing Assembly HVAC, Service and Repair, Heater-A/C Housing Removal and Installation, Heater-A/C Housing Removal and Installation


REMOVAL

1. Disconnect battery.

2. Remove unit housing from vehicle. Refer to: Heating and Air Conditioning, Housing Assembly HVAC, Service and Repair, Heater-A/C Housing Removal and Installation, Heater-A/C Housing Removal and Installation

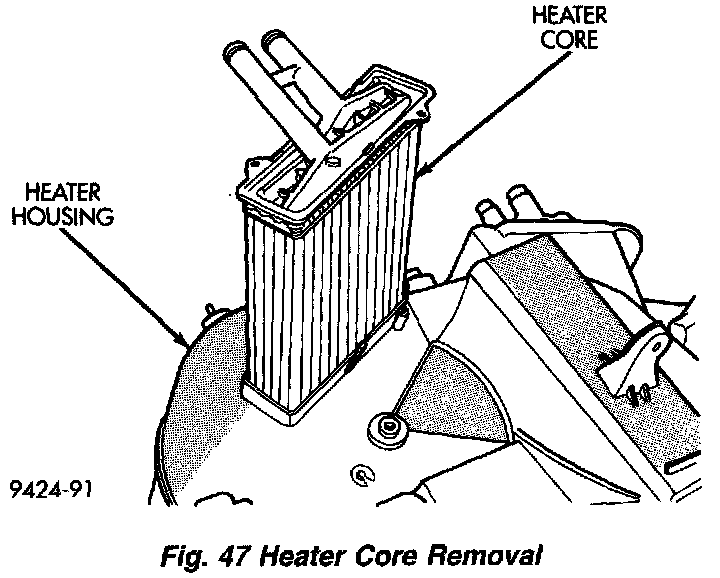

Heater Core Removal:

3. With the unit housing out of the vehicle, pull back heater core retaining clips. Then pull the heater core out of the heater housing.

INSTALLATION

1. Push new heater core into the unit housing.

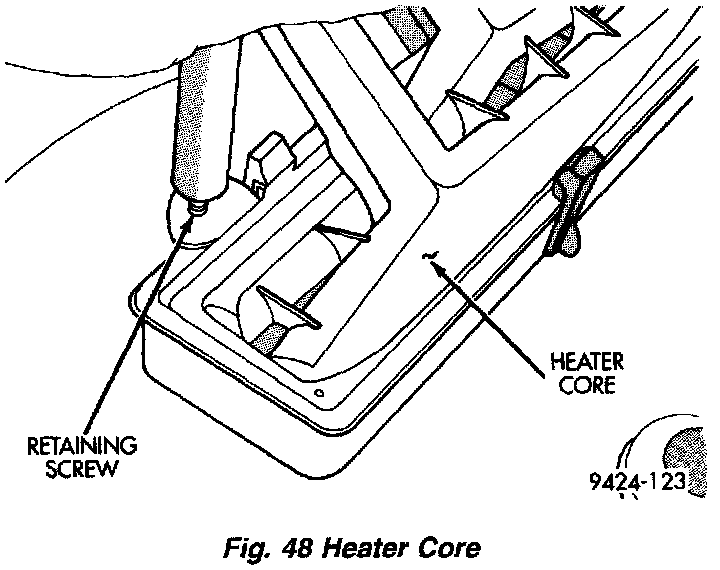

Heater Core:

2. Fasten heater core to unit housing with screws provided with new heater core.

3. Install unit housing into vehicle.

4. Reconnect battery.
