With Automatic Temperature Control (ATC)

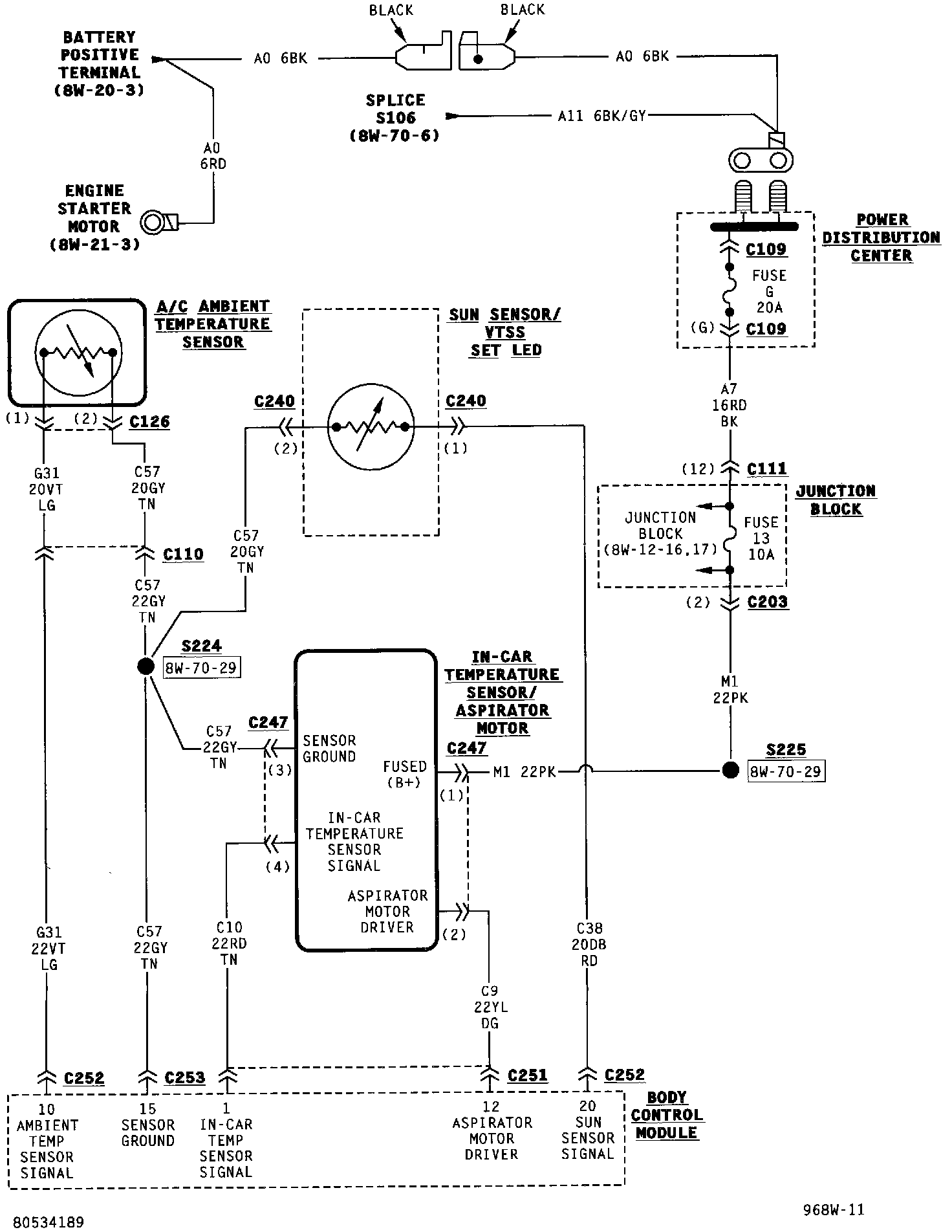

Air Conditioning /Heater With Automatic Temperature Control:




Air Conditioning /Heater With Automatic Temperature Control:

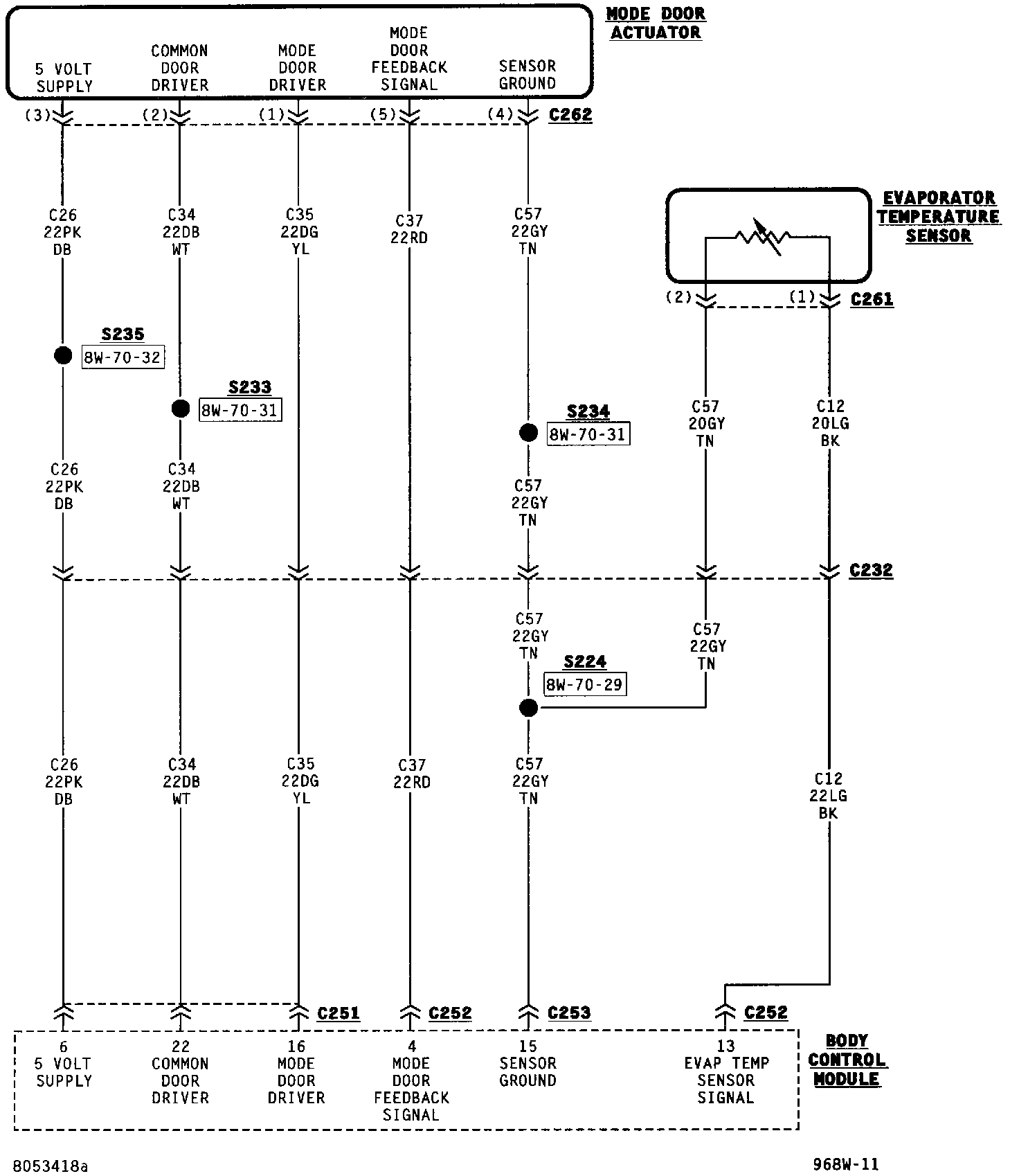

Air Conditioning /Heater With Automatic Temperature Control:

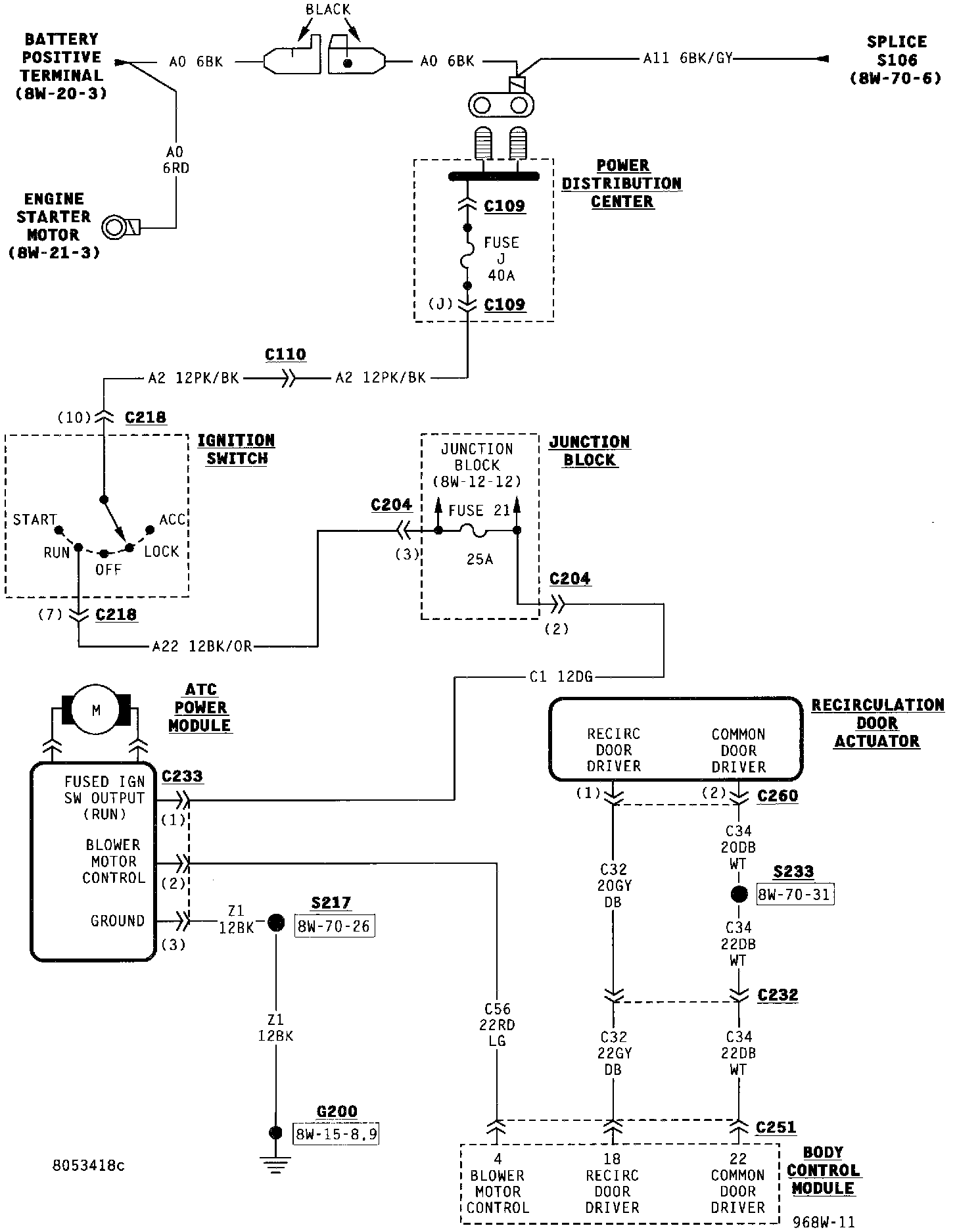

Air Conditioning /Heater With Automatic Temperature Control:

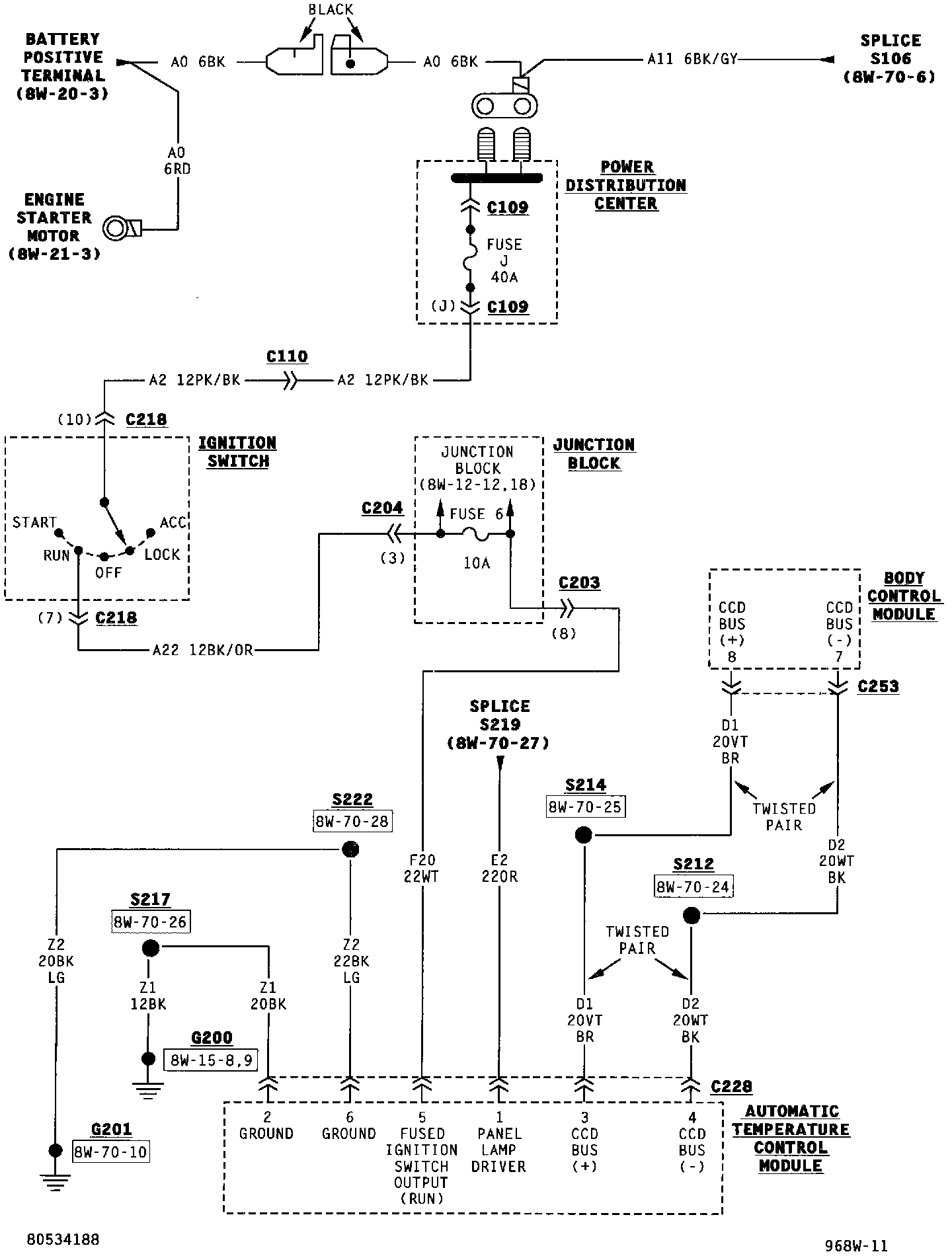

Air Conditioning /Heater With Automatic Temperature Control:

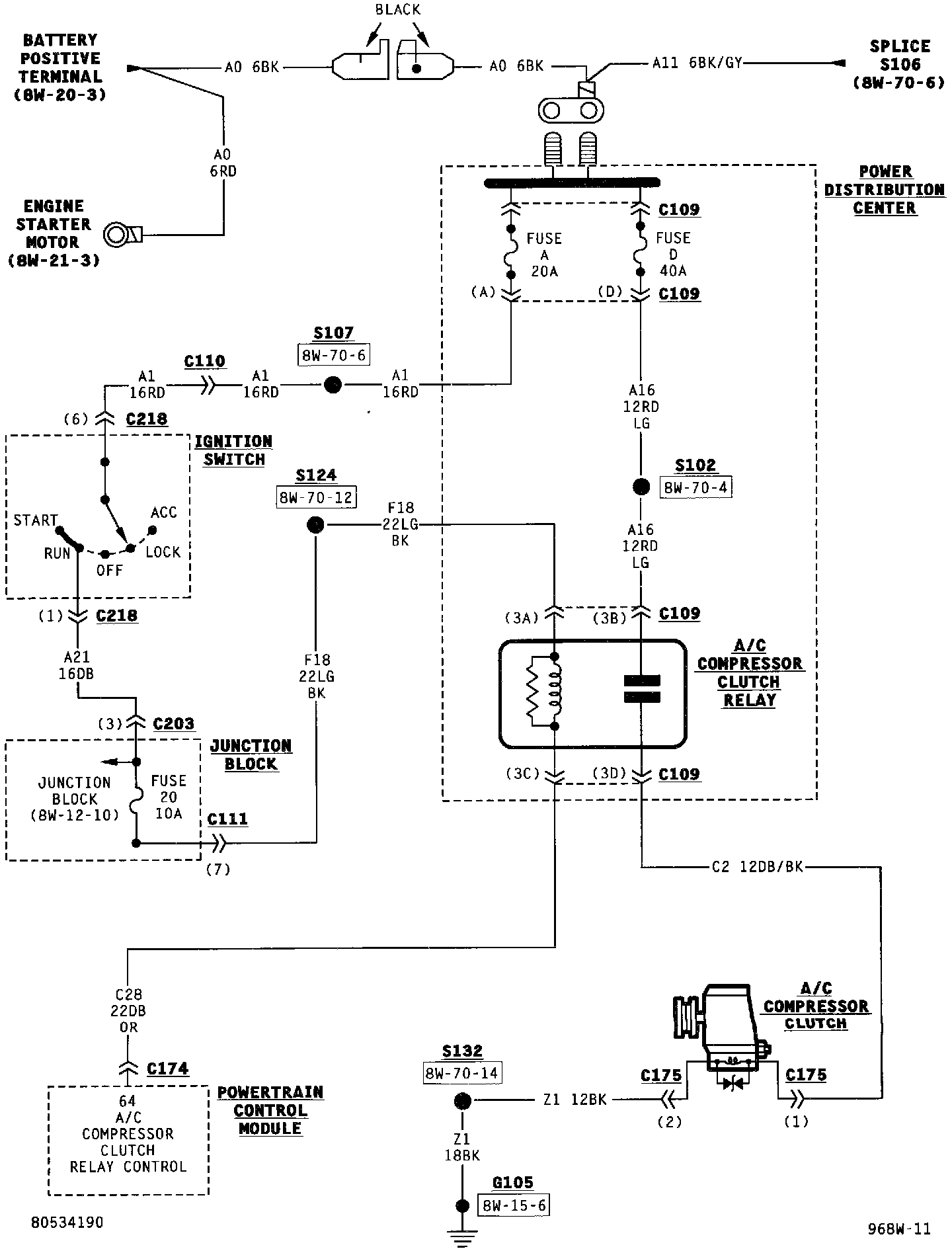

Air Conditioning /Heater With Automatic Temperature Control:

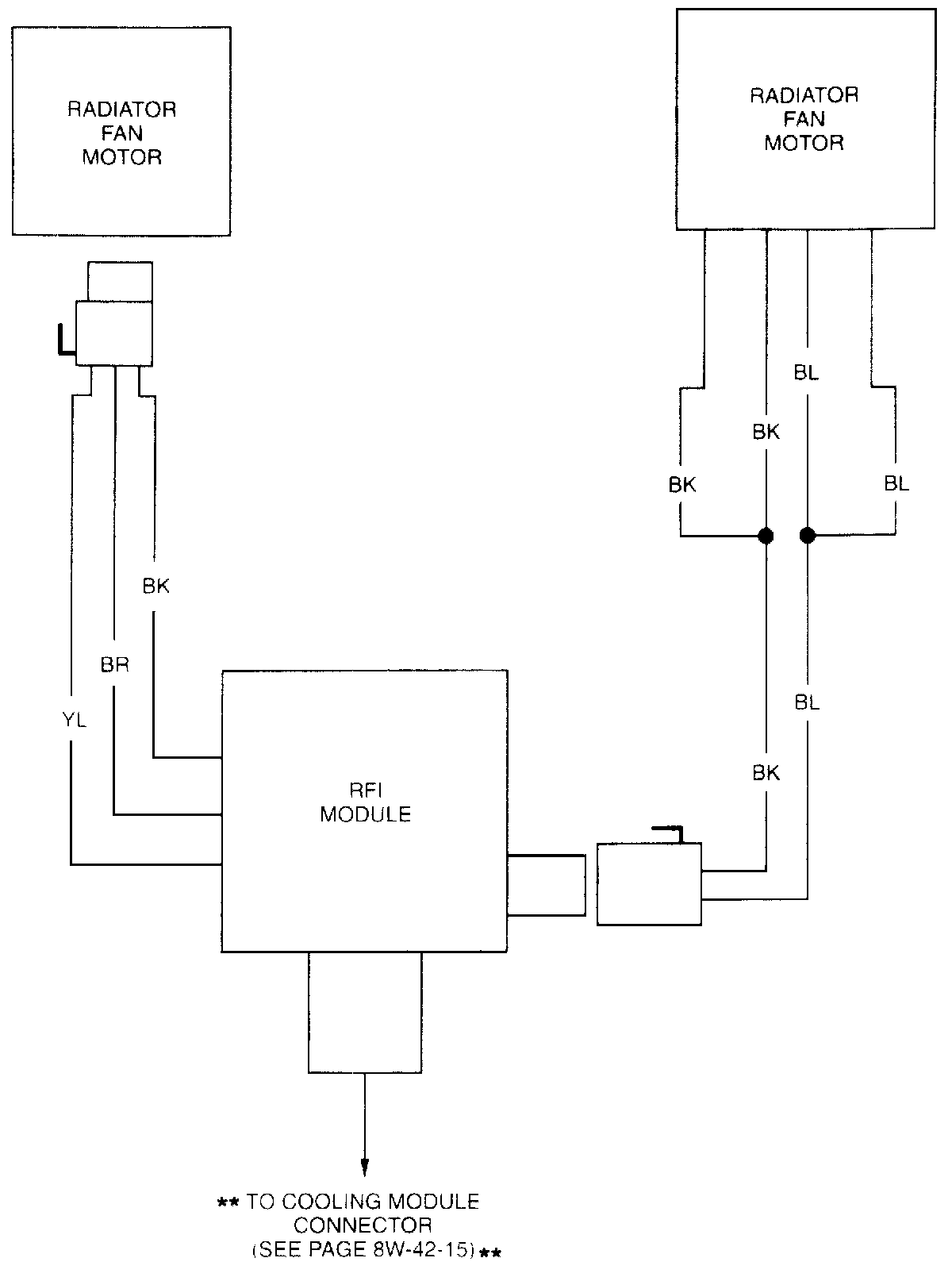

With Automatic Temperature Control:

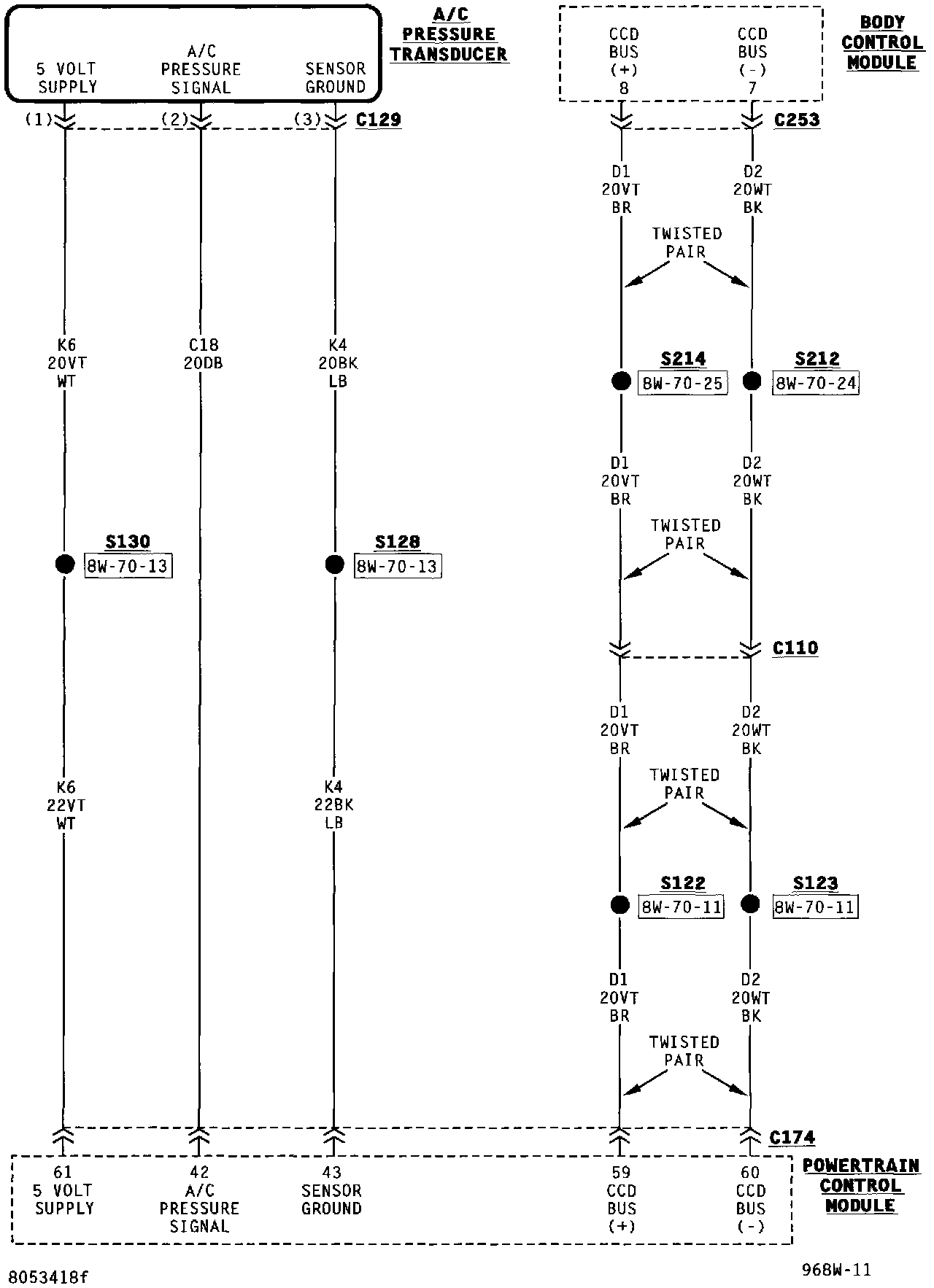

Air Conditioning /Heater With Automatic Temperature Control:

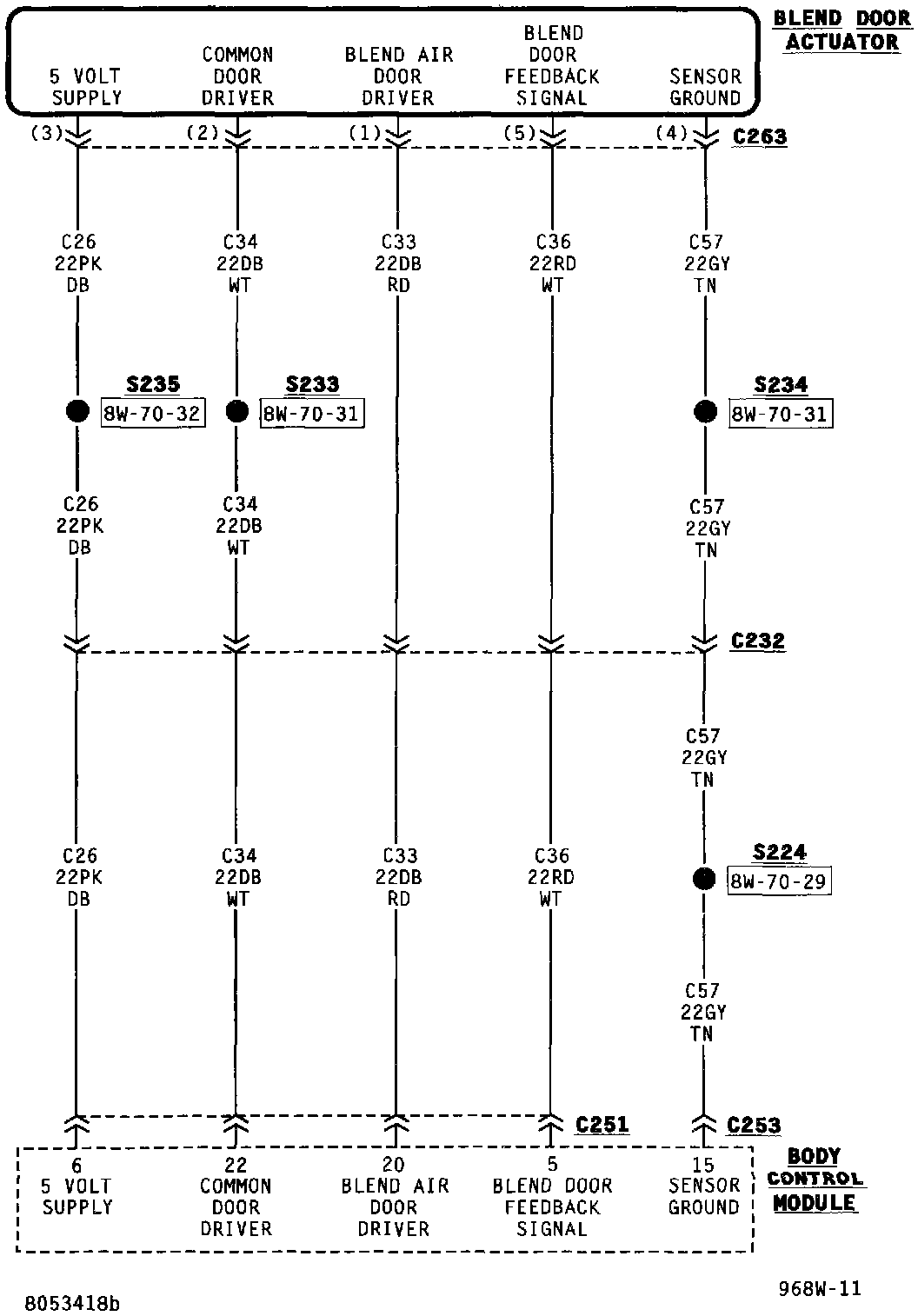

Air Conditioning /Heater With Automatic Temperature Control:




Air Conditioning /Heater With Automatic Temperature Control:






NOTE: To view sheets referred to in these diagrams, see Diagram Information and Instructions/Complete Body and Chassis Diagrams.
