Front Mount

Engine Mount (Typical):

FRONT/LEFT-HAND ENGINE MOUNT

1. Remove insulator attaching nuts from top of mounting bracket.
2. Raise and support vehicle.
3. Support engine using a suitable jack stand and a block of wood across full width of oil pan.

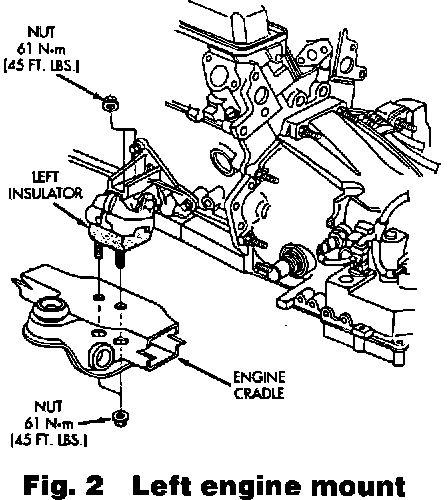

4. Remove lower attaching nuts from bottom of insulator to frame, Fig. 2.
5. Raise engine enough to remove insulator.
6. Reverse procedure to install, tightening mount to specification.
